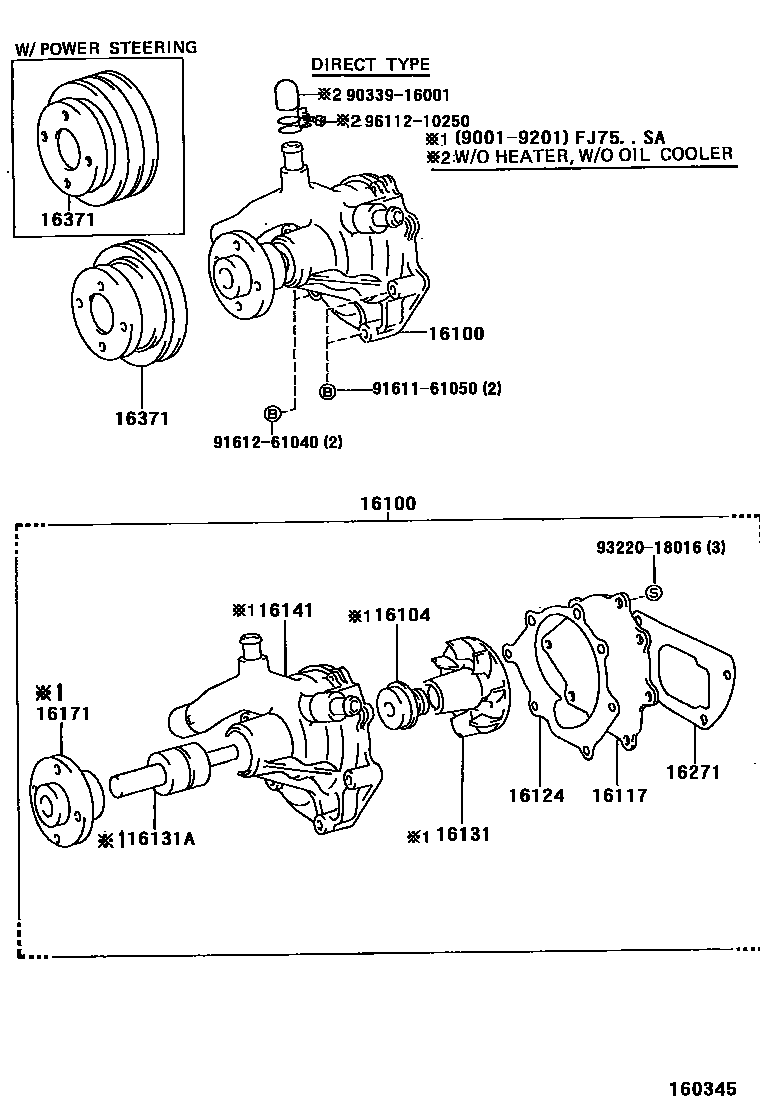

WATER PUMP

0001 1 0002 1W/FLUID COUPLING 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1

16100PUMP ASSY, ENGINE WATER

main16100-19235i1PZ..PZJ7#199001-200701

main16100-39346i22R..RJ7#199001-199604

main16100-59155i2LT,3L..LJ7#199001-199604

sub16100-59255

main16100-69235i3F..FJ70,75..GEN..CBU199001-199208

main16100-69245i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN199001-199208

VENEZUELA CKD SPEC, W(ENGINE OIL COOLER)

main16100-69245i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN199001-199201

W(ENGINE OIL COOLER)

main16100-69255i3F..FJ70,75..GEN..CBU199001-199208

W(D450 X 8 2STEP 1000CST & OIL COOLER)

main16100-69255i3F..FJ75..GEN..IV199201-199208

VENEZUELA SPEC

main16100-69255i3F..FJ7#..GCC;3F..FJ70..4FC199001-199201

W(ENGINE OIL COOLER)

main16100-69255i3F..FJ7#..GCC;3F..FJ70..4FC199001-199201

VENEZUELA CKD SPEC & W(450X8 2STEP1000CST)

main16100-69265i3F..FJ70..4FC;3F..FJ7#..ARL,GCC199001-199208

W(D450 X 8 2STEP 1000CST FAN & COUPLING)

main16100-69285i3F..FJ75..SA199001-199201

sub16100-69127

main16100-69325i1FZ#..FZJ7#199201-199801

main16100-69355i1KZT..KZJ7#199305-199604

sub16100-69356

main16100-69415i1FZFE..FZJ71,74,78,79199801-200808

16104SEAL SET, WATER PUMP

main16104-15020i3F..FJ75..SA199001-199201

16117PLATE, WATER PUMP

main16117-61110i3F..FJ7#199001-199208

16124GASKET, WATER PUMP COVER

main16124-35010i22R..RJ7#199001-199604

main16124-61110i3F..FJ75..SA199001-199002

sub16124-61250

main16124-61250i3F..FJ7#199001-199208

main16124-67010i1KZT..KZJ7#199305-199604

16131ROTOR, WATER PUMP

main16131-61110i3F..FJ75..SA199001-199201

16131ABEARING, WATER PUMP

main90369-30028i3F..FJ75..SA199001-199201

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i3F..FJ75..SA199001-199201

16171SEAT, WATER PUMP PULLEY

main16171-35010i22R..RJ70199001-199604

main16171-41170i2LT,3L..LJ7#199001-199604

main16171-56010i3F..FJ75..SA199001-199201

16271GASKET, WATER PUMP

main16271-17010i1HZ..HZJ75..SA199001-200701

main16271-54020i3L..LJ7#199001-199604

sub16271-54030

main16271-61020i3F..FJ7#199001-199208

main16271-66020i1FZFE..FZJ78,79..ARL199201-200808

main16271-67020i1KZT..KZJ7#199305-199604

16371PULLEY, FAN

main16173-35020i22R..RJ7#199001-199604

main16173-61070i3F..FJ70,75..ARL;3F..FJ73,75..(PIC,SOT)..GEN199001-199208

W(450X8,2STEP,10000CST)

main16371-17010i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200701

main16371-54030i2LT,3L..LJ7#199001-199604

main16371-61020i3F..FJ70,75..GEN..CBU199001-199208

main16371-61030i3F..FJ7#..MTM..GEN199001-199208

W(POWER STEERING)

main16371-66020i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199201-200808

main16371-67020i1KZT..KZJ7#199305-199604

9033916001

main90339-16001

9161161050

main91611-61050

9161261040

main91612-61040

9322018016

main93220-18016

9611210250

main96112-10250

15 parts on this diagram · 9 diagrams in section
