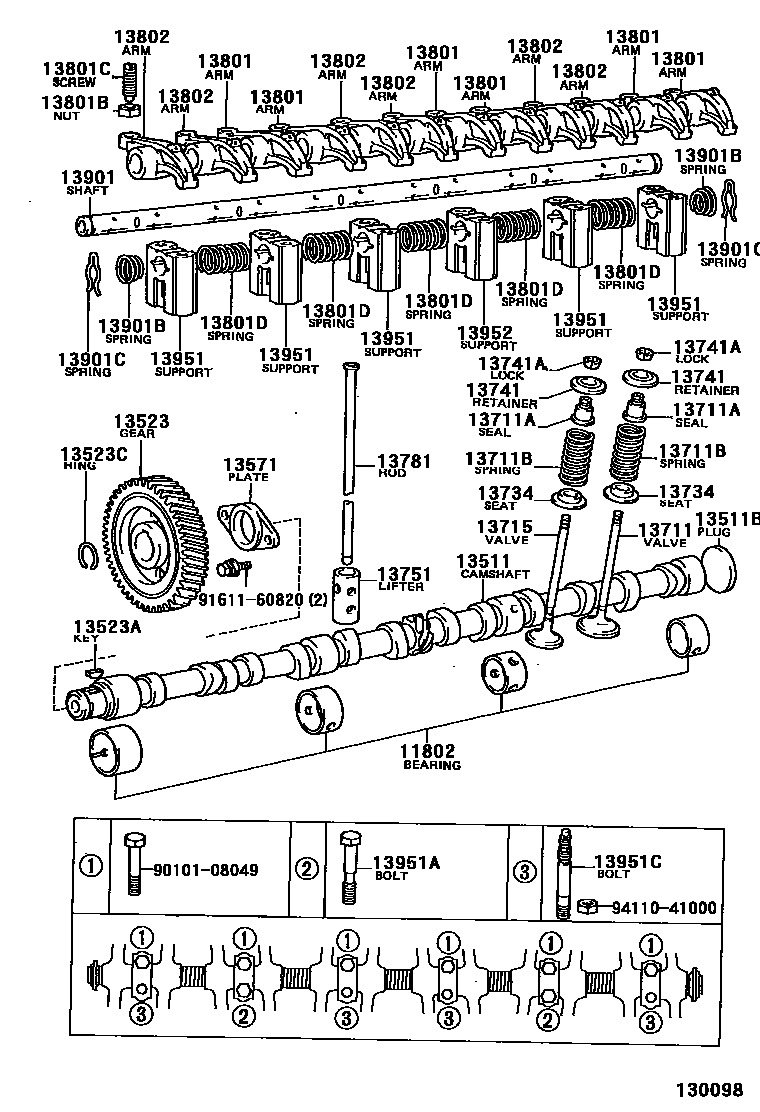

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
STD
STD
U/S 0.25
U/S 0.50
13511CAMSHAFT
main13501-66020i1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ73,75..(PIC,SOT)..GEN¥65,400199201-200405
13511BPLUG, EXPANSION(FOR CAMSHAFT)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
main90280-05004i1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV¥230199001-200701
13523CRING, SNAP CAMSHAFT(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13711VALVE, INTAKE
W/O EXHAUST EMISSUION CONTROL
COLOMBIA CKD PACKAGE
VENEZUELA CKD PACKAGE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
EXHAUST SIDE
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
W/O EXHAUST EMISSUION CONTROL
COLOMBIA CKD PACKAGE
VENEZUELA CKD PACKAGE
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
INTAKE
W/O EXHAUST EMISSUION CONTROL
EXHAUST
13741ALOCK, VALVE SPRING RETAINER
EXHAUST
W/O EXHAUST EMISSUION CONTROL
INTAKE
13751LIFTER, VALVE
STD
O/S 0.05
13781ROD, VALVE PUSH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901BSPRING, CONICAL(FOR VALVE ROCKER SHAFT)
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*10-1.25PX72-20
*10-1.25PX74-20
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
9010108049
9161160820
9411041000
