CRANKSHAFT & PISTON

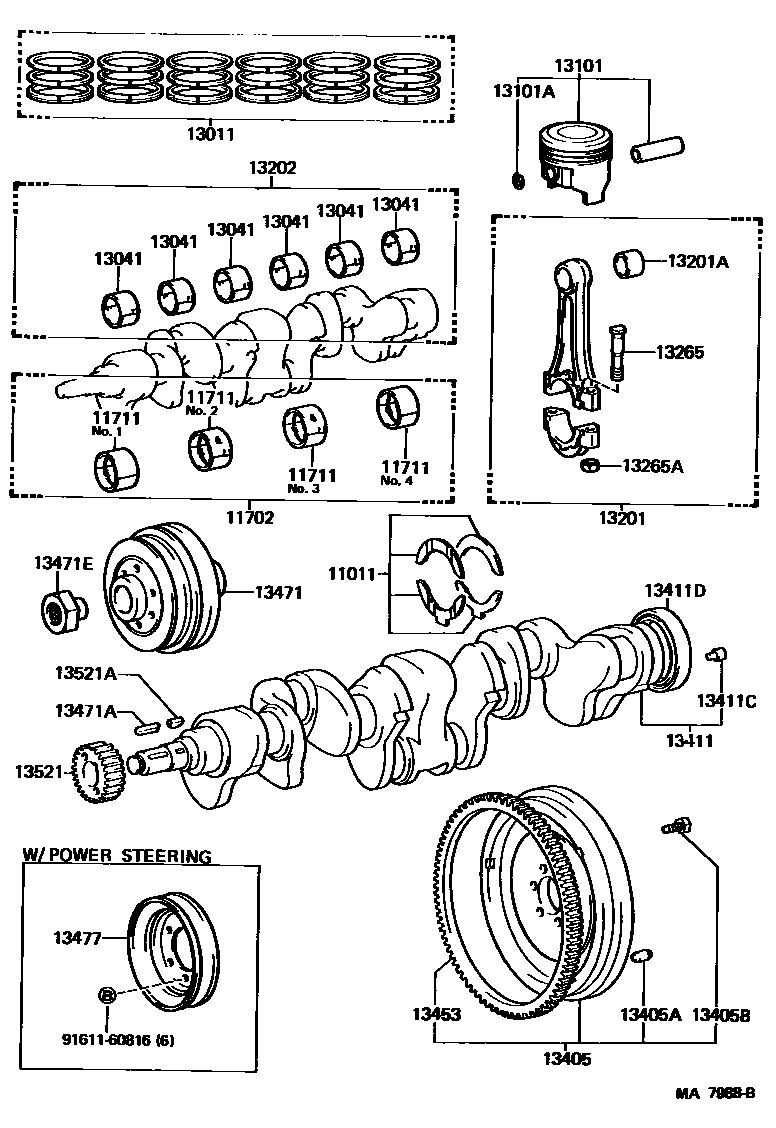

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-17010i199305-199501
STD
main11011-35020i199004-199305
STD
main11011-54020i199001-199305
STD
main11011-61010i199001-199208
STD
sub11011-61020
main11011-66020i199908-200808
STD
main11011-67020i199305-199604
STD
main11012-35030i199401-199604
O/S 0.125
main11012-54020i199305-199604
O/S 0.125
main11012-61010i199001-199208
O/S 0.125
sub11012-61020
main11012-66020i199201-199305
O/S 0.125
main11012-67020i199305-199604
O/S 0.125
sub11012-30010
main11013-35030i199305-199401
O/S 0.250
main11013-54020i199305-199604
O/S 0.250
main11013-61010i199001-199208
O/S 0.250
sub11013-61020
main11013-66020i199908-200808
O/S 0.250
main11013-67020i199305-199604
O/S 0.250
sub11013-30010
11702BEARING SET, CRANKSHAFT
main11704-17010i199305-199501
U/S 0.25
main11704-17011i199908-200701
U/S 0.25
main11704-18010i199001-199305
U/S 0.25
main11704-35040i199305-199401
U/S 0.25
main11704-54061i199305-199604
U/S 0.25
sub11704-54080
main11704-61010i199001-199208
U/S 0.25
sub11704-61020
main11704-66020i199201-199305
U/S 0.25
main11704-66021i199603-199801
U/S 0.25
main11704-66030i199801-200106
U/S 0.25
main11704-66031i200806-200808
U/S 0.25
main11704-67020i199305-199604
U/S 0.25
sub11704-67021
main11705-17010i199305-199501
U/S 0.50
main11705-17011i199801-200007
U/S 0.50
main11705-18010i199001-199305
U/S 0.50
main11705-54061i199001-199305
U/S 0.50
sub11705-54080
main11705-61010i199001-199208
U/S 0.50
sub11705-61020
main11705-67020i199305-199604
U/S 0.50
sub11705-67021
11711BEARING, CRANKSHAFT
main11071-61010-01i199001-199208
MARK 1,NO.2,REFER R/M
sub11071-61020
main11071-61010-02i199001-199208
MARK 2,NO.2,REFER R/M
sub11071-61020
main11071-61010-03i199001-199208
MARK 3,NO.2,REFER R/M
sub11071-61020
main11071-61010-04i199001-199208
MARK 4,NO.2,REFER R/M
sub11071-61020
main11071-61010-05i199001-199208
MARK 5,NO.2,REFER R/M
sub11071-61020
main11072-61010-01i199001-199208
MARK 1,NO.3,REFER R/M
sub11072-61020
main11072-61010-02i199001-199208
MARK 2,NO.3,REFER R/M
sub11072-61020
main11072-61010-03i199001-199208
MARK 3,NO.3,REFER R/M
sub11072-61020
main11072-61010-04i199001-199208
MARK 4,NO.3,REFER R/M
sub11072-61020
main11072-61010-05i199001-199208
MARK 5,NO.3,REFER R/M
sub11072-61020
main11073-61010-01i199001-199208
MARK 1,NO.4,REFER R/M
sub11073-61020
main11073-61010-02i199001-199208
MARK 2,NO.4,REFER R/M
sub11073-61020
main11073-61010-03i199001-199208
MARK 3,NO.4,REFER R/M
sub11073-61020
main11073-61010-04i199001-199208
MARK 4,NO.4,REFER R/M
sub11073-61020
main11073-61010-05i199001-199208
MARK 5,NO.4,REFER R/M
sub11073-61020
main11701-17010-02×7i199305-199501
MARK 2
main11701-17010-03×6i199305-199501
MARK 3
main11701-17010-04×6i199001-199305
MARK 4,MARK 4
main11701-17010-05×7i199305-199801
MARK 5,MARK 5
main11701-17010-06×6i199305-199501
MARK 6,MARK 6
main11701-17011-02×7i199908-200108
MARK 2
main11701-17011-03×7i199908-200701
MARK 3
main11701-17011-04×7i199801-199908
MARK 4,MARK 4
main11701-17011-05×7i199801-199911
MARK 5,MARK 5
main11701-17011-06×7i199908-200108
MARK 6
main11701-17011-07×7i199908-200108
MARK 7
main11701-35030-03×5i199305-199401
MARK 3
main11701-35030-04×5i199305-199401
MARK 4
main11701-35030-05×5i199004-199305
MARK 5
main11701-54061-01×5i199305-199604
MARK 1
sub11701-54080
main11701-54061-02×5i199305-199604
MARK 2
sub11701-54080
main11701-54061-03×5i199001-199305
MARK 3
sub11701-54080
main11701-61010-01i199001-199208
MARK 1,NO.1,REFER R/M
sub11701-61020
main11701-61010-02i199001-199208
MARK 2,NO.1,REFER R/M
sub11701-61020
main11701-61010-03i199001-199208
MARK 3,NO.1,REFER R/M
sub11701-61020
main11701-61010-04i199001-199208
MARK 4,NO.1,REFER R/M
sub11701-61020
main11701-61010-05i199001-199208
MARK 5,NO.1,REFER R/M
sub11701-61020
main11701-66020-02×7i199305-199603
MARK 2,REFER REPAIR MANUAL
main11701-66020-03×7i199201-199305
MARK 3,REFER REPAIR MANUAL
main11701-66020-04×7i199305-199603
MARK 4,REFER REPAIR MANUAL
main11701-66020-05×7i199305-199603
MARK 5,REFER REPAIR MANUAL
main11701-66020-06×7i199201-199305
MARK 6,REFER REPAIR MANUAL
main11701-66021-02×7i199603-199801
MARK 2,REFER REPAIR MANUAL
main11701-66021-03×7i199603-199801
MARK 3,REFER REPAIR MANUAL
main11701-66021-04×7i199603-199801
MARK 4,REFER REPAIR MANUAL
main11701-66021-05×7i199603-199801
MARK 5,REFER REPAIR MANUAL
main11701-66021-06×7i199603-199801
MARK 6,REFER REPAIR MANUAL
main11701-66030-02×7i199908-200806
MARK 2,REFER REPAIR MANUAL
main11701-66030-03×7i199908-200806
MARK 3,REFER REPAIR MANUAL
main11701-66030-04×7i199801-200405
MARK 4,REFER REPAIR MANUAL
main11701-66030-05×7i199908-200806
MARK 5,REFER REPAIR MANUAL
main11701-66030-06×7i199801-200405
MARK 6,REFER REPAIR MANUAL
main11701-66031-02×7i200806-200808
MARK2,REFER REPAIR MANUAL
main11701-66031-03×7i200806-200808
MARK3,REFER REPAIR MANUAL
main11701-66031-04×7i200806-200808
MARK4,REFER REPAIR MANUAL
main11701-66031-05×7i200806-200808
MARK5,REFER REPAIR MANUAL
main11701-66031-06×7i200806-200808
MARK6,REFER REPAIR MANUAL
main11701-67020-02×5i199305-199604
MARK 2
sub11701-67021
main11701-67020-03×5i199305-199604
MARK 3
sub11701-67021
main11701-67020-04×5i199305-199604
MARK 4
sub11701-67021
main11701-67020-05×5i199305-199604
MARK 5
sub11701-67021
main11701-67020-06×5i199305-199604
MARK 6
sub11701-67021
13011RING SET, PISTON
main13011-17010i199001-199208
STD
main13011-17011i199208-199305
STD
main13011-17020i199401-199501
STD
main13011-17030i199501-199908
STD
main13011-17040i200108-200701
STD
main13011-18010i199001-199208
STD
main13011-18011i199305-199401
STD
main13011-18020i199401-199501
STD
sub13011-18030
main13011-35052i199001-199108
STD
main13011-35071i199305-199401
STD
main13011-54100i199001-199305
STD
main13011-54120i199004-199305
STD
main13011-61062i199001-199208
STD
main13011-66020i199201-199207
STD
main13011-66021i199305-200405
STD
main13011-67020i199305-199604
STD
sub13011-67030
main13013-17010i199001-199208
O/S 0.50
main13013-17011i199208-199305
O/S 0.50
main13013-17020i199401-199501
O/S 0.50
main13013-17030i199501-200007
O/S 0.50
main13013-17040i200108-200701
O/S 0.50
main13013-18010i199001-199208
O/S 0.50
main13013-18011i199305-199401
O/S 0.50
main13013-18020i199401-199501
O/S 0.50
sub13013-18030
main13013-35052i199001-199108
O/S 0.50
main13013-35071i199305-199401
O/S 0.50
main13013-54100i199001-199305
O/S 0.50
main13013-54120i199305-199604
O/S 0.50
main13013-61062i199001-199208
O/S 0.50
main13013-66020i199201-199207
O/S 0.50
main13013-66021i199908-200808
O/S 0.50
main13013-67020i199305-199604
O/S 0.50
sub13013-67030
main13014-17010i199908-200404
O/S 0.75
main13014-17020i200108-200404
O/S 0.75
main13014-17030i200404-200701
O/S 0.75
main13014-17040i200404-200701
O/S 0.75
main13014-54100i199001-199305
O/S 0.75
main13014-67020i199305-199604
O/S 0.75
sub13014-67030
main13015-35052i199001-199108
O/S 1.00
main13015-35071i199401-199604
O/S 1.00
main13015-54100i199001-199305
O/S 1.00
main13015-61062i199001-199208
O/S 1.00
main13015-66020i199201-199207
O/S 1.00
main13015-66021i199305-200106
O/S 1.00
main13015-67020i199305-199604
O/S 1.00
sub13015-67030
main13017-61062i199001-199208
O/S 1.50
13041BEARING, CONNECTING ROD
main13041-17010-02×5i199001-199305
MARK 2
main13041-17010-03×5i199001-199305
MARK 3
main13041-17010-04×6i199305-199408
MARK 4,MARK 4
main13041-17010-05×5i199001-199305
MARK 5,MARK 5
main13041-17010-06×6i199305-199408
MARK 6,MARK 6
main13041-17011-02×6i199408-199501
MARK 2
main13041-17011-03×6i199408-199501
MARK 3
main13041-17011-04×6i199908-200701
MARK 4
main13041-17011-05×6i199408-199911
MARK 5,MARK 5
main13041-17011-06×6i199408-200007
MARK 6,MARK 6
main13041-35020-A0×6i199001-199208
MARK A
main13041-35020-B0×6i199001-199208
MARK B
main13041-35020-C0×6i199001-199208
MARK C
main13041-35030-A0×4i199004-199305
MARK A
main13041-35030-B0×4i199004-199305
MARK B
main13041-35030-C0×4i199004-199305
MARK C
main13041-54041-01×4i199305-199604
MARK 1
sub13041-54042
main13041-54041-02×4i199001-199305
MARK 2
sub13041-54042
main13041-54041-03×4i199001-199305
MARK 3
sub13041-54042
main13041-66020-02×6i199201-199305
MARK 2
main13041-66020-03×6i199201-199305
MARK 3
main13041-66020-04×6i199305-199801
MARK 4
main13041-66020-05×6i199305-199801
MARK 5
main13041-66020-06×6i199201-199305
MARK 6
main13041-66030-02×6i199801-200405
MARK 2
main13041-66030-03×6i199908-200807
MARK 3
main13041-66030-04×6i199908-200807
MARK 4
main13041-66030-05×6i199908-200807
MARK 5
main13041-66030-06×6i199801-200405
MARK 6
main13041-66031-02×6i200807-200808
MARK2
main13041-66031-03×6i200807-200808
MARK3
main13041-66031-04×6i200807-200808
MARK4
main13041-66031-05×6i200807-200808
MARK5
main13041-66031-06×6i200807-200808
MARK6
main13041-67030-02×4i199305-199604
MARK 2
sub13041-67031
main13041-67030-03×4i199305-199604
MARK 3
sub13041-67031
main13041-67030-04×4i199305-199604
MARK 4
sub13041-67031
main13041-67030-05×4i199305-199604
MARK 5
sub13041-67031
main13041-67030-06×4i199305-199604
MARK 6
sub13041-67031
13101PISTON SUB-ASSY, W/PIN
main13101-17010-01×5i199001-199305
STD,MARK 1
main13101-17010-02×6i199305-199501
STD,MARK 2
main13101-17010-03×6i199001-199305
STD,MARK 3
main13101-17100-01×6i199908-200701
STD,MARK 1,REFER REPAIR MANUAL
main13101-17100-02×6i199805-199908
STD,MARK 2,REFER REPAIR MANUAL
main13101-17100-03×6i199805-199911
STD,MARK 3,REFER REPAIR MANUAL
main13101-17120-01×6i200108-200701
STD,MARK 1,REFER REPAIR MANUAL
main13101-17120-02×6i200108-200701
STD,MARK 2,REFER REPAIR MANUAL
main13101-17120-03×6i200108-200701
STD,MARK 3,REFER REPAIR MANUAL
main13101-35032-01×4i199401-199604
STD,MARK1
main13101-35032-02×4i199004-199305
STD,MARK2
main13101-35032-03×4i199004-199305
STD,MARK3
main13101-54090-01×4i199001-199304
STD,MARK 1
main13101-54090-02×4i199001-199304
STD,MARK 2
main13101-54090-03×4i199001-199304
STD,MARK 3
main13101-54091-01×4i199304-199305
STD,MARK 1
main13101-54091-02×4i199304-199305
STD,MARK 2
main13101-54091-03×4i199304-199305
STD,MARK 3
main13101-54100-01×4i199004-199102
STD,MARK 1
main13101-54100-02×4i199004-199102
STD,MARK 2
main13101-54100-03×4i199004-199102
STD,MARK 3
main13101-54101×4i199102-199305
STD
main13101-54101-01×4i199305-199604
STD,MARK 1
main13101-54101-02×4i199305-199604
STD,MARK 2
main13101-54101-03×4i199305-199604
STD,MARK 3
main13101-61032-01×6i199001-199006
STD,MARK 1
main13101-61032-02×6i199001-199006
STD,MARK 2
main13101-61032-03×6i199001-199006
STD,MARK 3
main13101-61034-01×6i199006-199208
STD,MARK 1
main13101-61034-02×6i199006-199208
STD,MARK 2
main13101-61034-03×6i199006-199208
STD,MARK 3
main13101-66020-01×6i199201-199207
STD,MARK 1
main13101-66020-02×6i199201-199207
STD,MARK 2
main13101-66020-03×6i199201-199207
STD,MARK 3
main13101-66021-01×6i199305-199911
STD,MARK1
main13101-66021-02×6i199207-199305
STD,MARK2
main13101-66021-03×6i199305-199911
STD,MARK3
main13101-66030-01×6i199201-199207
STD,EXHAUST EMISSION CONTROL,MARK 1
main13101-66030-02×6i199201-199207
STD,EXHAUST EMISSION CONTROL,MARK 2
main13101-66030-03×6i199201-199207
STD,EXHAUST EMISSION CONTROL,MARK 3
main13101-66031-01×6i199207-199305
STD,EXHAUST EMISSION CONTROL,MARK1
main13101-66031-02×6i199207-199305
STD,EXHAUST EMISSION CONTROL,MARK2
main13101-66031-03×6i199207-199305
STD,EXHAUST EMISSION CONTROL,MARK3
main13101-66040-01×6i199305-200405
STD,MARK 1
main13101-66040-02×6i199305-200405
STD,MARK 2
main13101-66040-03×6i199305-200405
STD,MARK 3
main13101-66050-01×6i199908-200808
STD,MARK 1
main13101-66050-02×6i199908-200808
STD,MARK 2
main13101-66050-03×6i199908-200808
STD,MARK 3
main13101-67020-01×4i199305-199604
STD,MARK 1
sub13101-67030
main13101-67020-02×4i199305-199604
STD,MARK 2
sub13101-67030
main13101-67020-03×4i199305-199604
STD,MARK 3
sub13101-67030
main13103-17010×6i199001-199305
O/S 0.50
main13103-17100×6i199908-200701
O/S 0.50
main13103-17120×6i200108-200701
O/S 0.50
main13103-35042×4i199401-199604
O/S 0.50
main13103-54090×4i199001-199304
O/S 0.50
main13103-54091×4i199304-199305
O/S 0.50
main13103-54100×4i199004-199102
O/S 0.50
main13103-54101×4i199305-199604
O/S 0.50
main13103-61032×6i199001-199006
O/S 0.50
main13103-61034×6i199006-199208
O/S 0.50
main13103-66020×6i199201-199207
O/S 0.50
main13103-66021×6i199207-199305
O/S 0.50
main13103-66030×6i199201-199207
O/S 0.50,EXHAUST EMISSION CONTROL
main13103-66031×6i199207-199305
O/S 0.50,EXHAUST EMISSION CONTROL
main13103-66040×6i199305-200106
O/S 0.50
main13103-66050×6i199908-200808
O/S 0.50
main13103-67020×4i199305-199604
O/S 0.50
sub13103-67030
main13104-17010×6i199908-200701
O/S 0.75
sub13104-17100
main13104-17020×6i200108-200701
O/S 0.75
sub13104-17120
main13104-54090×4i199001-199304
O/S 0.75
main13104-54091×4i199304-199305
O/S 0.75
main13104-67020×4i199305-199604
O/S 0.75
sub13104-67030
main13105-35042×4i199305-199401
O/S 1.00
main13105-54090×4i199001-199304
O/S 1.00
main13105-54091×4i199304-199305
O/S 1.00
main13105-61032×6i199001-199006
O/S 1.00
main13105-61034×6i199006-199208
O/S 1.00
main13105-66020×6i199201-199207
O/S 1.00
main13105-66021×6i199207-199305
O/S 1.00
main13105-66030×6i199201-199207
O/S 1.00,EXHAUST EMISSION CONTROL
main13105-66031×6i199207-199305
O/S 1.00,EXHAUST EMISSION CONTROL
main13105-66040×6i199305-200106
O/S 1.00
main13105-66050×6i199908-200808
O/S 1.00
main13105-67020×4i199305-199604
O/S 1.00
sub13105-67030
main13107-61032×6i199001-199006
O/S 1.50
main13107-61034×6i199006-199208
O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-26060×12i199908-200701
main90520-37014×8i199305-199604
main90521-25002×12i199001-199208
main90521-25105×8i199401-199604
main90521-31001×8i199001-199305
main90521-32004×12i199305-200007
main90521-36001×12i200108-200701
13201ROD SUB-ASSY, CONNECTING
main13201-17010×6i199305-199908
main13201-17022×6i200108-200701
main13201-35020×6i199204-199208
main13201-38011×6i199001-199204
main13201-39015×4i199401-199604
main13201-59105×4i199305-199604
sub13201-59106
main13201-66020×6i199908-200808
main13201-67020×4i199305-199604
sub13201-67021
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73072×4i199004-199305
main90999-73115×4i199001-199305
main90999-73126×6i199908-200701
main90999-73135×6i199305-200106
main90999-73136×4i199305-199604
main90999-73137×6i200108-200701
13202BEARING SET, CONNECTING ROD
main13204-17010i199001-199305
U/S 0.25
main13204-17011i199408-199501
U/S 0.25
main13204-18040i199001-199305
U/S 0.25
main13204-18041i199408-199501
U/S 0.25
main13204-35040i199401-199604
U/S 0.25
main13204-54041i199305-199604
U/S 0.25
sub13204-54042
main13204-61020i199001-199208
U/S 0.25
main13204-66020i199305-199801
U/S 0.25
main13204-66030i199908-200804
U/S 0.25
main13204-66031i200807-200808
U/S 0.25
main13204-67030i199305-199604
U/S 0.25
sub13204-67031
main13205-17010i199305-199408
U/S 0.50
main13205-17011i199408-199911
U/S 0.50
main13205-18040i199001-199305
U/S 0.50
main13205-18041i199408-199501
U/S 0.50
main13205-54041i199001-199305
U/S 0.50
sub13205-54042
main13205-61020i199001-199208
U/S 0.50
main13205-67030i199305-199604
U/S 0.50
sub13205-67031
13265BOLT, CONNECTING ROD
main13265-17010×10i199001-199305
main13265-39025×8i199001-199004
main13265-54020×8i199305-199604
sub13265-54021
main13265-66020×12i199201-199305
main13265-67020×8i199305-199604
sub13265-67021
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-10198×8i199401-199604
main90179-10123×8i199001-199305
13405FLYWHEEL SUB-ASSY
main13405-17010i199305-199501
main13405-17020i200108-200701
main13405-35021i199001-199004
main13405-54060i199001-199208
main13405-54070i199305-199604
main13405-54080i199208-199305
main13405-61012i199001-199208
main13405-66020i199908-200808
main13405-67020i199305-199604
main13450-18010i199001-199301
main13450-18011i199301-199305
main13451-17020i199001-199108
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i199001-199108
L=15,OD=5
main90250-08054×3i199305-199604
L=23,OD=8
main90250-10192×3i199305-199501
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
main90105-12109×8i199001-199305
main90105-12169×8i199001-199305
main90105-13009×8i199305-199604
main90913-01011×6i199001-199004
main90913-01019×6i199001-199208
main90913-01021×10i199908-200605
13411CRANKSHAFT
main13401-54060i199004-199305
sub13401-54061
main13401-54070i199001-199305
main13401-61023i199001-199208
main13401-66020i199305-200405
main13401-67010i199305-199604
sub13401-30010
main13411-17010i199305-199501
main13411-17011i199801-199911
sub90311-95008
main13411-17012i200105-200108
main13411-18010i199305-199501
sub13411-18011
sub90311-95008
main13411-38010i199004-199305
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
main90241-10017i199001-199208
main90250-08030i199001-199305
sub90250-08046
13411DSEAL, OIL(FOR CRANKSHAFT)
main90311-99005i199001-199208
13453GEAR, FLYWHEEL RING
main13453-17010i199001-199305
main13453-20010i199305-199401
main13453-54010i199305-199604
main13453-60010i199001-199208
main13453-66020i199908-200808
main13453-67020i199305-199604
13471PULLEY, CRANKSHAFT
main13408-17010i199305-200007
main13408-17030i200108-200701
main13408-18010i199001-199305
main13408-38010i199004-199305
main13408-54070i199001-199305
main13408-54080i199505-199604
sub13408-54090
main13408-67020i199305-199604
main13470-61030i199001-199208
main13470-66020i199305-199701
main13470-66021i199701-199712
main13470-66030i199908-200701
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005i199401-199604
main90280-05010i199001-199004
main90281-07004i199001-199208
main95161-20516i199001-199203
main95161-20622i199001-199205
main95161-30516i199203-199305
main95161-30622i199305-199604
13471ENUT(FOR CRANKSHAFT PULLEY)
main90179-22010i199001-199208
13477PULLEY, CRANKSHAFT, NO.2
main13407-17010i199305-199501
main13471-61010i199105-199201
W(POWER STEERING)
main13477-38010i199001-199004
main88451-35030i199305-199604
main88451-60050i199305-199401
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-17010i199305-199908
main13521-17030i200108-200701
main13521-35010i199001-199004
main13521-61010i199001-199208
main13521-66020i199908-200605
main13521-67020i199305-199604
main13521-75010i199402-199604
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i199305-199401
main90280-05010i199001-199004
main95161-20516i199001-199203
main95161-20622i199001-199205
main95161-30516i199203-199305
main95161-30622i199305-199604
9161160816
main91611-60816

26 parts on this diagram · 8 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
