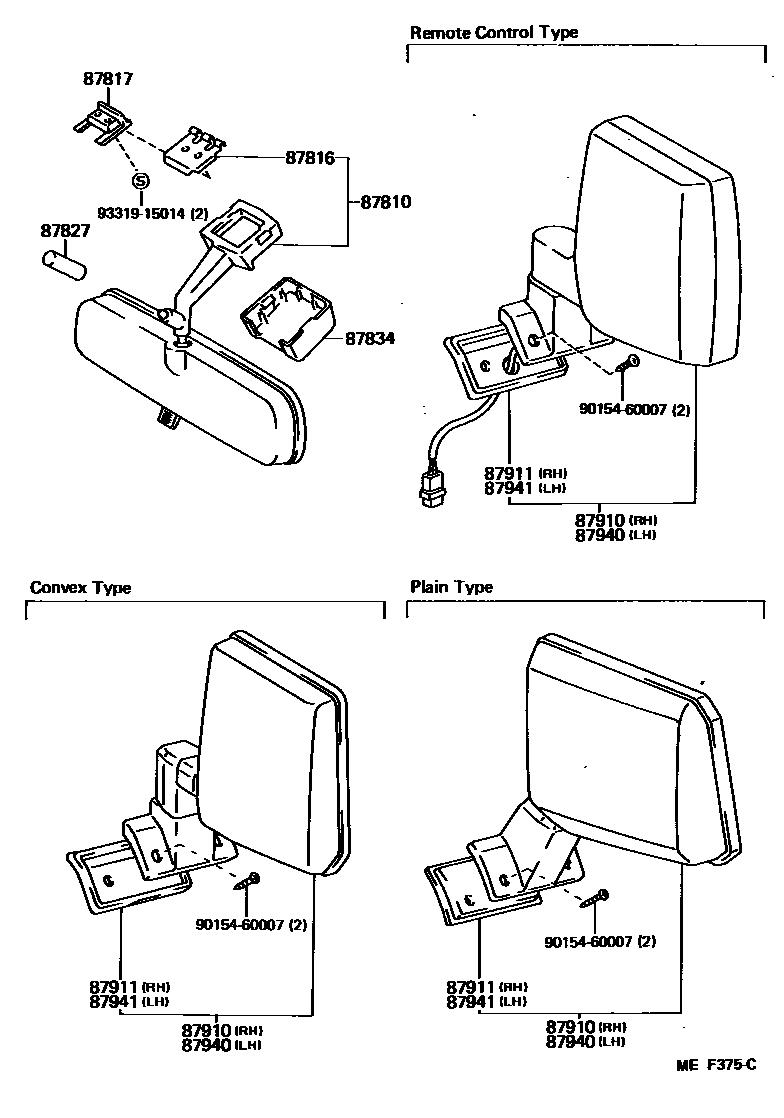

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198510

main87810-90K01iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

SOUTH AFRICA SPEC

main87810-90K03iFJ75,HJ75..SA198510-198608

sub87810-90K05

main87810-90K04iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198510-199001

main87810-90K05iFJ75,HJ75..SA198608-199001

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iBJ7#,FJ7#,HJ75,LJ70,RJ70198510-199001

main74372-90A00iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198510

87817SPACER, INNER REAR VIEW MIRROR

main87817-90K00iBJ70,FJ70,LJ70,RJ70..HT198411-198510

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

L=44

main87828-87005iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-18iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

IVORY

sub87834-20080

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-90K00iFJ75..GEN;HJ75..GEN..IV;FJ75..ARL..CBU;HJ75..(ARL,GEN)..CBU;BJ7#,FJ70,73,LJ70,RJ70..ARL,GEN198411-199001

PLAIN TYPE

main87910-90K01iFJ7#,RJ70..ME198411-198510

CONVEX TYPE

sub87910-90K15

main87910-90K01iFJ75,HJ75..SA198510-198607

sub87910-90K15

main87910-90K04iBJ75,FJ7#,RJ70..ME198411-199001

CHROME PLATED

sub87910-60151

main87910-90K08iLJ70,RJ70..RHD..LX..GEN198510-199001

REMOTE CONTROL TYPE

main87910-90K09iBJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD198510-199001

REMOTE CONTROL TYPE

main87910-90K15iFJ75,HJ75..SA198607-199001

sub87910-60142

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-90K00iFJ75..GEN;HJ75..GEN..IV;FJ75..ARL..CBU;HJ75..(ARL,GEN)..CBU;BJ7#,FJ70,73,LJ70,RJ70..ARL,GEN198411-199001

PLAIN TYPE

main87911-90K01iFJ75,HJ75..SA198510-199001

main87911-90K01iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

SOUTH AFRICA SPEC

main87911-90K01iBJ75,FJ7#,RJ70..ME198411-199001

CONVEX TYPE OR CHROME PLATED

main87911-90K03iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198510-198607

REMOTE CONTROL TYPE

sub87911-90K05

main87911-90K05iBJ74,FJ73,LJ70,RJ70..VX..ARL198607-199001

REMOTE CONTROL TYPE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-90K00iFJ7#,RJ70..STD..ME198411-199001

PLAIN TYPE

main87940-90K01iFJ7#,RJ70..ME198411-198510

CONVEX TYPE

sub87940-90K15

main87940-90K01iFJ75,HJ75..SA198510-198607

sub87940-90K15

main87940-90K04iBJ75,FJ7#,RJ70..ME198411-199001

CHROME PLATED

sub87940-60381

main87940-90K08iLJ70,RJ70..RHD..LX..GEN198510-199001

REMOTE CONTROL TYPE

main87940-90K09iBJ70,73,FJ7#,LJ70,RJ70..LHD..(LX,VX)198510-199001

REMOTE CONTROL TYPE

main87940-90K15iFJ75,HJ75..SA198607-199001

sub87940-60372

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87911-90K00iFJ75..GEN;HJ75..GEN..IV;FJ75..ARL..CBU;HJ75..(ARL,GEN)..CBU;BJ7#,FJ70,73,LJ70,RJ70..ARL,GEN198411-199001

PLAIN TYPE

main87911-90K01iBJ75,FJ7#,RJ70..ME198411-199001

CONVEX TYPE OR CHROME PLATED

main87911-90K01iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

SOUTH AFRICA SPEC

main87911-90K01iFJ75,HJ75..SA198510-199001

main87911-90K03iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198510-198607

REMOTE CONTROL TYPE

sub87911-90K05

main87911-90K05iBJ74,FJ73,LJ70,RJ70..VX..ARL198607-199001

REMOTE CONTROL TYPE

9015460007

main90154-60007

9331915014

main93319-15014

11 parts on this diagram · 1 diagram in section
