SPEAKER

86151BOX, SPEAKER

main86151-90K01×2iBJ70,73,FJ70,73,RJ70..HT..(ARL,ME)198411-198510

86160SPEAKER ASSY, FRONT NO.1

main86160-90K00iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..(LX,STD)..ARL198608-199001

FRONT 1 SPEAKER

main86160-90K01×2iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

FRONT 2 SPEAKERS

main86160-90K03iBJ70..RHD..5F..GEN198510-198608

24V

86160BSPEAKER ASSY, REAR

main86160-90K02×2iBJ70,73,FJ70,73,RJ70..HT..(ARL,ME)198411-198510

86161ABRACKET, SPEAKER, REAR

main86161-90K00iFJ70,73,RJ70..HT..ME198510-198608

NO.1

main86161-90K01iFJ70,73,RJ70..HT..ME198510-198608

NO.2

86262BCOVER, SPEAKER, REAR

main86269-90K01×2iFJ70,73,RJ70..HT..ME198510-198608

86264BGRILLE, SPEAKER, REAR

main86269-90K00×2iBJ74,FJ70,73,LJ70,RJ70..VX198608-199001

9015950105

main90159-50105

9017906070

main90179-06070

9017906158

main90179-06158

9018305002

main90183-05002

9018904011

main90189-04011

9161140612

main91611-40612

9354014025

main93540-14025

9354054014

main93540-54014

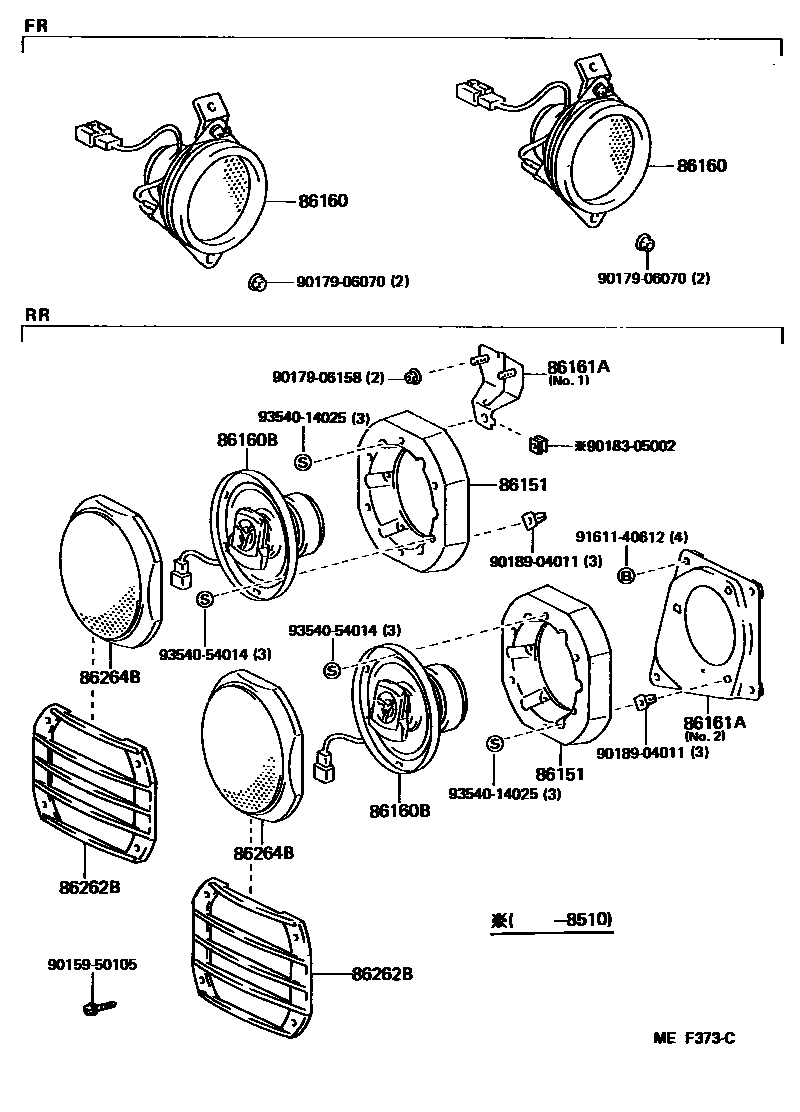

14 parts on this diagram · 1 diagram in section
