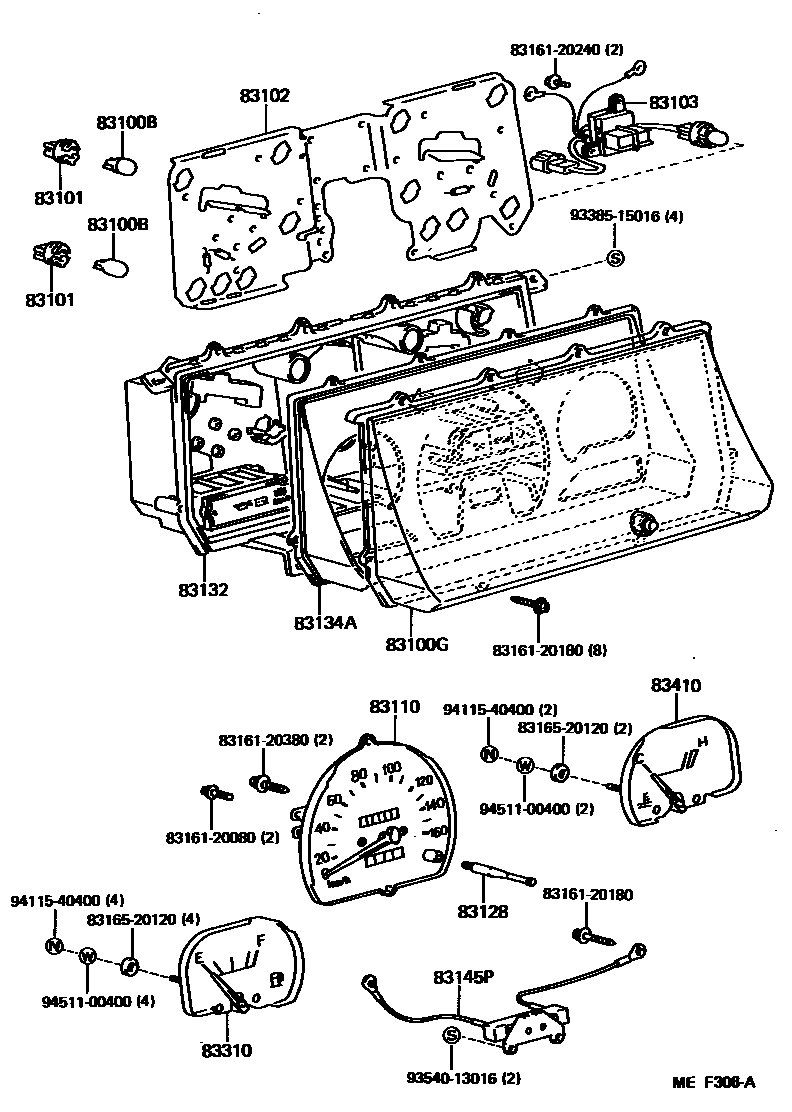

METER

0001 1 0002 1 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main99132-12034iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

12V 3.4W,12V 3.4W

main99134-12030iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-199001

24V 3W,24V 3W

83100GGLASS, COMBINATION METER

main83138-90K00iBJ7#,FJ7#,HJ75,RJ70198411-199001

main83138-90K01iLJ70198411-199001

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

12V 3.4W

main83101-89101iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-199001

24V 3W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-90K01iBJ7#,FJ7#,HJ75,RJ70..ARL,GEN198411-198608

W/TACHOMETER

main83247-90K02iLJ70198411-198608

W/TACHOMETER

main83247-90K04iFJ7#,RJ70..ME198411-198608

W/TACHOMETER

main83247-90K06iBJ70,75,FJ7#,HJ75,RJ70..GEN,SA198411-198608

main83247-90K07iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198608

24V

main83247-90K08iLJ70..DSL198411-198608

main83247-90K09iFJ73..SOT..ME198411-198608

main83247-90K16iRJ70..RHD..GEN;RJ70..LHD..LX..GEN198608-199001

W/TACHOMETER

main83247-90K17iLJ70198608-199001

W/TACHOMETER

main83247-90K18iFJ7#,RJ70..(LX,VX)..ME198608-199001

main83247-90K20iBJ70..RHD..SOT198608-199001

24V

main83247-90K21iBJ70,73,75,FJ7#,HJ75,RJ70..STD..(GEN,SA)198608-199001

main83247-90K22iBJ75,FJ7#,RJ70..STD..ME198608-199001

main83247-90K22iBJ70,73,75,FJ7#,HJ75..STD..GEN198708-199001

W/DEFF LOCK & W/*WAW

main83247-90K23iLJ70..RHD..LX..GEN198710-199001

MALAYSIA SPEC

main83247-90K23iLJ70..STD198608-199001

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-90K25iBJ70..RHD..GEN;BJ70..LHD..HT..4F..STD;BJ73,75,FJ7#,HJ75..STD..(GEN,ME)198608-199001

83110SPEEDOMETER ASSY

main83110-90K02iFJ7#,RJ70..ARL198411-198510

KM

main83110-90K03iBJ75,FJ75,HJ75..GEN198510-199001

KM,W/TACHOMETER

main83110-90K03iBJ70,75,FJ7#,HJ75,RJ70..GEN,ME198411-198510

KM,W/TACHOMETER,W/O LEAD SW.

main83110-90K04iFJ7#,RJ70..ME198411-199001

KM,W/TACHOMETER & LEAD SW.

main83110-90K05iLJ70..GEN198608-199001

KM,W/TACHOMETER

main83110-90K05iLJ70..DSL198411-198608

KM,W/TACHOMETER,*ME

main83110-90K05iLJ70..LHD..TD198510-198608

KM

main83110-90K07iBJ75,FJ75,HJ75..GEN198411-199001

MILE/KM,W/TACHOMETER

main83110-90K08iLJ70..LX..DSL198411-199001

MILE/KM,W/TACHOMETER

main83110-90K10iBJ70,75,FJ7#,HJ75,RJ70..GEN198411-199001

MILE/KM

main83110-90K11iLJ70..DSL198411-199001

MILE/KM

main83110-90K14iFJ70,75,RJ70..ME198411-198608

KM

main83110-90K14iFJ73..SOT..ME198411-199001

KM,W/LEAD SW.

main83110-90K14iBJ70,73,75,FJ7#,HJ75..STD..GEN198708-199001

KM,W/DEFF LOCK & W/*WAW

main83110-90K15iBJ70,73,75,FJ7#,HJ75,RJ70..STD..(GEN,ME)198411-199001

KM

main83110-90K16iLJ70..DSL198411-199001

KM

main83110-90K16iLJ70..RHD..LX..GEN198710-199001

MALAYSIA SPEC

main83110-90K17iBJ70,73,HJ75..ARL198411-198510

KM

main83110-90K20iBJ70,73,74,FJ7#,HJ75..ARL198510-199001

KM

main83110-90K21iRJ70..ARL198510-199001

KM

main83110-90K22iLJ70..ARL198510-199001

KM

83128KNOB, TRIP COUNTER

main83128-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

83132CASE, COMBINATION METER

main83132-90K00iBJ70,75,FJ7#,RJ70..GEN,ME198411-198608

W/TACHOMETER

main83132-90K01iLJ70..GEN198411-198608

W/TACHOMETER

main83132-90K02iBJ70,73,74,FJ7#,RJ70..ARL198411-198608

main83132-90K03iLJ70..ARL198510-198608

main83132-90K04iBJ70,75,FJ7#,RJ70..GEN,SA198411-198608

main83132-90K05iLJ70..DSL198411-198608

main83132-90K06iBJ70,FJ70..RHD..5F..GEN198608-199001

W/TACHOMETER & DEFF LOCK

main83132-90K06iBJ70,FJ70..RHD..5F..GEN198608-199001

W/TACHOMETER

main83132-90K07iFJ7#..(LX,VX)..ME198608-199001

W/TACHOMETER & DEFFLOCK

main83132-90K07iBJ70..RHD..5F..GEN198608-199001

W/TACHOMETER & DEFF LOCK

main83132-90K07iBJ70,73..LX..GEN198708-199001

W/DEFF LOCK

main83132-90K08iLJ70..GEN198608-199001

W/TACHOMETER

main83132-90K09iBJ70,73,74,FJ7#,HJ75,RJ70..ARL198608-199001

main83132-90K10iBJ70,73,74,FJ7#,HJ75..ARL198608-199001

W/DEFF LOCK

main83132-90K11iBJ70..RHD..GEN;BJ70..LHD..HT..4F..STD;BJ73,75,FJ7#,HJ75..STD..(GEN,ME)198608-199001

W/DEFF LOCK

main83132-90K12iBJ70,73,75,FJ7#,HJ75,RJ70..STD..(GEN,ME)198608-199001

main83132-90K13iLJ70..RHD..LX..GEN198710-199001

MALAYSIA SPEC

main83132-90K13iLJ70..STD198608-199001

main83132-90K14iLJ70..ARL198608-199001

83134ACOVER, COMBINATION GAGE

main83134-90K00iBJ70,73,FJ7#,LJ70,RJ70..(LX,VX)..(GEN,ME)198411-198609

W/TACHOMETER

sub83134-90K05

main83134-90K01iFJ70,75,RJ70..ME198411-198608

main83134-90K02iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..STD..(GEN,ME,SA)198604-199001

main83134-90K02iLJ70..RHD..LX..GEN198710-199001

MALAYSIA SPEC

main83134-90K05iLJ70..LHD..STD198609-199001

W/TACHOMETER

83145PDROPPER, METER

main83145-90K00iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-199001

83310GAGE ASSY, FUEL RECEIVER

main83243-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN198411-198608

W/TACHOMETER

main83243-90K01iBJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198411-198608

W/TACHOMETER,*ME

main83243-90K02iBJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN,SA198411-199001

main83243-90K02iLJ70..RHD..LX..GEN198710-199001

MALAYSIA SPEC

main83243-90K03iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL198608-199001

W/TACHOMETER

main83243-90K04iFJ75..LX198608-199001

W/TACHOMETER,*ME

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..STD..(GEN,SA)198411-199001

main83244-90K00iLJ70..RHD..LX..GEN198710-199001

MALAYSIA SPEC

main83244-90K01iBJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN198411-199001

*ME

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316520120MIRROR, COMBINATION METER, NO.2

main83165-20120

9338515016

main93385-15016

9354013016

main93540-13016

9411540400

main94115-40400

9451100400

main94511-00400

21 parts on this diagram · 4 diagrams in section
