WIRING & CLAMP

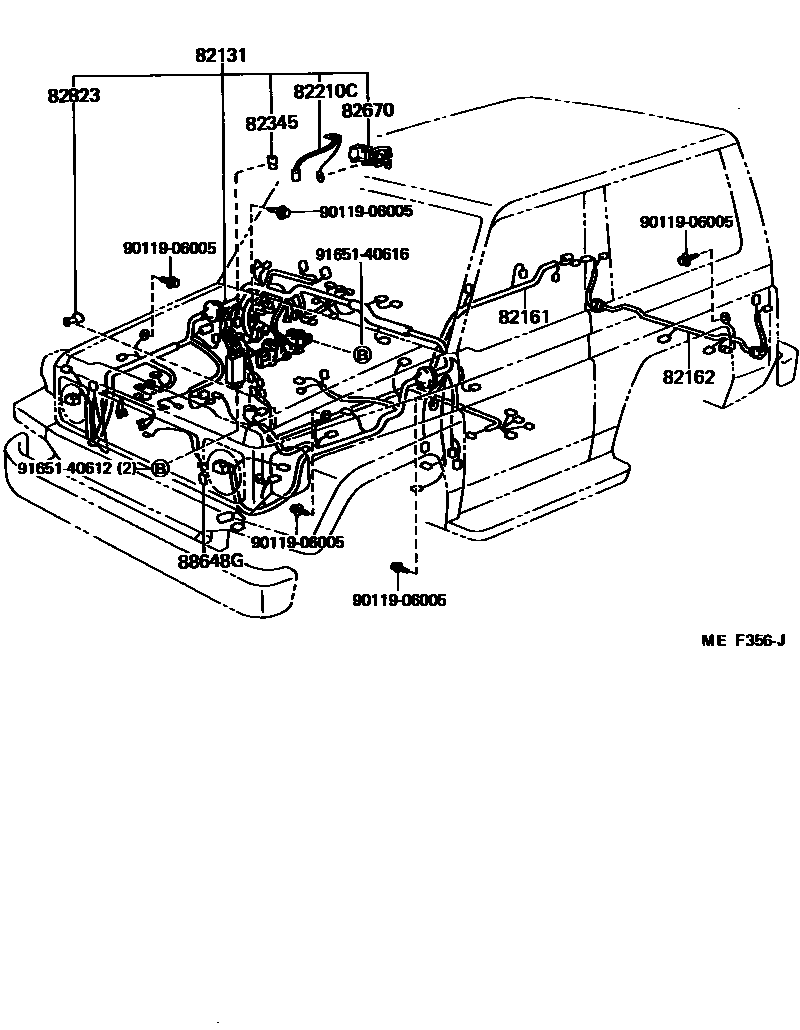

Parts diagram
82131WIRE, COWL
main82131-90072i198808-199001
main82131-90073i198808-199001
main82131-90074i198808-199001
main82131-90075i198808-199001
main82131-90076i198808-199001
main82131-90078i198808-199001
main82131-90079i198808-199001
ALTERNATOR=12V 80A
main82131-90080i198808-199001
ALTERNATOR=12V 40A,W/*ODAC
main82131-90081i198808-199001
ALTERNATOR=12V 80A,W/*ODAC
main82131-90082i198808-199001
main82131-90083i198808-199001
ALTERNATOR=12V 80A,W/O *ODAC
main82131-90084i198808-199001
ALTERNATOR=12V 40A,W/*ODAC
main82131-90085i198808-199001
ALTERNATOR=12V 80A,W/*ODAC
main82131-90300i198708-198808
ALTERNATOR=12V 80A
main82131-90301i198708-198808
ALTERNATOR=12V 40A,W/*ODAC
main82131-90302i198708-198808
ALTERNATOR=12V 80A,W/*ODAC
main82131-90303i198708-198808
main82131-90304i198708-198808
ALTERNATOR=12V 80A,W/O *ODAC
main82131-90305i198708-198808
ALTERNATOR=12V 40A,W/*ODAC
main82131-90306i198708-198808
ALTERNATOR=12V 80A,W/*ODAC
main82131-90307i198708-199001
main82131-90308i198708-198808
main82131-90309i198708-198808
W/*ODAC
main82131-90310i198708-198808
main82131-90311i198708-198808
main82131-90317i198708-198808
main82131-90318i198708-198808
24V
main82131-90319i198708-198808
main82131-90323i198708-199001
main82131-90332i198801-199001
main82131-90336i198801-198808
main82131-90340i198808-199001
main82131-90341i198808-199001
W/*ODAC
main82131-90342i198808-199001
main82131-90343i198808-199001
main82131-90347i198808-199001
main82131-90348i198808-199001
24V
main82131-90349i198808-199001
main82131-90K00i198411-198510
main82131-90K01i198411-198510
main82131-90K02i198411-198510
main82131-90K03i198411-198510
main82131-90K04i198411-198510
main82131-90K08i198411-198510
main82131-90K09i198411-198510
main82131-90K10i198411-198510
main82131-90K11i198411-198510
main82131-90K12i198411-198510
main82131-90K13i198411-198510
main82131-90K14i198411-198510
IRELAND SPEC
main82131-90K17i198411-198510
main82131-90K18i198411-198510
main82131-90K19i198411-198510
main82131-90K21i198411-198510
main82131-90K22i198411-198510
main82131-90K23i198411-198510
SOUTH AFRICA SPEC
main82131-90K24i198411-198510
main82131-90K25i198411-198510
main82131-90K26i198411-198510
SOUTH AFRICA SPEC
main82131-90K28i198411-198510
IRELAND SPEC
main82131-90K35i198510-198608
main82131-90K36i198510-198608
W/*RCM OR COOLER;W/CLINOMETER OR THRMOMETER
main82131-90K37i198510-198608
main82131-90K39i198510-198608
main82131-90K40i198510-198608
main82131-90K41i198510-198608
main82131-90K42i198510-198608
main82131-90K43i198510-198608
main82131-90K46i198510-198608
main82131-90K47i198510-198608
main82131-90K49i198510-198608
main82131-90K50i198510-198608
W/*RCM OR SINGLE COOLER;W/CLINOMETER OR TERMOMETER
main82131-90K51i198510-198608
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90K52i198510-198608
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90K53i198510-198608
ALTERNATOR=12V 65A,W/*ODAC
main82131-90K54i198510-198608
main82131-90K55i198510-198608
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90K56i198510-198608
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90K57i198510-198608
ALTERNATOR=12V 65A,W/*ODAC
main82131-90K58i198510-198608
main82131-90K59i198510-198608
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90K60i198510-198608
ALTERNATOR=12V 45A,50A W/*ODAC
main82131-90K61i198510-198608
ALTERNATOR=12V 65A,W/*ODAC
main82131-90K62i198510-198608
main82131-90K64i198510-198608
main82131-90K66i198510-198608
W/*ODAC
main82131-90K67i198510-198608
main82131-90K68i198510-198608
ALTERNATOR=12V 80A
main82131-90K69i198510-198608
ALTERNATOR=12V 40A,W/*ODAC
main82131-90K70i198510-198608
ALTERNATOR=12V 80A,W/*ODAC
main82131-90K71i198510-198608
main82131-90K72i198510-198608
ALTERNATOR=12V 80A,W/O *ODAC
main82131-90K73i198510-198608
ALTERNATOR=12V 40A,W/*ODAC
main82131-90K74i198510-198608
ALTERNATOR=12V 80A,W/*ODAC
main82131-90K75i198510-198608
main82131-90K77i198510-198608
main82131-90K79i198510-198608
W/*ODAC
main82131-90K80i198510-198608
main82131-90K85i198510-198608
main82131-90K86i198510-198608
24V
main82131-90K87i198510-198608
main82131-90K91i198510-198608
main82131-90L01i198608-198708
main82131-90L02i198608-198708
W/*RCM OR COOLER;W/CLINOMETER OR THRMOMETER
main82131-90L03i198608-198708
main82131-90L06i198608-198708
main82131-90L07i198608-198708
main82131-90L08i198608-198708
main82131-90L09i198608-198708
main82131-90L10i198608-198708
main82131-90L14i198608-198708
main82131-90L16i198608-198708
main82131-90L17i198608-198708
W/*RCM OR SINGLE COOLER;W/CLINOMETER OR TERMOMETER
main82131-90L18i198608-198708
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90L19i198608-198708
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90L20i198608-198708
ALTERNATOR=12V 65A,W/*ODAC
main82131-90L21i198608-198708
main82131-90L22i198608-198708
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90L23i198608-198708
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90L24i198608-198708
ALTERNATOR=12V 65A,W/*ODAC
main82131-90L25i198608-198708
main82131-90L26i198608-198708
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90L27i198608-198708
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90L28i198608-198708
ALTERNATOR=12V 65A,W/*ODAC
main82131-90L29i198608-198708
main82131-90L30i198608-198708
main82131-90L31i198608-198708
W/*ODAC
main82131-90L32i198608-198708
main82131-90L33i198608-198708
ALTERNATOR=12V 80A
main82131-90L34i198608-198708
ALTERNATOR=12V 40A,W/*ODAC
main82131-90L35i198608-198708
ALTERNATOR=12V 80A,W/*ODAC
main82131-90L36i198608-198708
main82131-90L37i198608-198708
ALTERNATOR=12V 80A,W/O *ODAC
main82131-90L38i198608-198708
ALTERNATOR=12V 40A,W/*ODAC
main82131-90L39i198608-198708
ALTERNATOR=12V 80A,W/*ODAC
main82131-90L40i198608-198708
main82131-90L41i198608-198708
main82131-90L42i198608-198708
W/*ODAC
main82131-90L43i198608-198708
main82131-90L49i198608-198708
main82131-90L50i198608-198708
24V
main82131-90L51i198608-198708
main82131-90L55i198608-198708
main82131-90L68i198708-199001
main82131-90L69i198708-199001
W/*RCM OR COOLER;W/CLINOMETER OR THRMOMETER
main82131-90L70i198708-198808
main82131-90L73i198708-198808
main82131-90L74i198708-198808
main82131-90L75i198708-199001
main82131-90L76i198708-198808
main82131-90L77i198708-198801
main82131-90L81i198708-198801
main82131-90L83i198708-199001
main82131-90L84i198708-199001
W/*RCM OR SINGLE COOLER;W/CLINOMETER OR TERMOMETER
main82131-90L85i198708-199001
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90L86i198708-199001
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90L87i198708-199001
ALTERNATOR=12V 65A,W/*ODAC
main82131-90L88i198708-199001
main82131-90L89i198708-199001
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90L90i198708-199001
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90L91i198708-199001
ALTERNATOR=12V 65A,W/*ODAC
main82131-90L92i198708-199001
main82131-90L93i198708-199001
ALTERNATOR=12V 65A,W/O *ODAC
main82131-90L94i198708-199001
ALTERNATOR=12V 45A,50A,W/*ODAC
main82131-90L95i198708-199001
ALTERNATOR=12V 65A,W/*ODAC
main82131-90L96i198708-199001
main82131-90L97i198708-199001
main82131-90L98i198708-199001
W/*ODAC
main82131-90L99i198708-198808
82161WIRE, FLOOR
main82161-90K00i198411-198510
main82161-90K01i198411-198510
W/RR SPEAKER OR SUN ROOF
main82161-90K02i198411-198510
W/*RWD OR *RW
main82161-90K04i198411-198510
W/RR SPEAKER
main82161-90K09i198411-198510
main82161-90K12i198411-198510
main82161-90K13i198411-198510
main82161-90K22i198510-198708
main82161-90K23i198510-198708
W/*RW OR W/*RW & RR HEATER
main82161-90K24i198608-198708
W/SUN ROOF OR RR SPEAKER
main82161-90K28i198510-198608
main82161-90K29i198510-198608
W/RR SPEAKER
main82161-90K31i198510-198708
main82161-90K32i198510-198708
W/*ODAC
main82161-90K34i198510-198708
main82161-90K40i198608-198708
main82161-90K44i198708-199001
main82161-90K45i198708-199001
W/*RW OR W/*RW & RR HEATER
main82161-90K46i198708-199001
W/ALTI METER & THERMO METER
main82161-90K48i198708-199001
main82161-90K49i198708-199001
W/*RW OR RR HEATER
main82161-90K51i198708-199001
main82161-90K52i198708-199001
W/*ODAC
main82161-90K54i198708-199001
82162WIRE, FLOOR, NO.2
main82161-90K23i198608-198708
*LPL:BUMPER
main82161-90K49i198708-199001
*LPL:BUMPER
main82162-90K00i198411-198510
main82162-90K02i198411-198510
W/*RWD OR TRAILER SOCKET
main82162-90K05i198411-198510
W/TRAILER SOCKET;W/SUB FUEL TANK
main82162-90K07i198411-198510
main82162-90K08i198411-198510
*LPL:BUMPER
main82162-90K09i198411-198510
*LPL:BUMPER
main82162-90K15i198510-198608
main82162-90K16i198608-198708
W/*RWD
main82162-90K17i198510-198608
24V,W/*RWD
main82162-90K22i198510-198608
main82162-90K23i198608-198708
W/DEFF LOCK OR TRAILER SOCKET
main82162-90K29i198608-198708
*LPL:BUMPER
main82162-90K33i198608-198708
main82162-90K36i198608-198708
main82162-90K41i198708-199001
main82162-90K42i198708-199001
W/DEEF LOCK OR TRAILER SOCKET
main82162-90K43i198708-199001
*LPL:BUMPER
main82162-90K48i198708-199001
main82162-90K49i198708-199001
W/DEFF LOCK OR TRAILER SOCKET;W/SUB FUEL TANK
82210CFUSIBLE LINK
main90982-08115i198510-199001
L=110,G,L=110X2 & L=100
main90982-08206i198808-199001
GLOW RESISTER,L=110
main90982-08231i198510-199001
main90982-08232i198411-198808
BATTERY,L=110
main90982-08233i198411-198510
L=110X2 & L=100
main90982-08235i198510-199001
ALTERNATOR=12V 65A
main90982-08236i198808-199001
L=110X2 & L=110
82345DIODE
main82345-12050×2i198411-199001
82670BLOCK ASSY, JUNCTION, NO.1
main82670-90K00i198510-198608
main82670-90K01i198510-199001
ALTERNATOR=12V 80A
main82670-90K02i198510-198908
main82671-28010i198908-199001
82823CAP, TERMINAL, NO.1
main82823-12020i198808-199001
ALTERNATOR
main82823-22060i198808-199001
ALTERNATOR
main82823-90300i198411-199001
MAGNT SW.(WINCH)
88648GWIRE, AIR CONDITIONER
main88648-90K05i198411-199001
9011906005
main90119-06005
9165140612
main91651-40612
9165140616
main91651-40616

11 parts on this diagram · 5 diagrams in section
