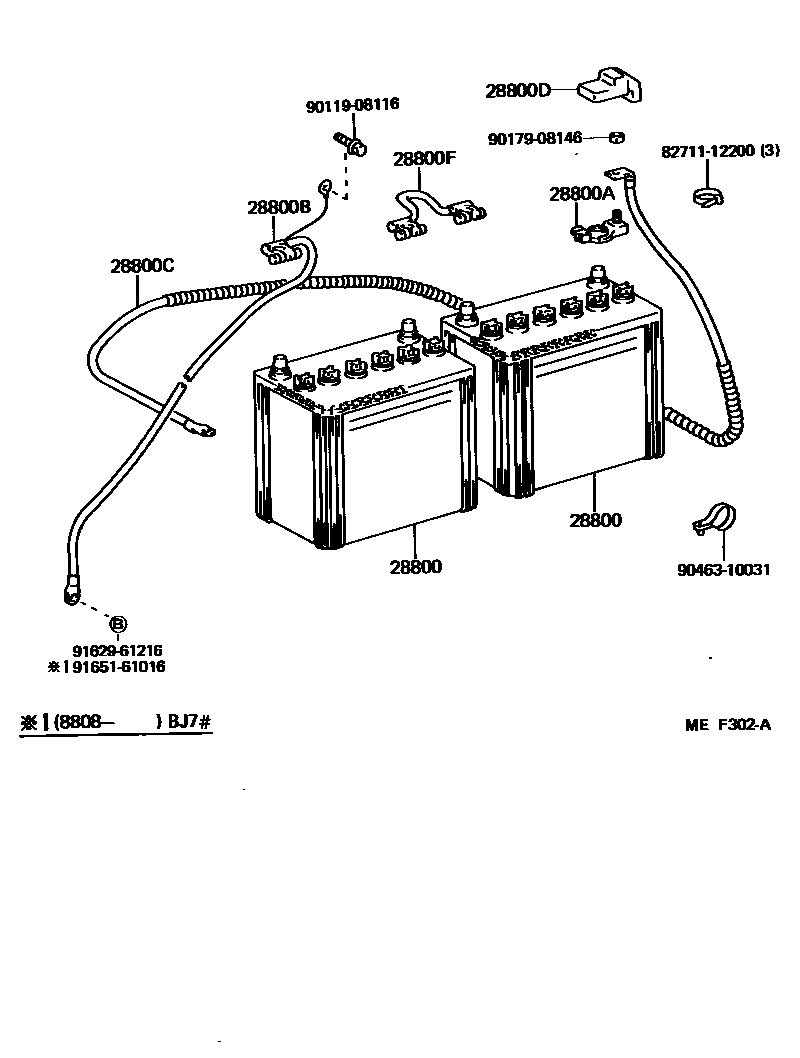

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-15010i3F..FJ7#..ARL198411-198608

55D23R,55D23R-MF

sub28800-14010

main28800-15050i22R..RJ70..ARL198501-199001

55D23L,55D23L-MF

sub28800-42030

main28800-30082i3F..FJ70,75..RHD..(GEN,SA)198411-199001

48D26R,48D26L(N50)

sub28800-30061

main28800-31031i22R..RJ70..GEN198411-198510

32C24L,32C24L(N40L)

sub28800-31021

main28800-42010i3F..FJ70..LHD..HT;3F..FJ70..LHD..SOT..GEN;3F,2H..FJ73,75,HJ75..LHD198501-199001

75D31L,75D31L(N70ZL)

sub28800-42020

main28800-43070i22R..RJ70..ARL198411-198501

55D23L-MF

main28800-46012i3B,2L..BJ70,73,75,LJ70..GEN,ME198411-199001

75D31R,75D31R(N70Z)

sub28800-46050

main28800-54290i2LT..LJ70..RHD..GEN198510-198608

130E41R,130E41R(NX200-10)

main28800-56040i3F..FJ7#..LHD..MTM198411-199001

48D26L,48D26L(N50L)

sub28800-73010

main28800-61010i3B,3F,2H..BJ70,73,FJ7#,HJ75..ARL198411-198501

75D31R(N70Z-MF)

sub28800-46012

main28800-61030i13BT,3B,3F,2H,2LT..BJ70,73,74,FJ7#,HJ75,LJ70..ARL198501-199001

75D31R,75D31R-MF(N70Z-MF)

sub28800-46012

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i3F,2H..FJ7#,HJ75..LHD198512-198610

sub90982-05030

main90982-05030i3F,2H..FJ7#,HJ75..LHD198610-199001

main90982-05031i3F,2H..FJ7#,HJ75..RHD198504-199001

sub82675-60030

main99142-87175i22R,3B,3F,2H,2L..BJ7#,FJ7#,HJ75,LJ70,RJ70198411-198504

sub82675-30020

28800BCABLE, BATTERY TO GROUND

main82123-90K01i3F,2H..FJ7#,HJ75..RHD198411-199001

main82123-90K02i3F,2H..FJ7#,HJ75..LHD198411-199001

main82123-90K03i13BT,3B..BJ7#198411-198808

main82123-90K04i2L#..LJ70198411-199001

main82123-90K06i22R..RJ70198411-199001

main82123-90K08i13BT,3B..BJ7#198808-199001

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-90K00i2H..HJ75..RHD..(ARL,GEN)198411-199001

main82122-90K01i3F,2H..FJ7#,HJ75..LHD198411-199001

main82122-90K02i3B..BJ70198411-199001

24V

main82122-90K06i13BT,3B,2L#..BJ7#,LJ70198411-199001

12V

main82122-90K08i22R..RJ70198411-199001

main82122-90K10i2H..HJ75198507-198510

SOUTH AFRICA SPEC

main82122-90K10i2H..HJ75..SA198510-199001

main82122-90K11i3F..FJ70,75..RHD198805-199001

main82122-90K12i3F..FJ7#..LHD198805-199001

main82122-90K13i2L#..LJ70198805-199001

12V

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

28800FCABLE, BATTERY TO BATTERY

main82122-90K03i3B..BJ70198411-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011908116

main90119-08116

9017908146

main90179-08146

9046310031

main90463-10031

9162961216

main91629-61216

9165161016

main91651-61016

12 parts on this diagram · 2 diagrams in section
