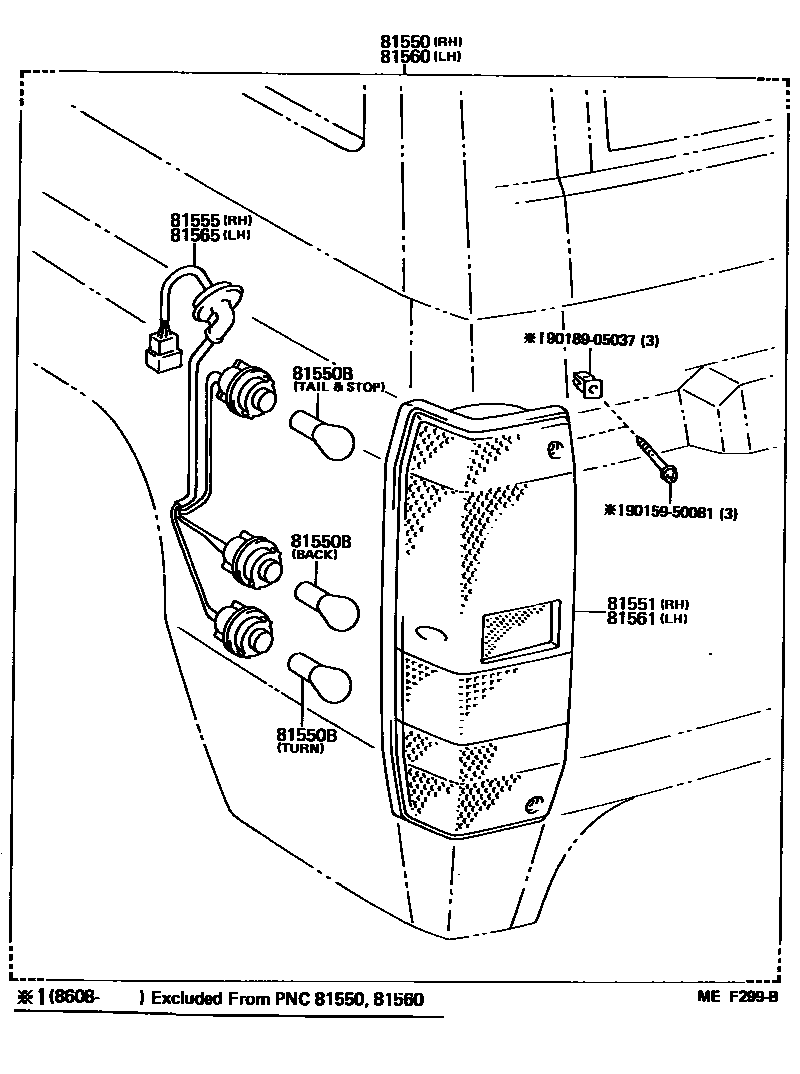

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-69105iLJ70,RJ70198510-198608

12V

main81550-69135iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198608

24V

main81550-69165iBJ75,FJ75,HJ75..PIC198411-198608

main81550-69175iBJ70,FJ70,75,HJ75,RJ70..(HT,SOT)..ARL198411-198510

W/O RR SEAT

main81550-69185iFJ75..RHD..5F..GEN..CBU198411-198510

*SA

main81550-90K00iBJ70,73,75,FJ7#..(HT,SOT)..(GEN,ME)198608-199001

12V

main81550-90K03iBJ70..RHD..SOT198608-199001

24V

main81550-90K08iBJ75,FJ75,HJ75..PIC198608-199001

main81550-90K09iBJ70,73,74,FJ7#,HJ75..ARL198608-199001

main81550-90K11iFJ75,HJ75..SA198608-199001

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16015×2iBJ70..RHD..SOT198605-199001

24V 21/5W,24V 21/5W(TAIL & STOP)

main99132-11210×2iHJ75..5F..GEN198411-198510

12V 21W,*SA,12V 21W(TURN & BACK)

main99132-11230×4iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

12V 23W,12V 23W(TURN & BACK)

main99132-21210×2iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

12V 21/5W,12V 21/5W(TAIL & STOP)

main99134-11250×4iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198605

24V 25W,24V 25W(TURN & BACK)

81551LENS, REAR COMBINATION LAMP, RH

main81551-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198510

12V

main81551-90K03iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198605

24V

main81551-90K09iBJ70,FJ70,75,HJ75,RJ70..(HT,SOT)..ARL198411-198510

W/O RR SEAT

main81551-95400iBJ75,FJ75,HJ75..PIC198411-199001

sub81554-60441

main81551-95403iFJ75..RHD..5F..GEN..CBU198411-198510

*SA

sub81551-95417

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-90K00iLJ70,RJ70198510-199001

12V

main81555-90K03iBJ70..RHD..SOT198608-199001

24V

main81555-90K09iBJ70,73,74,FJ7#,HJ75..ARL198510-199001

81560LAMP ASSY, REAR COMBINATION, LH

main81560-69105iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198510

12V

main81560-69135iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198608

24V

main81560-69165iBJ75,FJ75,HJ75..PIC198411-198608

main81560-69175iBJ70,73,74,FJ7#,HJ75..ARL198510-198608

main81560-69185iFJ75,HJ75..SA198510-198608

main81560-90K00iBJ70,73,75,FJ7#,HJ75..(HT,SOT)..(GEN,ME)198608-199001

12V

main81560-90K03iBJ70..RHD..SOT198608-199001

24V

main81560-90K08iBJ75,FJ75,HJ75..PIC198608-199001

main81560-90K09iBJ70,73,74,FJ7#,HJ75..ARL198608-199001

main81560-90K11iFJ75,HJ75..SA198608-199001

81561LENS, REAR COMBINATION LAMP, LH

main81561-90K00iBJ70,73,75,FJ7#,HJ75..(HT,SOT)..(GEN,ME)198510-199001

12V

main81561-90K03iBJ70..RHD..SOT198608-199001

24V

main81561-90K09iBJ70,73,74,FJ7#,HJ75..ARL198510-199001

main81561-95400iBJ75,FJ75,HJ75..PIC198411-199001

sub81564-60371

main81561-95403iHJ75..5F..GEN198411-198510

*SA

sub81561-95418

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-90K00iBJ70,73,75,FJ7#,HJ75..(HT,SOT)..(GEN,ME)198510-199001

12V

main81555-90K03iBJ70..RHD..SOT;BJ70..RHD..5F..GEN198411-198608

24V

main81555-90K09iBJ70,FJ70,75,HJ75,RJ70..(HT,SOT)..ARL198411-198510

W/O RR SEAT

9015950081

main90159-50081

9018905037

main90189-05037

9 parts on this diagram · 2 diagrams in section
