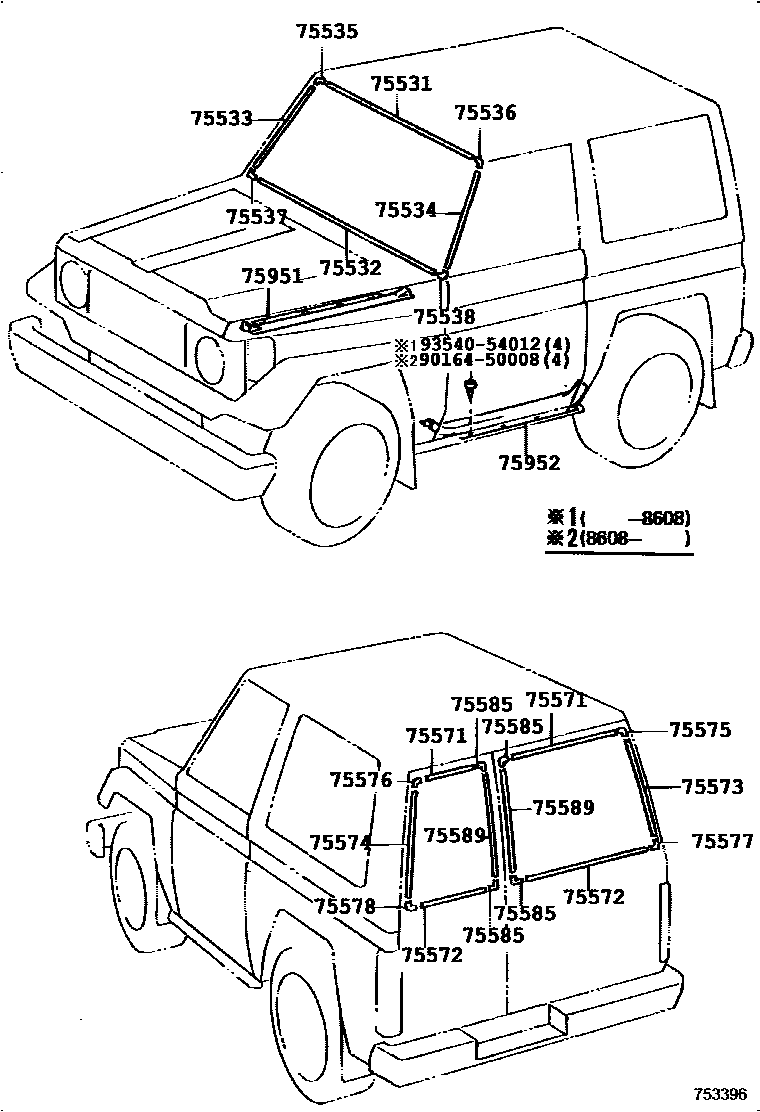

MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-90K00iBJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198411-199001

sub75535-90K00

75532MOULDING, WINDSHIELD, LOWER

main75535-90K00iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME)198411-199001

main75535-90K01iBJ73,FJ73..GEN,ME198411-199001

sub75535-90K00

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-90K00iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME)198411-199001

main75533-90K01iBJ73,FJ73..GEN,ME198411-199001

sub75533-90K00

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75533-90K00iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME)198411-199001

main75533-90K01iBJ73,FJ73..GEN,ME198411-199001

sub75533-90K00

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-90K00iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME)198411-199001

main75541-90K01iBJ73,FJ73..GEN,ME198411-199001

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75541-90K00iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME)198411-199001

main75541-90K01iBJ73,FJ73..GEN,ME198411-199001

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75543-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198411-199001

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75543-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198411-199001

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-90K00iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198411-199001

RH

sub75575-90K00

main75571-90K01iBJ75,FJ75,HJ75..HT..(GEN,ME)198411-199001

RH

sub75575-90K00

main75572-90K00iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198411-199001

LH

sub75572-90K01

main75572-90K01iBJ75,FJ75,HJ75..HT..(GEN,ME)198411-199001

LH

75572MOULDING, BACK WINDOW, LOWER

main75575-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME)198411-199001

RH

main75576-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME)198411-199001

LH

sub75589-90K01

75573MOULDING, BACK WINDOW SIDE, RH

main75573-90K01iBJ75,FJ75,HJ75..HT..(GEN,ME)198411-199001

main75576-90K00iBJ70,FJ70,LJ70,RJ70..SOT..(GEN,ME)198411-199001

W/*DTY FRAME

sub75589-90K01

main75589-90K00iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198411-199001

sub75589-90K01

75574MOULDING, BACK WINDOW SIDE, LH

main75573-90K01iBJ75,FJ75,HJ75..HT..(GEN,ME)198411-199001

main75576-90K00iBJ70,FJ70,LJ70,RJ70..SOT..(GEN,ME)198411-199001

W/*DTY FRAME

sub75589-90K01

main75589-90K00iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198411-199001

sub75589-90K01

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME)198411-199001

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME)198411-199001

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-90K00iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198411-199001

main75583-90K01iBJ75,FJ75,HJ75..HT..(GEN,ME)198411-199001

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-90K00iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198411-199001

main75583-90K01iBJ75,FJ75,HJ75..HT..(GEN,ME)198411-199001

75585MOULDING, BACK WINDOW MOULDING JOINT, CENTER

main75585-90K00iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME)198411-199001

75589MOULDING, BACK WINDOW OUTSIDE, CENTER

main75576-90K00iBJ73,FJ73..GEN,ME198411-199001

W/*DTY FRAME

sub75589-90K01

main75589-90K00iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198411-199001

sub75589-90K01

main75589-90K01iBJ75,FJ75,HJ75..HT..(GEN,ME)198411-199001

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-90K00-03iBJ7#,FJ7#,HJ75,LJ70,RJ70198608-199001

GRAY,SHADOW GRAY

sub67913-90K00

main67913-90K00-03iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198608

W/MAT OR CARPET,GRAY,SHADOW GRAY

sub67913-90K00

main67913-90K00-06iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198608

W/MAT OR CARPET,BROWN,SEPIA BROWN

sub67913-90K00

main67913-90K00-06iBJ7#,FJ7#,HJ75,LJ70,RJ70198608-199001

BROWN,SEPIA BROWN

sub67913-90K00

main67913-90K01-03iFJ73..SOT..GEN198411-198608

GRAY,SHADOW GRAY

main67913-90K01-06iBJ70,75,FJ70,75,LJ70,RJ70..GEN,ME198411-198608

BROWN,SEPIA BROWN

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-90K00-03iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198608

W/MAT OR CARPET,GRAY,SHADOW GRAY

sub67913-90K00

main67913-90K00-03iBJ7#,FJ7#,HJ75,LJ70,RJ70198608-199001

GRAY,SHADOW GRAY

sub67913-90K00

main67913-90K00-06iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198608

W/MAT OR CARPET,BROWN,SEPIA BROWN

sub67913-90K00

main67913-90K00-06iBJ7#,FJ7#,HJ75,LJ70,RJ70198608-199001

BROWN,SEPIA BROWN

sub67913-90K00

main67913-90K01-03iFJ73..SOT..GEN198411-198608

GRAY,SHADOW GRAY

main67913-90K01-06iLJ70..LHD..TD;BJ70,75,FJ70,75,HJ75,LJ70,RJ70..MTM..(CBR,DSL)..GEN198411-198608

BROWN,SEPIA BROWN

9016450008

main90164-50008

9354054012

main93540-54012

22 parts on this diagram · 2 diagrams in section
