E
EPC Data

LOCK CYLINDER SET

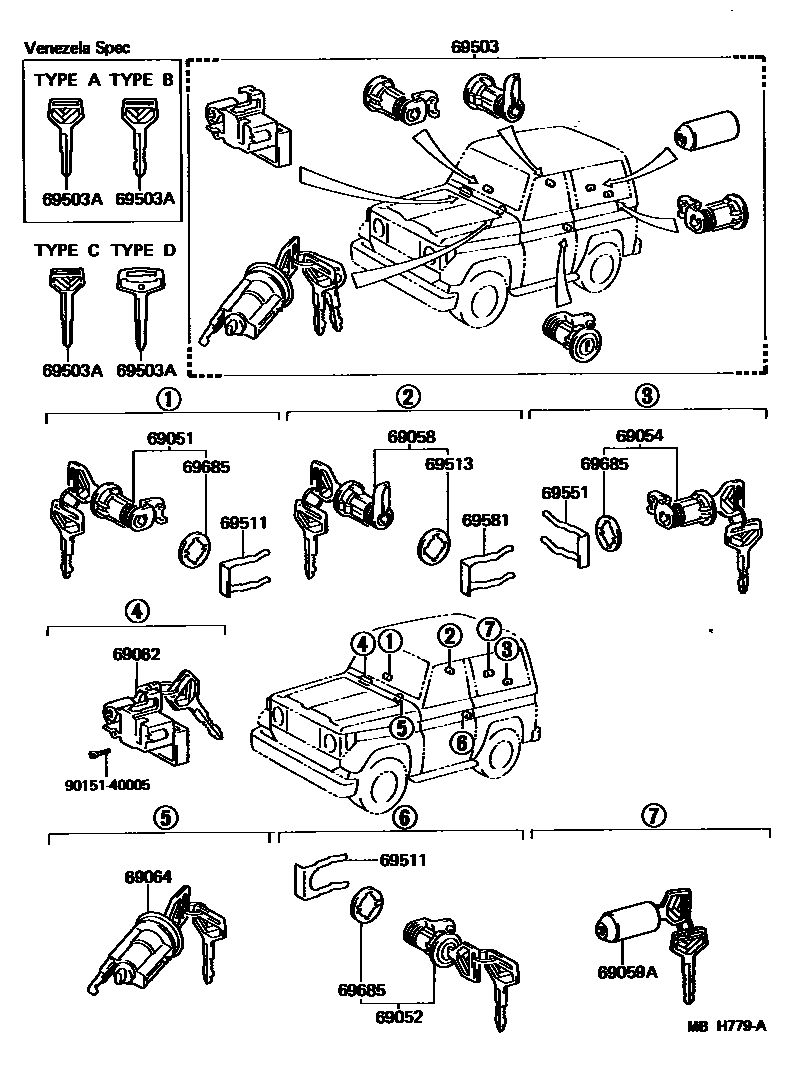

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-10080i198411-198708
sub69051-10081
main69051-10160i198808-199001
sub69051-60081
main69051-32020i198411-198510
VENEZUELA SPEC
main69051-90K01i198411-198510
VENEZUELA SPEC
main69051-90K07i198708-198808
sub69051-10160
main69051-90K08i198808-199001
sub69051-60080
main69051-90K09i198808-199001
sub69051-60080
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-10080i198411-198708
sub69052-10081
main69052-10160i198808-199001
sub69052-60081
main69052-32020i198411-198510
VENEZUELA SPEC
main69052-90K01i198411-198510
VENEZUELA SPEC
sub69052-32020
main69052-90K07i198708-198808
sub69052-10160
main69052-90K08i198808-199001
sub69052-60080
main69052-90K09i198808-199001
sub69052-60080
69054CYLINDER & KEY SET, BACK DOOR LOCK
main69052-10080i198411-199001
sub69052-10081
main69052-32020i198411-198510
VENEZUELA SPEC
69058CYLINDER & KEY SET, FUEL FILLER LID
main69058-16050i198411-199001
sub69058-60040
main69058-16060i198411-198510
VENEZUELA SPEC
sub69058-60090
69059ACYLINDER & KEY SET, SPARE WHEEL LOCK
main69059-90K00i198411-199001
sub69059-60050
main69059-90K01i198411-198510
VENEZUELA SPEC
sub69059-60070
main69059-90K04i198411-198510
VENEZUELA SPEC
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-90K01-01i198411-198510
VENEZUELA SPEC,BLACK
sub69056-60050
main69056-90K03-01i198411-199001
BLACK
sub69056-60041
sub69056-90K03
main69056-90K05-01i198411-198510
VENEZUELA SPEC,BLACK
sub69056-60050
sub69056-90K05
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-90K00i198411-198510
VENEZUELA SPEC
sub69057-90K07
main69057-90K01i198411-198510
VENEZUELA SPEC
sub69057-90K07
main69057-90K03i198411-198510
W/QUICK GLOW
sub69057-90K02
main69057-90K04i198411-198510
W/*DTY DOOR FRAME
main69057-90K04i198411-198510
W/QUICK GLOW
main69057-90K05i198411-198510
sub69057-90K06
main69057-90K06i198411-198510
main69057-90K09i198510-198608
W/QUICK GLOW
sub69057-60060
main69057-90K09i198510-199001
sub69057-60060
main69057-90K10i198510-199001
W/QUICK GLOW
sub69057-60070
main69057-90K10i198510-199001
W/*DTY DOOR FRAME
sub69057-60070
main69057-90K11i198510-199001
sub69057-60080
main69057-90K12i198510-199001
sub69057-60090
main69057-90K17i198808-199001
sub69057-60110
main69057-90K18i198808-199001
sub69057-60110
69503CYLINDER SET, LOCK
main69005-90K00-01i198411-198510
NO.3,BLACK
main69005-90K03-01i198411-198510
W/QUICK GLOW,NO.3,BLACK
main69005-90K03-01i198411-198510
NO.3,BLACK
main69005-90K03-01i198411-198510
*DTY DOOR FRAME,NO.3,BLACK
main69005-90K05i198411-198510
VENEZUELA SPEC,NO.10
main69005-90K06i198411-198510
IRELAND SPEC,NO.10
main69005-90K06i198411-198510
NO.10
main69005-90K08i198411-198510
NO.10
main69005-90K10i198411-198510
NO.10
main69005-90K12-01i198411-198510
NO.5,BLACK
main69005-90K13-01i198411-198510
NO.3,BLACK
main69005-90K13-01i198411-198510
IRELAND SPEC,NO.3,BLACK
main69005-90K14-01i198411-198510
VENEZUELA SPEC,NO.3,BLACK
main69005-90K15i198411-198510
*DTY DOOR FRAME,NO.10
main69005-90K19i198411-198510
NO.13
main69005-90K21i198411-198510
NO.10
main69005-90K23i198411-198510
NO.13
main69005-90K24i198411-198510
NO.13
main69005-90K25i198411-198510
NO.13
main69005-90K26-01i198411-198510
NO.5,BLACK
main69005-90K27i198411-198510
NO.1
main69005-90K28-01i198411-198510
NO.2,BLACK
main69005-90K29-01i198411-198510
NO.3,BLACK
main69005-90K30-01i198411-198510
NO.3,BLACK
main69005-90K31-01i198411-198510
NO.5,BLACK
main69005-90K32i198411-198510
NO.1
main69005-90K33-01i198411-198510
NO.2,BLACK
main69005-90K34i198411-198510
NO.10
main69005-90K35-01i198411-198510
NO.5,BLACK
main69005-90K36-01i198411-198510
NO.3,BLACK
main69005-90K37i198411-198510
NO.13
main69005-90K38-01i198411-198510
NO.5,BLACK
main69005-90K39-01i198411-198510
NO.3,BLACK
main69005-90K47-01i198411-198510
VENEZUELA SPEC,NO.2,BLACK
main69005-90K48i198411-198510
VENEZUELA SPEC,NO.1
main69005-90K49-01i198411-198510
VENEZUELA SPEC,NO.3,BLACK
main69005-90K50i198411-198510
VENEZUELA SPEC,NO.10
main69005-90K51-01i198411-198510
VENEZUELA SPEC,NO.5,BLACK
main69005-90K52i198411-198510
VENEZUELA SPEC,NO.13
main69005-90K53-01i198411-198510
NO.7,BLACK
main69005-90K54i198411-198510
NO.16
main69005-90K55-01i198411-198510
NO.6,BLACK
main69005-90K56i198411-198510
NO.14
main69005-90K57-01i198411-198510
NO.6,BLACK
main69005-90K58i198411-198510
NO.14
main69005-90K59-01i198411-198510
NO.7,BLACK
main69005-90K60i198411-198510
NO.16
main69005-90K61-01i198411-198510
NO.6,BLACK
main69005-90K62i198411-198510
NO.14
main69005-90K63-01i198411-198510
NO.4,BLACK
main69005-90K63-01i198411-198510
*DTY DOOR FRAME,NO.4,BLACK
main69005-90K63-01i198411-198510
W/QUICK GLOW,NO.4,BLACK
main69005-90K65-01i198411-198510
NO.4,BLACK
main69005-90K65-01i198411-198510
IRELAND SPEC,NO.4,BLACK
main69005-90K67-01i198411-198510
NO.6,BLACK
main69005-90K68i198411-198510
*DTY DOOR FRAME,NO.11
main69005-90K69i198411-198510
NO.11
main69005-90K69i198411-198510
IRELAND SPEC,NO.11
main69005-90K71i198411-198510
NO.14
main69005-90K72-01i198411-198510
NO.4,BLACK
main69005-90K73-01i198411-198510
NO.4,BLACK
main69005-90K74-01i198411-198510
NO.6,BLACK
main69005-90K75i198411-198510
NO.11
main69005-90K76i198411-198510
NO.14
main69005-90K77-01i198411-198510
VENEZUELA SPEC,NO.5,BLACK
main69005-90K78i198411-198510
VENEZUELA SPEC,NO.13
main69005-90K80-01i198411-198510
VENEZUELA SPEC,NO.6,BLACK
main69005-90K81i198411-198510
VENEZUELA SPEC,NO.11
main69005-90K82i198411-198510
VENEZUELA SPEC,NO.14
main69005-90K83-01i198411-198510
NO.8,BLACK
main69005-90K84-01i198411-198510
NO.9,BLACK
main69005-90K85-01i198411-198510
NO.9,BLACK
main69005-90K86i198411-198510
NO.17
main69005-90K87i198411-198510
NO.12
main69005-90K88i198411-198510
NO.12
main69005-90K89-01i198411-198510
NO.8,BLACK
main69005-90K90-01i198411-198510
NO.9,BLACK
main69005-90K91i198411-198510
NO.17
main69005-90K92i198411-198510
NO.12
main69005-90K93-01i198411-198501
VENEZUELA SPEC,NO.12,BLACK
main69005-90K94-01i198411-198501
VENEZUELA SPEC,NO.9,BLACK
main69005-90K95i198411-198501
VENEZUELA SPEC,NO.17
main69005-90K96i198411-198501
VENEZUELA SPEC,NO.12
main69005-90K97-01i198510-199001
NO.3,BLACK
sub69005-90K97
main69005-90K97-01i198608-199001
*DTY DOOR FRAME,NO.3,BLACK
sub69005-90K97
main69005-90K98-01i198510-199001
NO.3,BLACK
sub69005-60711
sub69005-90K98
main69005-90K98-01i198510-199001
*DTY DOOR FRAME,NO.3,BLACK
sub69005-60711
sub69005-90K98
main69005-90K98-01i198510-199001
W/QUICK GLOW,NO.3,BLACK
sub69005-60711
sub69005-90K98
main69005-90K99i198510-199001
NO.10
sub69005-60770
main69005-90K99i198510-198608
IRELAND SPEC,NO.10
sub69005-60770
main69005-90L00i198510-199001
NO.10
main69005-90L01i198510-199001
NO.10
sub69005-6A171
main69005-90L02i198510-199001
NO.13
main69005-90L03i198510-199001
NO.13
main69005-90L04-01i198510-199001
NO.3,BLACK
sub69005-60740
sub69005-90L04
main69005-90L04-01i198510-198608
IRELAND SPEC,NO.3,BLACK
sub69005-60740
sub69005-90L04
main69005-90L05-01i198510-199001
NO.5,BLACK
sub69005-6A050
sub69005-90L05
main69005-90L06i198510-199001
*DTY DOOR FRAME,NO.10
main69005-90L07i198510-199001
NO.13
sub69005-60870
main69005-90L08i198510-199001
NO.10
sub69005-6A150
main69005-90L09i198510-199001
NO.13
sub69005-6A130
main69005-90L10-01i198510-199001
NO.5,BLACK
sub69005-90L10
main69005-90L11i198510-199001
NO.1
sub69005-6A160
main69005-90L12-01i198510-199001
NO.2,BLACK
sub69005-6A080
sub69005-90L12
main69005-90L13-01i198510-199001
NO.3,BLACK
sub69005-6A060
sub69005-90L13
main69005-90L14-01i198510-199001
NO.3,BLACK
sub69005-60660
sub69005-90L14
main69005-90L15-01i198510-199001
NO.5,BLACK
sub69005-90L15
main69005-90L16i198510-199001
NO.1
sub69005-60890
main69005-90L17-01i198510-199001
NO.2,BLACK
sub69005-60830
sub69005-90L17
main69005-90L18i198510-199001
NO.10
sub69005-60880
main69005-90L19-01i198510-199001
NO.5,BLACK
sub69005-60810
sub69005-90L19
main69005-90L20-01i198510-199001
NO.3,BLACK
sub69005-60820
sub69005-90L20
main69005-90L21i198510-199001
NO.13
sub69005-60560
main69005-90L22-01i198510-199001
NO.5,BLACK
sub69005-90L22
main69005-90L23-01i198510-199001
NO.3,BLACK
sub69005-6A070
sub69005-90L23
main69005-90L24-01i198510-199001
NO.7,BLACK
sub69005-90L24
main69005-90L25i198510-199001
NO.16
main69005-90L26-01i198510-199001
NO.6,BLACK
sub69005-6A010
sub69005-90L26
main69005-90L27i198510-199001
NO.14
sub69005-6A090
main69005-90L28-01i198510-199001
NO.6,BLACK
sub69005-90L28
main69005-90L29i198510-199001
NO.14
sub69005-60590
main69005-90L30-01i198510-199001
NO.7,BLACK
sub69005-90L30
main69005-90L31i198510-199001
NO.16
main69005-90L32-01i198510-199001
NO.6,BLACK
sub69005-60780
sub69005-90L32
main69005-90L33i198510-199001
NO.14
sub69005-60840
main69005-90L34-01i198510-199001
*DTY DOOR FRAME,NO.4,BLACK
sub69005-60700
sub69005-90L34
main69005-90L34-01i198510-199001
W/QUICK GLOW,NO.4,BLACK
sub69005-60700
sub69005-90L34
main69005-90L34-01i198510-199001
NO.4,BLACK
sub69005-60700
sub69005-90L34
main69005-90L35-01i198510-199001
NO.6,BLACK
sub69005-60720
sub69005-90L35
main69005-90L36i198510-199001
*DTY DOOR FRAME,NO.11
main69005-90L37i198510-199001
NO.11
sub69005-60760
main69005-90L37i198510-198608
IRELAND SPEC,NO.11
sub69005-60760
main69005-90L38i198510-199001
NO.14
sub69005-60750
main69005-90L39-01i198608-199001
*DTY DOOR FRAME,NO.4,BLACK
sub69005-60620
sub69005-90L39
main69005-90L39-01i198510-199001
NO.4,BLACK
sub69005-60620
sub69005-90L39
main69005-90L40-01i198510-199001
NO.4,BLACK
sub69005-60650
sub69005-90L40
main69005-90L41-01i198510-199001
NO.6,BLACK
sub69005-60640
sub69005-90L41
main69005-90L42i198510-199001
NO.11
sub69005-60680
main69005-90L43i198510-199001
NO.14
sub69005-60670
main69005-90L44-01i198510-199001
NO.4,BLACK
sub69005-60730
sub69005-90L44
main69005-90L44-01i198510-198608
IRELAND SPEC,NO.4,BLACK
sub69005-60730
sub69005-90L44
main69005-90L45-01i198510-199001
NO.8,BLACK
sub69005-6A040
sub69005-90L45
main69005-90L46-01i198510-199001
NO.9,BLACK
sub69005-6A020
sub69005-90L46
main69005-90L47-01i198510-199001
NO.9,BLACK
sub69005-6A030
sub69005-90L47
main69005-90L48i198510-199001
NO.17
sub69005-6A120
main69005-90L49i198510-199001
NO.12
sub69005-6A100
main69005-90L50i198510-199001
NO.12
sub69005-6A110
main69005-90L51-01i198510-199001
NO.8,BLACK
sub69005-60800
sub69005-90L51
main69005-90L52-01i198510-199001
NO.9,BLACK
sub69005-60790
sub69005-90L52
main69005-90L53i198510-199001
NO.17
sub69005-60860
main69005-90L54i198510-199001
NO.12
sub69005-60850
main69005-90L70i198808-199001
NO.10
sub69005-6A171
main69005-90L71i198808-199001
NO.10
sub69005-6A180
69503AKEY, BLANK
main90999-00072i198411-198510
MASTER KEY,TYPE D
main90999-00084i198411-198510
MASTER KEY,W(*68),VENEZUELA SPEC,TYPE A
sub90999-00214
main90999-00085i198411-199001
MASTER KEY,TYPE C
main90999-00086i198411-198510
MASTER KEY,VENEZUELA SPEC,TYPE A
main90999-00091i198411-198510
MASTER KEY,W(*70),VENEZUELA SPEC,TYPE B
sub90999-00086
main90999-00092i198411-198510
MSTER KEY,W(*69),VENEZUELA SPEC,TYPE B
sub90999-00084
main90999-00116i198510-199001
MASTER KEY,TYPE D
69511RETAINER, FRONT DOOR LOCK CYLINDER
main69511-32010i198411-199001
69513PAD, FUEL FILLER LID LOCK CYLINDER
main69513-32010i198411-199001
69551RETAINER, BACK DOOR LOCK CYLINDER
main69511-32010i198411-199001
69581RETAINER, FUEL FILLER LID CYLINDER
main69512-87001i198411-199001
69685PAD, LOCK CYLINDER
main69513-32010i198411-199001
9015140005
main90151-40005

15 parts on this diagram · 3 diagrams in section

LOCK CYLINDER SET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
