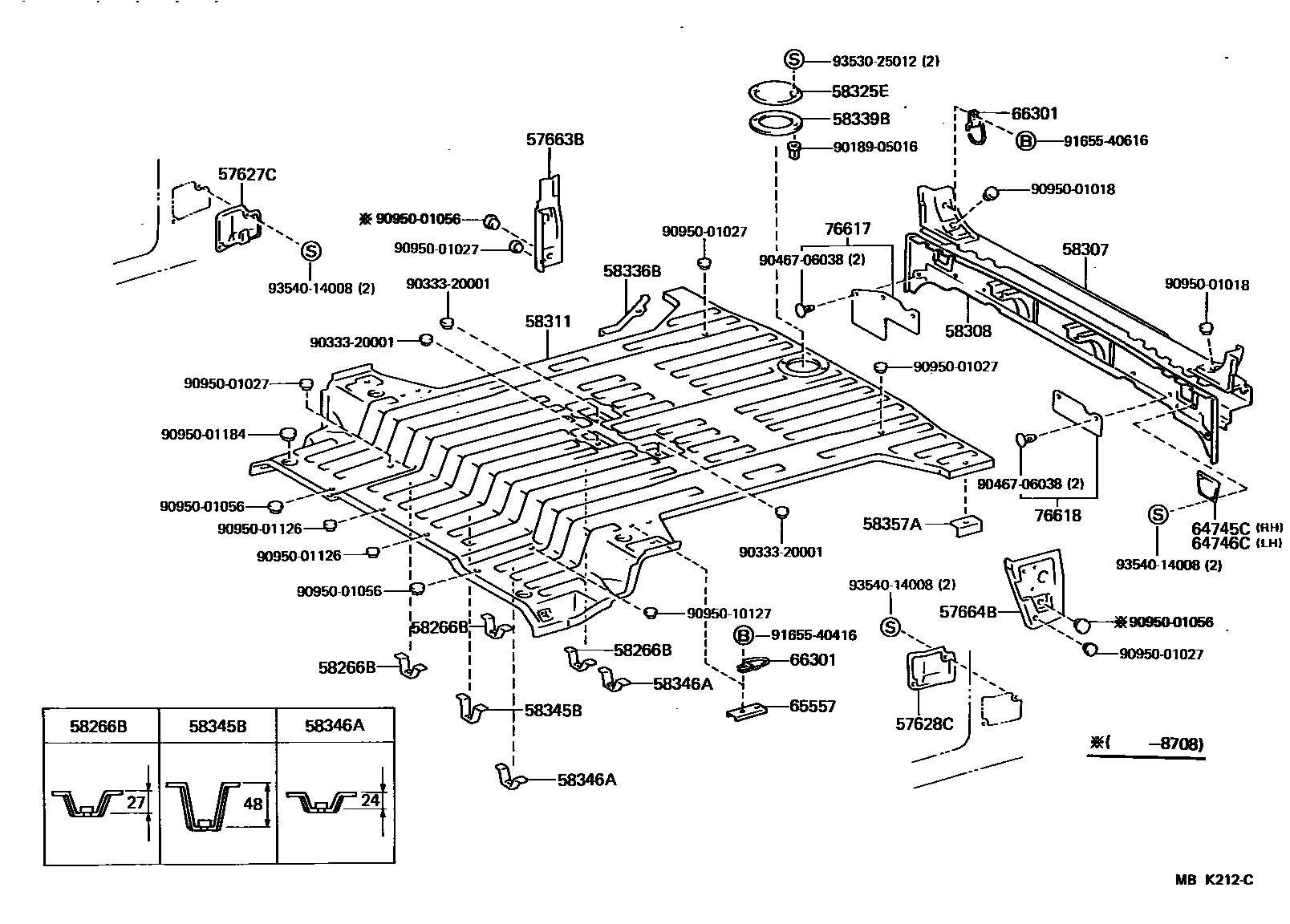

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-90K00iBJ70,FJ70,LJ70,RJ70198411-199001

sub57627-60020

main57627-90K01iBJ73,74,FJ73198411-199001

sub57627-60030

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-90K00iBJ70,FJ70,LJ70,RJ70198411-199001

main57628-90K01iBJ73,74,FJ73198411-199001

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

sub57663-60050

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-90K00iBJ70,73,74,FJ70,73,LJ70,RJ70198411-198708

main57664-90K02iBJ70,73,74,FJ70,73,LJ70,RJ70198708-199001

main58306-90K00iBJ75,FJ75,HJ75..HT198411-198708

main58306-90K01iBJ75,FJ75,HJ75..HT198708-199001

58266BBRACKET, FUEL TUBE CLAMP

main58266-90K00×2iBJ70,FJ70,LJ70,RJ70198411-199001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-90K00iBJ70,73,74,FJ70,73,LJ70,RJ70198411-198608

main58307-90K01iBJ70,73,74,FJ70,73,LJ70,RJ70198411-198608

W/RR MAT

main58307-90K02iBJ75,FJ75,HJ75..HT198411-198608

main58307-90K03iBJ75,FJ75,HJ75..HT198411-198608

W/RR MAT

main58307-90K10iBJ70,73,74,FJ70,73,LJ70,RJ70198510-198608

W/ROPE HOOK

main58307-90K11iBJ70,73,74,FJ70,73,LJ70,RJ70198510-198608

W/RR MAT,ROPE HOOK

main58307-90K13iFJ70..SOT..5F..GEN198805-199001

W/SUB TANK

main58307-90K17iBJ70,73,74,FJ70,73,LJ70,RJ70198608-199001

sub58307-60090

main58307-90K19iBJ75,FJ75,HJ75..HT198608-199001

sub58307-60110

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-90K00iBJ70,73,FJ70,73,LJ70,RJ70198411-199001

main58308-90K01iBJ75,FJ75,HJ75..HT198411-199001

58311PAN, REAR FLOOR

main58311-90K00iBJ70,FJ70..ARL198510-199001

main58311-90K02iFJ70,RJ70..VX..ME198608-199001

W/*FFRS,RR SEAT BELT

sub58311-60160

main58311-90K05iBJ75,FJ75,HJ75..HT..(ARL,GEN)198411-198510

W/*FFRS,RR SEAT BELT

main58311-90K07iBJ73,FJ73..SOT198411-199001

main58311-90K08iFJ70,RJ70..LX..ME198608-199001

W/*FFRS,W/O RR SEAT BELT

sub58311-60170

main58311-90K09iBJ73,74,FJ73..ARL,GEN198510-198608

W/*FFRS,RR SEAT BELT

sub58311-60290

main58311-90K11iFJ73..HT..ME198510-198608

W/*FFRS,W/O RR SEAT BELT

sub58311-60300

main58311-90K14iBJ75,FJ75,HJ75..HT..GEN198411-198510

W/*FFRS,W/O RR SEAT BELT

main58311-90K17iBJ75,FJ75,HJ75..HT198411-198510

main58311-90K25iBJ75,FJ75,HJ75..HT..(ARL,GEN)198510-198608

W/*FFRS,RR SEAT BELT

main58311-90K28iBJ75,FJ75,HJ75..HT..GEN198510-198608

W/*FFRS,W/O RR SEAT BELT

main58311-90K31iBJ75,FJ75,HJ75..HT198510-198608

main58311-90K32iFJ75,HJ75..HT198510-198608

W/*0DAC

main58311-90K36iBJ75,FJ75,HJ75..HT..(ARL,GEN)198608-198708

W/*FFRS,RR SEAT BELT

main58311-90K37iBJ75,FJ75,HJ75..HT..GEN198608-198708

W/*FFRS

main58311-90K38iBJ75,FJ75,HJ75..HT198608-198708

main58311-90K40iFJ75,HJ75..HT198608-198708

W/*0DAC

main58311-90K46iFJ75,HJ75..HT198708-199001

W/*ODAC

main58311-90K47iBJ75,FJ75,HJ75..HT..(ARL,GEN)198708-199001

W/*FFRS,RR SEAT BELT

main58311-90K48iBJ75,FJ75,HJ75..HT..GEN198708-199001

W/*FFRS

main58311-90K49iBJ75,FJ75,HJ75..HT198708-199001

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-90K00iBJ73,74,FJ73198411-199001

58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-90K00×2iBJ70,FJ70,LJ70,RJ70198411-199001

58357AREINFORCEMENT, JACK CARRIER

main58357-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198708

main58357-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198708-199001

64745CCOVER, LOWER BACK SERVICE HOLE, RH

main64745-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

64746CCOVER, LOWER BACK SERVICE HOLE, LH

main64746-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

65557RETAINER, ROPE HOOK

main65557-90K00×2iLJ70..LHD198510-198608

66301HOOK SUB-ASSY, ROPE

main66301-90K00×4iFJ70,73,RJ70..(LX,VX)..ME198608-199001

W/PARALLEL SEAT

sub66301-90K02

76617MUDGUARD, LOWER BACK PANEL, FRONT RH

main76617-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198606

main76617-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198606-199001

76618MUDGUARD, LOWER BACK PANEL, FRONT LH

main76618-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198606

main76618-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198606-199001

9018905016

main90189-05016

9033320001

main90333-20001

9046706038

main90467-06038

9095001018

main90950-01018

9095001027

main90950-01027

9095001056

main90950-01056

9095001126

main90950-01126

9095001184

main90950-01184

9095010127

main90950-10127

9165540416

main91655-40416

9165540616

main91655-40616

9353025012

main93530-25012

9354014008

main93540-14008

33 parts on this diagram · 3 diagrams in section
