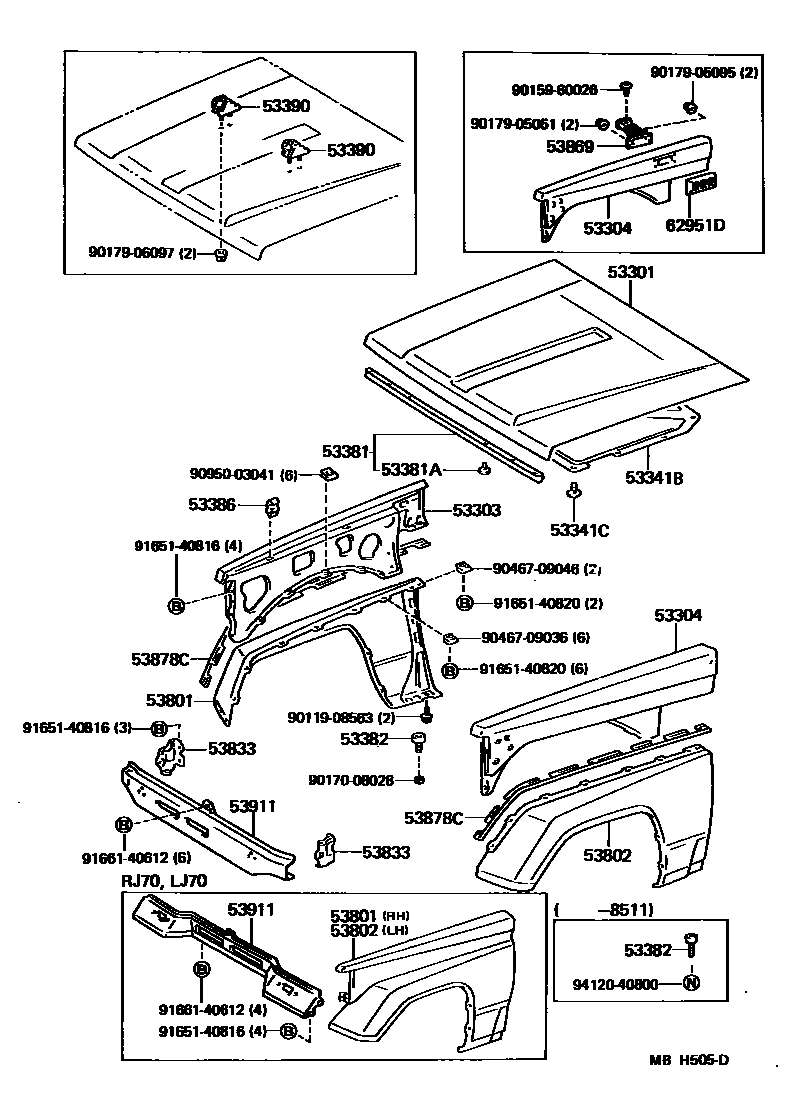

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-90K00iLJ70,RJ70..SOT198411-198507

W/WINDSHIELD REST CRADLE

sub53301-90K11

main53301-90K01iLJ70,RJ70198411-198507

sub53301-90K12

main53301-90K03iBJ73,FJ73..HT198411-198507

W/WINDSHIELD REST CRADLE

sub53301-90K14

main53301-90K05iFJ75..HT..ME;FJ75..ARL,GEN;BJ7#,FJ70,73,HJ75198411-198507

sub53301-90K13

main53301-90K11iLJ70,RJ70..SOT198507-198608

W/WINDSHIELD REST CRADLE

sub53301-90K25

main53301-90K12iLJ70,RJ70198507-198608

sub53301-90K26

main53301-90K13iFJ75..HT..ME;FJ75..ARL,GEN,SA;BJ7#,FJ70,73,HJ75198507-198608

sub53301-90K27

main53301-90K14iBJ70,FJ70,73..SOT198507-198608

W/WINDSHIELD REST CRADLE

sub53301-90K28

main53301-90K25iLJ70,RJ70..SOT198608-199001

W/WINDSHIELD REST CRADLE

main53301-90K26iLJ70,RJ70198608-199001

main53301-90K27iFJ7#..(HT,SOT)..ME198608-199001

sub53301-60150

main53301-90K28iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-199001

W/WINDSHIELD REST CRADLE

sub53301-60170

53303PANEL SUB-ASSY, HOOD SIDE, RH

main53303-90K03iFJ75,HJ75..SA198510-199001

main53303-90K03iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

*SA

main53303-90K04iFJ75,HJ75..SA198510-198608

W/RADIO

main53303-90K04iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

*SA,W/RADIO

main53303-90K06iBJ70,73,75,FJ70,75,HJ75..RHD..STD..(ARL,GEN)198411-199001

main53303-90K07iBJ7#,FJ7#,HJ75..RHD..(ARL,GEN)198411-199001

W/RADIO

main53303-90K09iBJ7#,FJ7#,HJ75..MTM198411-199001

W/SNORKEL

53304PANEL SUB-ASSY, HOOD SIDE, LH

main53304-90K03iFJ75,HJ75..SA198510-198608

sub53304-90K12

main53304-90K03iFJ75,HJ75..RHD..5F..GEN..CBU198411-198510

*SA

sub53304-90K12

main53304-90K07iBJ7#,FJ7#,HJ75..ARL,GEN,ME198411-198608

sub53304-90K15

main53304-90K08iBJ70,75,FJ7#,HJ75..LHD198411-198608

W/RADIO

sub53304-90K16

main53304-90K08iBJ7#,FJ7#,HJ75..RHD198411-198608

W/SNORKEL,RADIO

sub53304-90K16

main53304-90K12iFJ75,HJ75..SA198608-199001

sub53304-60100

main53304-90K15iHJ75..RHD..GEN198608-199001

sub53304-60050

main53304-90K16iBJ70,73,75,FJ7#,HJ75..LHD198608-199001

W/RADIO

sub53304-60060

main53304-90K16iHJ75..RHD..GEN198608-199001

W/SNORKEL,RADIO

sub53304-60060

main53304-90K23iHJ75..ARL198708-199001

W/SNORKEL,RADIO

main53304-90K24iHJ75..ARL198708-199001

53341BINSULATOR, HOOD

main53341-90K00iLJ70,RJ70198411-198510

sub53341-90K04

main53341-90K01iHJ75..5F..GEN198503-198510

*SA

sub53341-90K05

main53341-90K01iBJ70,73,FJ7#,HJ75..ARL198411-198510

sub53341-90K05

main53341-90K04iLJ70,RJ70198510-199001

main53341-90K05iHJ75..SA198510-199001

sub53341-90K06

main53341-90K06iHJ75..SA198601-199001

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iHJ75..SA198411-198702

main90467-09006iHJ75..5F..GEN198503-198510

*SA

main90467-09014iLJ70,RJ70..GEN,ME198702-199001

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-90K00iLJ70,RJ70198411-199001

main53381-90K01iBJ7#,FJ7#,HJ75198411-199001

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

53382BUMPER, HOOD, FRONT

main53382-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70198511-198805

sub53382-90K01

main53382-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70198805-199001

main53382-95189iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198511

sub53382-90K00

53386BUMPER, HOOD, REAR

main53382-30060iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

sub53384-60030

53390CRADLE ASSY, WINDSHIELD REST

main53390-90K00iBJ73,74,FJ73..HT198411-199001

53801FENDER SUB-ASSY, FRONT RH

main53801-90K04iBJ7#,FJ7#,HJ75198411-199001

main53801-90K07iLJ70,RJ70..LHD198411-199001

main53801-90K08iLJ70,RJ70..RHD198411-199001

W/RADIO

main53801-90K13iBJ70,73,74,FJ70,73198411-199001

W/OVER FENDER

main53801-90K14iLJ70,RJ70..LHD198411-199001

W/OVER FENDER

main53801-90K15iLJ70,RJ70..RHD198411-199001

W/OVER FENDER,RADIO

53802FENDER SUB-ASSY, FRONT LH

main53802-90K04iBJ7#,FJ7#,HJ75198411-199001

main53802-90K08iLJ70,RJ70198411-198510

sub53802-90K21

main53802-90K09iLJ70,RJ70..LHD198411-198510

W/RADIO

sub53802-90K22

main53802-90K15iBJ70,73,74,FJ70,73198411-199001

W/OVER FENDER

main53802-90K16iLJ70,RJ70198411-198510

W/OVER FENDER

sub53802-90K25

main53802-90K17iLJ70,RJ70..LHD198411-198510

W/OVER FENDER,RADIO

sub53802-90K26

main53802-90K21iLJ70,RJ70..LHD..STD198510-199001

main53802-90K22iLJ70,RJ70..LHD198510-199001

W/RADIO

main53802-90K25iLJ70,RJ70198510-199001

W/OVER FENDER

main53802-90K26iLJ70,RJ70..LHD198510-199001

W/OVER FENDER,RADIO

53833PANEL, FRONT FENDER SIDE, LOWER

main53833-90K01iBJ7#,FJ7#,HJ75198411-199001

RH

main53834-90K01iBJ7#,FJ7#,HJ75198411-199001

LH

53869DUCT, FRONT FENDER

main53869-90K00iHJ75..ARL198708-199001

53878CSPACER, FRONT FENDER

main53878-90K00iBJ7#,FJ7#,HJ75198411-199001

RH

main53879-90K00iBJ7#,FJ7#,HJ75198411-199001

LH

53911PANEL, FRONT VALANCE

main53911-90K00iLJ70,RJ70198411-199001

main53911-90K02iBJ7#,FJ7#,HJ75198411-199001

sub53911-60010

62951DLOUVER, QUARTER VENTILATION

main62951-90K00iHJ75..ARL198708-199001

9011908563

main90119-08563

9015960026

main90159-60026

9017008028

main90170-08028

9017905051

main90179-05051

9017905095

main90179-05095

9017906097

main90179-06097

9046709036

main90467-09036

9046709046

main90467-09046

9095003041

main90950-03041

9165140816

main91651-40816

9165140820

main91651-40820

9166140612

main91661-40612

9412040800

main94120-40800

30 parts on this diagram · 2 diagrams in section
