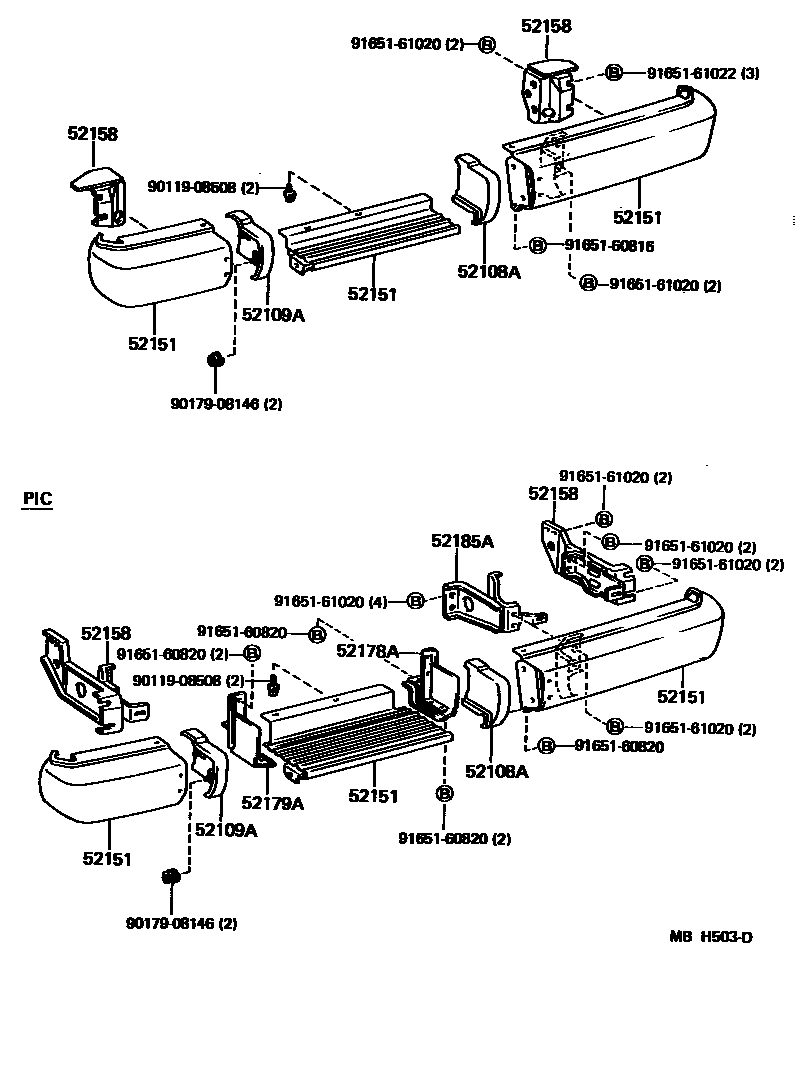

REAR BUMPER & BUMPER STAY

52108ABUMPER SUB-ASSY, REAR SIDE, RH

main52108-60010iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

52109ABUMPER SUB-ASSY, REAR SIDE, LH

main52109-60010iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

52151BUMPER ASSY, REAR

main52106-60030iFJ7#,RJ70..(HT,SOT)..STD..ME198411-199001

RH,W/O LICENSE PLATE

sub52106-60901

main52106-60040iBJ73,74,FJ73,LJ70,RJ70..HT..ARL198608-199001

RH,CHROME PLATING

main52106-60040iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198608

RH,CHROME PLATING,W/O LISENSE

main52106-60050iBJ70,73,FJ70,73,LJ70,RJ70..GEN198411-199001

RH,W/LICENSE PLATE

sub52106-60902

main52106-60050iBJ75..RHD..HT198904-199001

RH,MOZAMBIQUE

sub52106-60902

main52106-60050iBJ75,FJ75,HJ75..PIC..STD..(GEN,ME)198411-199001

RH

sub52106-60902

main52106-60060iBJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL198411-198510

RH,CHROME PLATING,W/LICENSE

main52106-60060iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

RH,CHROME PLATING

main52106-60060iBJ70,73,FJ70,73,LJ70,RJ70..GEN,ME198608-199001

RH,CHROME PLATING,W/LICENCE

main52106-60060iBJ75..RHD..HT198904-199001

RH,MOZAMBIQUE,CHROME PLATING

main52107-60030iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

LH,CHROME PLATING

main52107-60080iBJ75,FJ75,HJ75..PIC..STD..(GEN,ME)198411-199001

LH

sub52107-60902

main52107-90K00iFJ7#,RJ70..(HT,SOT)..STD..ME198510-199001

LH

sub52107-60903

main52107-90K00iBJ75..RHD..HT198904-199001

LH,MOZAMBIQUE

sub52107-60903

main52107-90K01iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198510-199001

LH,CHROME PLATING

main52107-90K01iBJ75..RHD..HT198904-199001

LH,MOZAMBIQUE,CHROME PLATING

main52151-60070iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

CTR,W/PINTLE HOOK

main52151-60070iBJ75..RHD..HT198904-199001

CTR,MOZAMBIQUE,W/PINTLE HOOK

main52151-60090iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

CTR

main52151-60090iBJ75..RHD..HT198904-199001

CTR,MOZAMBIQUE

main52151-60110iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

CTR

52158BRACKET, REAR BUMPER

main52173-60010iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-199001

RH

main52173-60030iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

RH

main52174-60010iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198411-198510

LH

main52174-60030iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

LH

main52174-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT198510-199001

LH

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-60010iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52179-60030iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-60010iBJ75,FJ75,HJ75..PIC..(GEN,ME)198411-199001

9011908508

main90119-08508

9017908146

main90179-08146

9165160816

main91651-60816

9165160820

main91651-60820

9165161020

main91651-61020

9165161022

main91651-61022

13 parts on this diagram · 1 diagram in section
