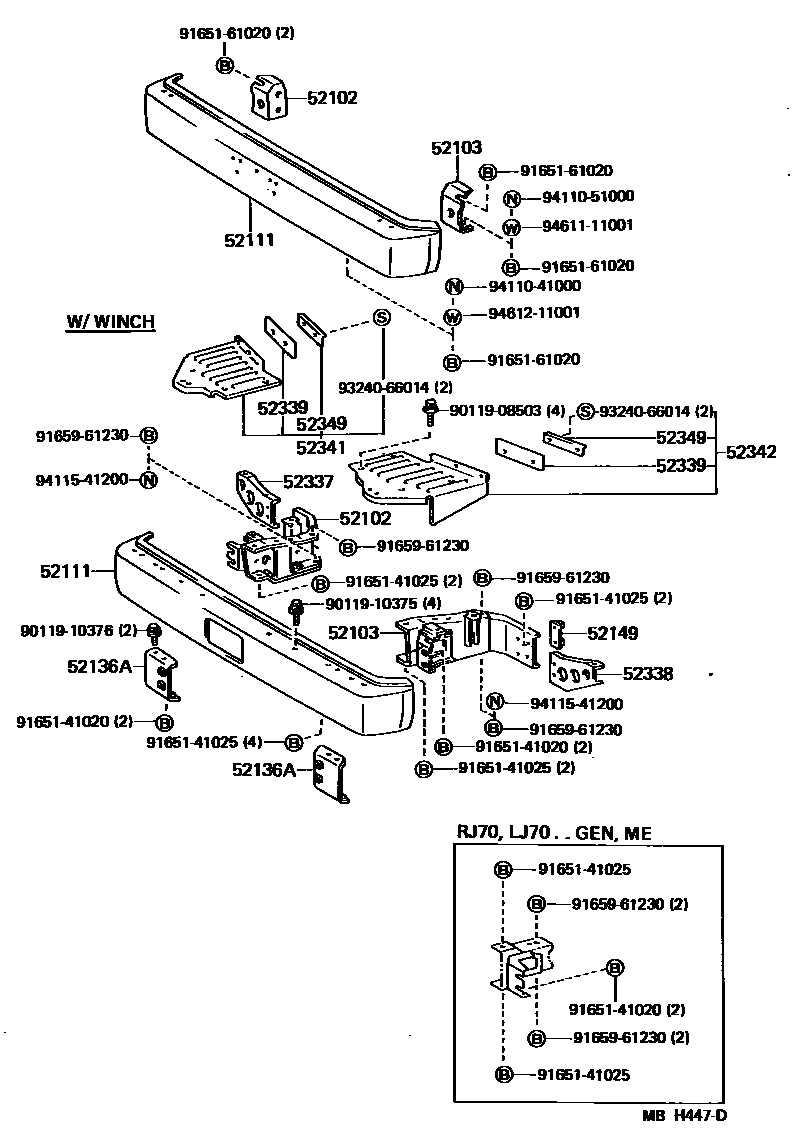

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52116-60020iFJ70,73,RJ70;FJ75..HT..ME;BJ7#,FJ75,HJ75,LJ70..ARL,GEN,SA198411-199001

main52130-60020iFJ75..PIC..ME198411-198506

W/WINCH

main52130-60030iLJ70,RJ70..GEN,ME198411-199001

W/WINCH

main52130-90K00iBJ70,73,75,FJ7#,HJ75..GEN,ME198506-199001

W/WINCH

main52130-90K01iBJ75,FJ75..PIC..ME198608-199001

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52117-60010iFJ75..HT..ME;FJ75..ARL,GEN,SA;BJ7#,FJ70,73,HJ75,LJ70,RJ70198411-199001

main52140-60020iBJ70,73,75,FJ7#,HJ75..GEN,ME198411-199001

W/WINCH

main52140-60030iLJ70,RJ70..GEN,ME198411-199001

W/WINCH

main52140-90K00iBJ75,FJ75..PIC..ME198608-199001

52111BUMPER ASSY, FRONT

main52101-60010iFJ7#,RJ70..(HT,SOT)..STD..ME198608-199001

sub52101-60090

main52101-60020iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN198608-199001

CHROME PLATING

sub52101-60100

main52101-60030iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN198608-199001

W/WINCH

sub52101-60923

main52101-60040iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198411-199001

CHROME PLATING,W/WINCH

main52101-60070iBJ75,FJ75..PIC..STD..ME198411-199001

sub52101-60130

main52101-60080iBJ75,FJ75..PIC..ME198411-199001

CHROME PLATING

sub52101-60140

52136AREINFORCEMENT, FRONT BUMPER

main52131-60050iBJ70,73,FJ7#,HJ75,LJ70,RJ70..GEN,ME198411-199001

RH

main52132-60030iBJ70,73,FJ7#,HJ75,LJ70,RJ70..GEN,ME198411-199001

LH

52149BRACKET, FRONT BUMPER, INNER

main52149-60010×2iBJ70,73,75,FJ7#,HJ75..GEN,ME198411-199001

52337STAY, FRONT BUMPER STEP, RH

main52333-90K00iBJ70,73,75,FJ7#,HJ75..GEN198608-199001

W/WINCH

main52333-90K02iBJ75,FJ75..PIC..ME198608-199001

52338STAY, FRONT BUMPER STEP, LH

main52334-90K00iBJ70,75,FJ7#,HJ75..GEN,ME198411-198608

main52334-90K02iBJ75,FJ75..PIC..ME198608-199001

52339SEAL, FRONT BUMPER STEP

main52339-90K00×2iBJ70,73,75,FJ7#,HJ75..GEN,ME198411-199001

52341STEP, FRONT BUMPER, RH

main52330-90K00iBJ70,73,75,FJ7#,HJ75..GEN198608-199001

W/WINCH

main52330-90K01iBJ70,75,FJ7#,HJ75..GEN,ME198411-198608

W/FOG LAMP

main52330-90K02iBJ75,FJ75..PIC..ME198608-199001

main52330-90K03iBJ75,FJ75..PIC..ME198608-199001

W/FOG LAMP

52342STEP, FRONT BUMPER, LH

main52340-90K00iBJ70,73,75,FJ7#,HJ75..GEN198608-199001

W/WINCH

main52340-90K01iBJ70,73,75,FJ7#,HJ75..GEN198608-199001

W/FOG LAMP

main52340-90K02iBJ75,FJ75..PIC..ME198608-199001

main52340-90K03iBJ75,FJ75..PIC..ME198608-199001

W/FOG LAMP

52349RETAINER, FRONT BUMPER STEP SEAL

main52349-90K00×2iBJ70,73,75,FJ7#,HJ75..GEN,ME198411-199001

9011908503

main90119-08503

9011910375

main90119-10375

9011910376

main90119-10376

9165141020

main91651-41020

9165141025

main91651-41025

9165161020

main91651-61020

9165961230

main91659-61230

9324066014

main93240-66014

9411041000

main94110-41000

9411051000

main94110-51000

9411541200

main94115-41200

9461111001

main94611-11001

9461211001

main94612-11001

24 parts on this diagram · 4 diagrams in section
