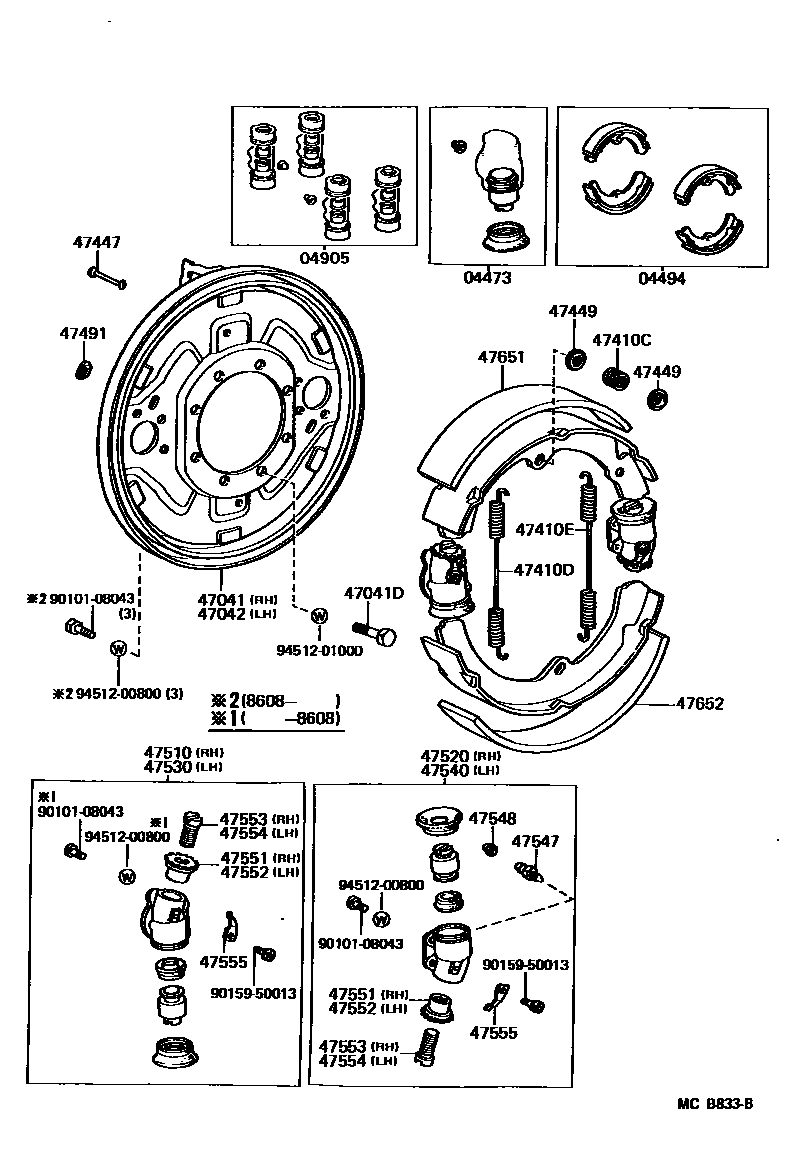

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04473CYLINDER KIT, FRONT WHEEL

main04473-26010×4iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

04494SHOE KIT, FRONT BRAKE

main04494-35060iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

sub04494-35061

main04494-60030iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

sub04494-60031

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-35050iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main04905-36070iHJ75..4F;BJ75..GEN;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU198411-199001

main04905-60030iBJ70,73,FJ70,73..STD..GEN198411-199001

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-60050iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

main47041-60060iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-10439×16iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73,LJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-60010iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

main47042-60020iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20756×4iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main90501-23002×4iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23011×2iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main90506-29006×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23011×2iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main90506-29006×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20030×4iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47447-60010×4iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73,LJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×4iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73,LJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47520-35030iLJ70,RJ70..STD..GEN198608-199001

main47520-36090iHJ75..4F;BJ75..GEN;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU198411-199001

main47520-39195iLJ70,RJ70..(CBR,DSL)..GEN198411-198608

main47520-60030iBJ70,73,FJ70,73..STD..GEN198411-199001

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-35060iLJ70,RJ70..STD..GEN198608-199001

main47510-36090iHJ75..4F;BJ75..GEN;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU198411-199001

main47510-39235iLJ70,RJ70..(CBR,DSL)..GEN198411-198608

main47510-60100iBJ70,73,FJ70,73..STD..GEN198411-199001

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47540-35030iLJ70,RJ70..STD..GEN198608-199001

main47540-36090iHJ75..4F;BJ75..GEN;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU198411-199001

main47540-39195iLJ70,RJ70..(CBR,DSL)..GEN198411-198608

main47540-60030iBJ70,73,FJ70,73..STD..GEN198411-199001

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-35060iLJ70,RJ70..STD..GEN198608-199001

main47530-36090iHJ75..4F;BJ75..GEN;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU198411-199001

main47530-39235iLJ70,RJ70..(CBR,DSL)..GEN198411-198608

main47530-60090iBJ70,73,FJ70,73..STD..GEN198411-199001

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73,LJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73,LJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-26020×2iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47551-36120×2iHJ75..4F;BJ75..GEN;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU198411-199001

main47551-60040×2iBJ70,73,FJ70,73..STD..GEN198411-199001

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-26020×2iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47552-36120×2iHJ75..4F;BJ75..GEN;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU198411-199001

main47552-60040×2iBJ70,73,FJ70,73..STD..GEN198411-199001

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-30051×2iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47553-36050×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-30051×2iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47554-36050×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-26030×4iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47555-36040×4iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-35060iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47651-60020×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-35060iLJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

main47651-60020×2iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

9010108043

main90101-08043

9015950013

main90159-50013

9451200800

main94512-00800

9451201000

main94512-01000

29 parts on this diagram · 2 diagrams in section
