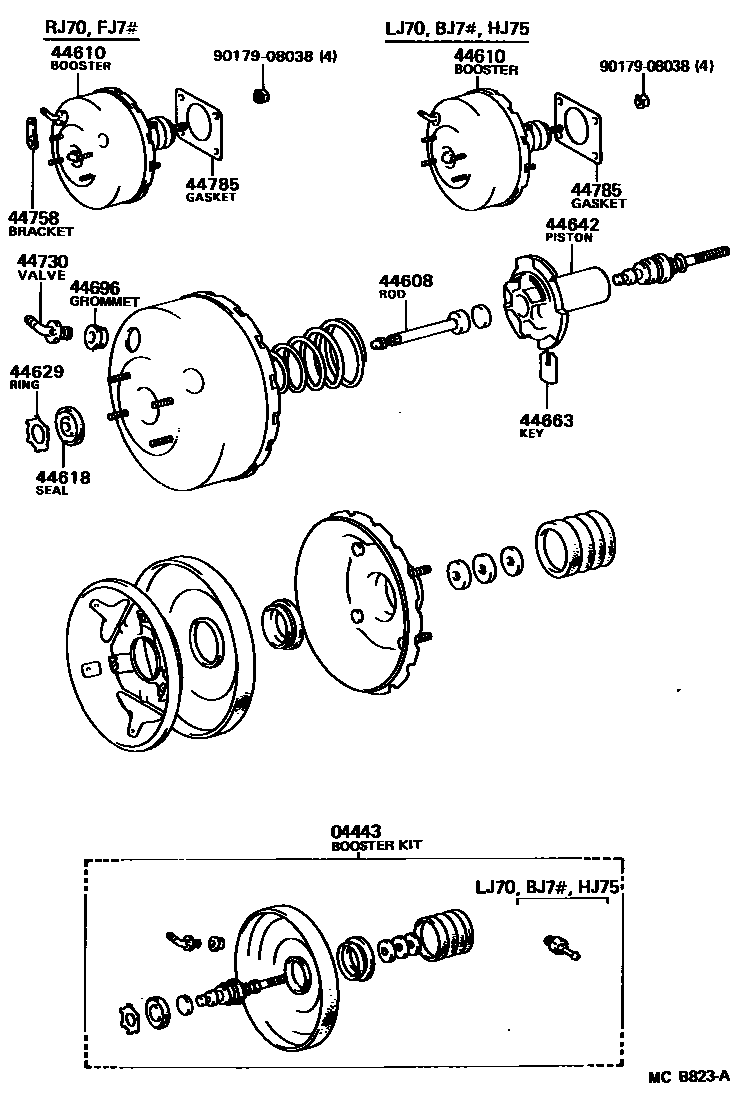

BRAKE BOOSTER & VACUUM TUBE

0001 1 0004 1 0005 1 0006 1 0007 1 0008 1 0012 1 0013 1 0014 1

04443BOOSTER KIT, BRAKE

main04443-60160iRJ70..LHD..GEN198411-199001

FR DRUM BRAKE

main04443-60170iBJ70,73,LJ70..STD..DSL..GEN198411-199001

FR DRUM BRAKE

main04443-60190iFJ70,73..LHD198411-198708

FR DISC BRAKE

main04443-60190iFJ75..LHD198411-199001

FR DRUM BRAKE

main04443-60200iBJ75,HJ75..GEN198510-199001

FR DRUM BRAKE

main04443-60200iBJ70,LJ70198411-198510

FR DISC BRAKE

main04443-60250iRJ70..RHD..STD..GEN198411-199001

FR DRUM BRAKE

main04443-60260iRJ70..RHD198411-198510

FR DISC BRAKE

main04443-60261iRJ70..RHD198510-199001

FR DISC BRAKE

main04443-60290iRJ70..LHD198510-199001

FR DISC BRAKE

main04443-60300iBJ7#,HJ75,LJ70198510-199001

FR DISC BRAKE

main04443-60340iFJ70,73..LHD198708-199001

FR DISC BRAKE

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iRJ70..LHD198411-199001

main44606-12520iBJ7#,FJ70,73,HJ75,LJ70198708-199001

FR DISC BRAKE

main44608-32020iRJ70..RHD198411-199001

44610BOOSTER ASSY, BRAKE

main44610-60250iFJ70..RHD..GEN198411-199001

FR DRUM BRAKE

main44610-60260iFJ70,73..LHD..STD..GEN198411-199001

FR DRUM BRAKE

main44610-60270iBJ70,73..RHD..GEN198411-199001

FR DRUM BRAKE

main44610-60290iRJ70..RHD..STD..GEN198411-199001

FR DRUM BRAKE

main44610-60300iFJ7#..RHD198411-198510

FR DISC BRAKE

main44610-60300iFJ75..RHD..GEN..IV;FJ75..RHD..4F..CBU198411-199001

FR DRUM BRAKE

main44610-60310iFJ75..LHD198411-199001

main44610-60320iHJ75..RHD..4F198411-199001

FR DRUM BRAKE

main44610-60320iBJ7#,LJ70;HJ75..RHD198411-198510

FR DISC BRAKE

main44610-60330iRJ70..RHD198411-198510

FR DISC BRAKE

sub44610-60331

main44610-60331iRJ70..RHD198510-199001

FR DISC BRAKE

main44610-60340iHJ75..LHD198510-199001

FR DRUM BRAKE

main44610-60340iHJ75..LHD198411-198510

main44610-60430iBJ70..LHD..STD198808-199001

FR DRUM BRAKE

main44610-60450iRJ70..LHD198510-199001

FR DISC BRAKE

main44610-60460iLJ70198510-199001

FR DISC BRAKE

main44610-60470iHJ75..LHD198510-199001

FR DISC BRAKE

main44610-60490iBJ75..LHD..GEN198808-199001

FR DRUM BRAKE

main44610-60500iFJ75..LX198708-199001

main44610-60540iBJ70,73,75..LHD198808-199001

FR DISC BRAKE

44618SEAL, BOOSTER BODY

main44621-28120iBJ7#,FJ7#,HJ75,LJ70198411-199001

44629RING, CIRCULAR INTERNAL

main44628-28120iBJ7#,FJ70,73,HJ75,LJ70198708-199001

FR DISC BRAKE

main44628-28120iBJ7#,FJ7#,HJ75,LJ70198411-199001

main44628-60010iFJ75..LX198708-199001

44642PISTON, BRAKE BOOSTER

main44642-20800iFJ75..LX198708-199001

FR DISC BRAKE

main44642-60250iBJ70,73,FJ70,73,LJ70..STD..(CBR,DSL)..GEN198411-199001

FR DRUM BRAKE

main44642-60280iFJ75..LHD..STD198411-199001

FR DISC BRAKE

main44642-60280iBJ75,FJ75,HJ75..GEN198510-199001

FR DRUM BRAKE

main44642-60450iFJ7#..RHD198510-199001

FR DISK BRAKE

44663KEY, VALVE STOPPER

main44635-28120iBJ7#,FJ7#,HJ75,LJ70198411-199001

44696GROMMET, CHECK VALVE

main90480-24439iFJ7#198411-199001

main90480-24517iRJ70..RHD198411-199001

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iFJ75..LX198708-199001

main44730-20060iFJ7#198411-199001

main44730-30010iRJ70..RHD198411-199001

main44730-60040iBJ7#,HJ75,LJ70198411-199001

44758BRACKET, VACUUM CHECK VALVE

main44758-28020iFJ7#..RHD198411-199001

44785GASKET, BRAKE BOOSTER

main44785-35020iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

9017908038

main90179-08038

12 parts on this diagram · 9 diagrams in section
