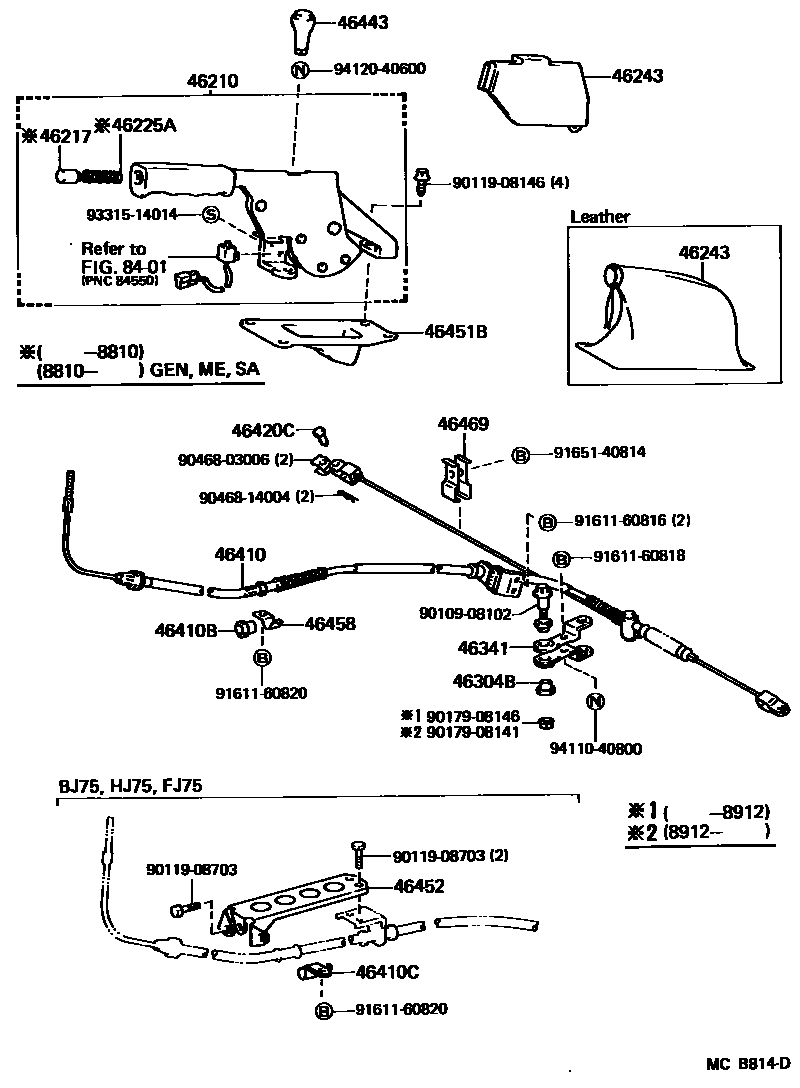

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-60060-03iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198810

GRAY,SHADOW GRAY

sub46210-60061

main46210-60060-06iFJ70,73,RJ70..HT..ME198411-198810

BROWN,SEPIA BROWN

sub46210-60061

main46210-60061-03iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME,SA198810-199001

GRAY,SHADOW GRAY

sub46210-60061

main46210-60061-06iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME,SA198810-199001

BROWN,SEPIA BROWN

sub46210-60061

main46210-60080-03iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL198810-199001

GRAY,SHADOW GRAY

sub46210-60080

main46210-60080-06iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL198810-199001

BROWN,SEPIA BROWN

sub46210-60080

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-33iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

GRAY,GRAY

sub46217-10020

sub46217-20020

main46217-10020-56iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,SA198411-199001

BROWN,BROWN

sub46217-10020

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10138iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME,SA198810-199001

main90501-10745iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198810

46243COVER, PARKING BRAKE LEVER

main46243-60050-01iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..MTM..(GEN,ME)198411-198608

BLACK,BLACK

main46243-60060-01iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

BLACK,LEATHER,BLACK

sub46243-60060

main46243-60060-06iFJ70,73,RJ70..HT..ME198411-198608

BROWN,SEPIA BROWN

sub46243-60060

main46243-60060-06iFJ70,73,RJ70..HT..ME198411-199001

BROWN,LEATHER,SEPIA BROWN

sub46243-60060

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

46341EQUALIZER, PARKING BRAKE

main46341-35030iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60210iBJ70,FJ70..RHD..GEN198411-198708

sub46410-60220

main46410-60220iBJ70,FJ70..RHD198708-199001

main46410-60220iBJ70,FJ70..RHD198411-198708

FULL FLOATING AXLE

main46410-60230iBJ70,FJ70..LHD198411-198708

sub46410-60240

main46410-60240iBJ70,FJ70..LHD198411-198708

FULL FLOATING AXLE

main46410-60240iBJ70,FJ70..LHD198708-199001

main46410-60250iBJ73..STD198608-198708

sub46410-60260

main46410-60260iBJ73,74,FJ73..RHD198411-198708

FULL FLOATING AXLE

main46410-60260iBJ73,74,FJ73..RHD198708-199001

main46410-60270iBJ73,FJ73..LHD198411-198708

sub46410-60280

main46410-60280iBJ73,FJ73..LHD198708-199001

main46410-60280iBJ73,FJ73..LHD198411-198708

FULL FLOATING AXLE

main46410-60290iBJ75,FJ75,HJ75..RHD..(GEN,SA)198411-198708

sub46410-60300

main46410-60300iBJ75,FJ75,HJ75..RHD198411-198708

FULL FLOATING AXLE

main46410-60300iBJ75,FJ75,HJ75..RHD198708-199001

main46410-60310iBJ75,FJ75,HJ75..LHD198411-198708

sub46410-60320

main46410-60320iBJ75,FJ75,HJ75..LHD198708-199001

main46410-60320iBJ75,FJ75,HJ75..LHD198411-198708

FULL FLOATING AXLE

main46410-60350iLJ70,RJ70..RHD198411-199001

main46410-60360iLJ70,RJ70..LHD198411-199001

main46410-60380iFJ70..SOT..5F..GEN198604-199001

VENEZUELA SPEC

main46410-60390iFJ75..HT..5F..GEN198604-199001

VENEZUELA SPEC

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-17158iBJ70,73,74,FJ70,73,LJ70,RJ70198411-199001

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main90949-01177iBJ75,FJ75,HJ75198411-199001

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08042iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

46443CAP, CABLE ADJUSTING

main46443-12020iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-60060iBJ70,73,FJ70,73,LJ70,RJ70..SOT198411-199001

main46451-60070iBJ70,73,74,FJ70,73,LJ70,RJ70..HT198411-199001

main46451-60080iBJ75,FJ75,HJ75..HT198411-199001

main46451-60090iBJ75,FJ75,HJ75..PIC198411-199001

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-60040iBJ75,FJ75,HJ75198411-198807

sub46452-60041

main46452-60041iBJ75,FJ75,HJ75198807-199001

46458RETAINER, CABLE

main46458-30020iBJ70,73,74,FJ70,73,LJ70,RJ70198411-199001

46469LEVER, CABLE GUIDE SUPPORT

main46469-60020iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

8401

9010908102

main90109-08102

9011908146

main90119-08146

9011908703

main90119-08703

9017908141

main90179-08141

9017908146

main90179-08146

9046803006

main90468-03006

9046814004

main90468-14004

9161160816

main91611-60816

9161160818

main91611-60818

9161160820

main91611-60820

9165140814

main91651-40814

9331514014

main93315-14014

9411040800

main94110-40800

9412040600

main94120-40600

30 parts on this diagram · 1 diagram in section
