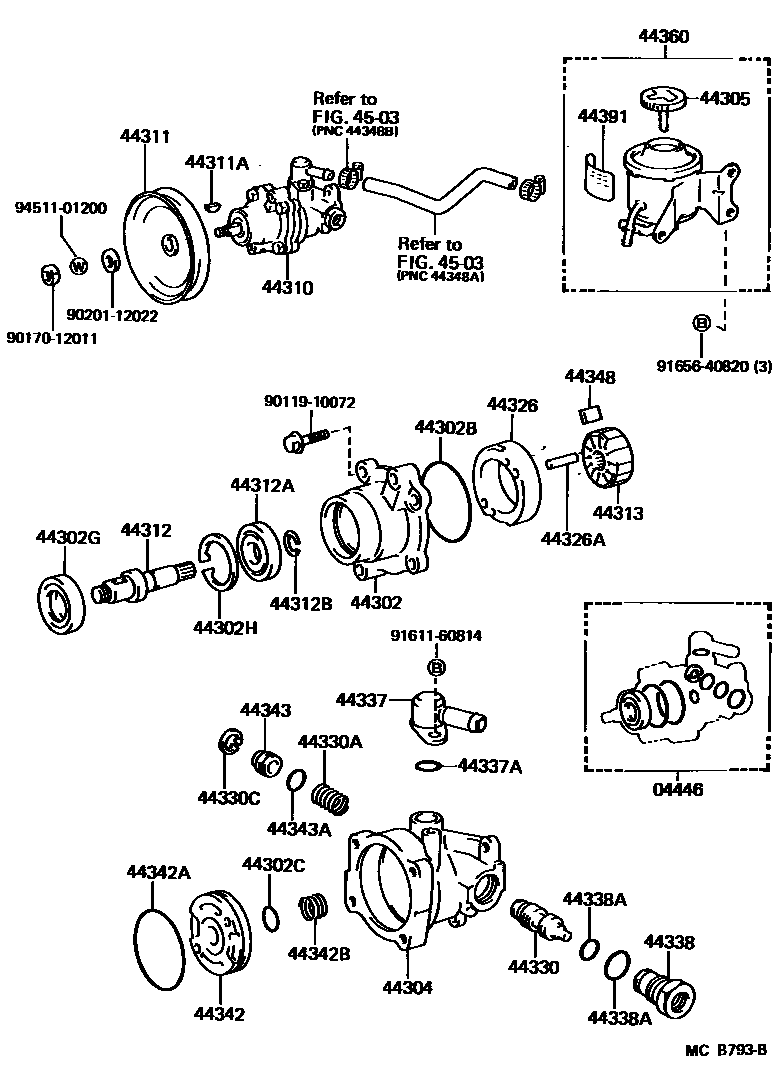

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04446GASKET KIT, POWER STEERING PUMP

main04446-35010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

sub04446-30030

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iHJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

main44302-14010iBJ7#,FJ7#..ARL,GEN,ME198411-199001

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-35020iRJ70198411-198610

sub44304-35021

sub44343-12040

sub90501-12103

main44304-35021iRJ70198610-199001

main44304-35040iHJ75,LJ70..ARL,GEN198411-198610

sub44304-35041

sub44343-12040

sub90501-12103

main44304-35041iHJ75,LJ70..ARL,GEN198610-199001

main44304-60020iBJ7#,FJ7#..ARL,GEN,ME198411-198610

sub44304-60021

sub44343-12040

sub90501-12103

main44304-60021iBJ7#,FJ7#..ARL,GEN,ME198610-199001

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

sub44305-22040

44310PUMP ASSY, VANE

main44320-60090iFJ7#..ARL,GEN,ME198411-199001

main44320-60100iBJ7#198411-199001

main44320-60110iHJ75..ARL,GEN198411-199001

main44320-60120iRJ70198411-199001

sub44320-60121

main44320-60130iLJ70198411-199001

44311PULLEY, VANE PUMP

main44311-20010iRJ70198411-199001

main44311-35010iLJ70198411-199001

main44311-60010iFJ7#..ARL,GEN,ME198411-199001

main44311-60030iHJ75..ARL,GEN198411-199001

main44311-60050iBJ7#198411-199001

44311AKEY, VANE PUMP PULLEY

main90280-05008iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44312SHAFT, VANE PUMP

main44312-12010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

sub90520-15005

44313ROTOR, VANE PUMP

main44313-12010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198810

NO MARK,NO MARK

sub44313-22040

main44313-12020iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198810

MARK 1,MARK 1

sub44313-22050

main44313-12030iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198810

MARK 2,MARK 2

sub44313-22060

main44313-12040iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198810

MARK 3,MARK 3

sub44313-22070

main44313-12050iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198810

MARK 4,MARK 4

sub44313-22080

main44313-22040iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198810-199001

NO MARK,NO MARK

main44313-22050iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198810-199001

MARK 1,MARK 1

main44313-22060iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198810-199001

MARK 2,MARK 2

main44313-22070iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198810-199001

MARK 3,MARK 3

main44313-22080iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198810-199001

MARK 4,MARK 4

44326RING, CAM(FOR VANE PUMP)

main44325-12010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

NO MARK,NO MARK

main44325-12020iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK 1,MARK 1

main44325-12030iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK 2,MARK 2

main44325-12040iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK 3,MARK 3

main44325-12050iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK 4,MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-30100iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK A,MARK A

sub44330-32130

main44330-30110iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK B,MARK B

sub44330-32140

main44330-30120iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK C,MARK C

sub44330-32150

main44330-30130iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK D,MARK D

sub44330-32160

main44330-30140iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK E,MARK E

sub44330-32170

main44330-30150iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

MARK F,MARK F

sub44330-32180

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198610-199001

main90501-12447iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198610

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44337UNION, POWER STEERING SUCTION PORT

main44337-60010iBJ7#198411-199001

main44337-60020iHJ75..ARL,GEN198411-199001

main44337-60030iLJ70198411-199001

main90404-16016iRJ70198411-199001

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19013iBJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44338UNION, PRESSURE PORT

main44308-35030iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

OD=25.5,ID=22.5,OD=25.5

main96711-19014iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

OD=17.0,ID=13.0,OD=17.6

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44343SEAT, FLOW CONTROL SPRING

main44343-12010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198610

main44343-12040iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198610-199001

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44348PLATE, VANE PUMP

main44345-12010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

L=14.997,ROTOR NO MARK

main44345-12020iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

L=14.995,ROTOR MARK 1

main44345-12030iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

L=14.993,ROTOR MARK 2

main44345-12040iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

L=14.991,ROTOR MARK 3

main44345-12050iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

L=14.989,ROTOR MARK 4

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60020iBJ70,73,75198411-199001

main44360-60030iHJ75..ARL,GEN198411-199001

main44360-60040iRJ70198411-199001

main44360-60050iLJ70198411-199001

main44360-60060iBJ74198510-199001

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-14010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198610-199001

main44391-30020iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-198610

4503

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161160814

main91611-60814

9165640820

main91656-40820

9451101200

main94511-01200

39 parts on this diagram · 6 diagrams in section
