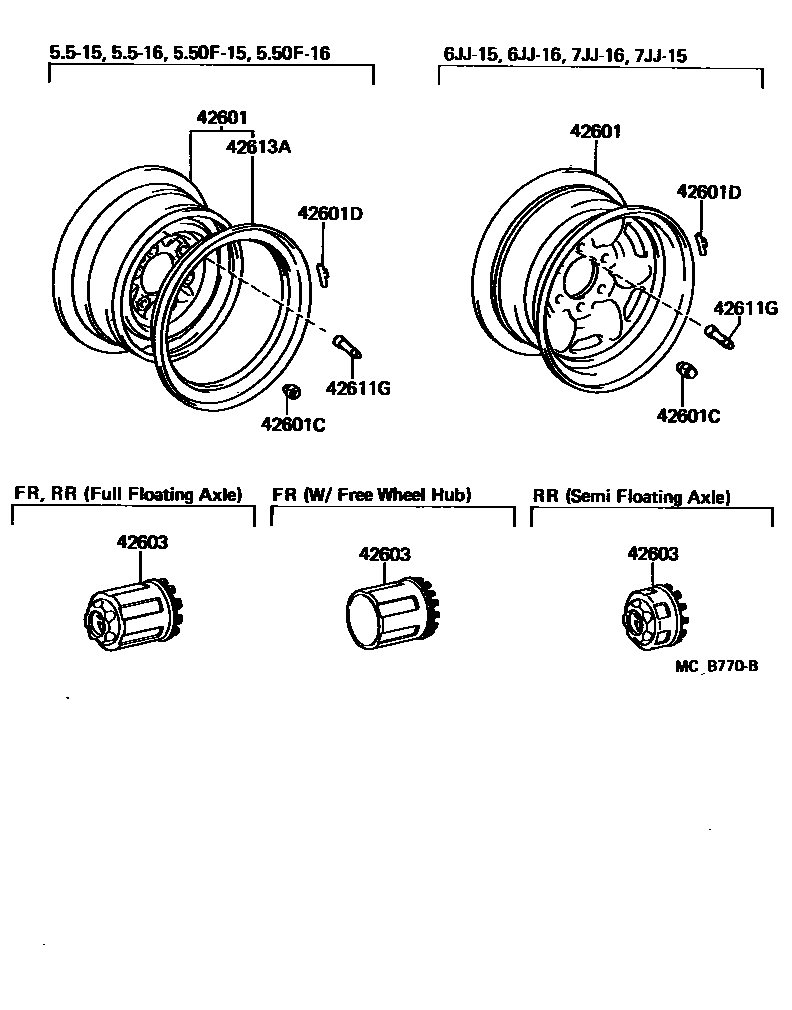

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42601-35260iLJ70,RJ70..RHD..HT..GEN¥13,800198608-199001

6JJ-15,WHITE,6JJX15,WHITE

main42601-60130iFJ70..LHD..HT..5F..GEN¥13,000198608-199001

15X6JJ,6JJX15,WHITE,VENEZUELA SPEC

sub42601-35260¥13,800

main42601-60130-05iFJ70..SOT..5F..GEN198608-199001

15X6JJ,6JJX15,WHITE,VENEZUELA SPEC,WHITE

sub42601-60130¥13,000

sub42601-35260¥13,800

main42601-60170iBJ70,LJ70..RHD..5F..GEN¥26,200198411-199001

16X6J,6JJX16,CHROME PLATED

sub42601-60171¥26,700

main42601-60180-05iBJ70,LJ70..RHD..5F..GEN198411-199001

6J-16,WHITE,6JJX16,WHITE,WHITE

sub42601-60180¥14,300

main42601-60200-05iBJ70,73,74,FJ70,73,LJ70,RJ70..ARL,GEN198411-199001

7JJ-15,WHITE,7JJX15,WHITE,WHITE

sub42601-60200¥15,500

main42601-60210iBJ70,73,74,FJ70,73,LJ70,RJ70..ARL,GEN¥27,900198411-199001

15X7JJ,#,7JJX15,CHROME PLATED

main42601-60260-05iRJ70..ME198411-199001

6JJX16,WHITE,WHITE

sub42601-60180¥14,300

main42601-60270-05iFJ70,73,RJ70..ME198411-198708

7JJ-15,WHITE,7JJX15,WHITE,WHITE

sub42601-60200¥15,500

main42601-60280iFJ70,73,RJ70..ME¥27,900198411-198603

15X7JJ,7JJX15,CHROME PLATED

sub42601-60210¥27,900

main42601-60310iRJ70..ME¥26,200198411-198603

16X6J,6JJX16,CHROME PLATED

sub42601-60170¥26,200

main42610-60012iBJ75,FJ75,HJ75..PIC..GEN¥12,200198411-199001

5.50F-15,#,5.50FX15

sub42610-60151¥14,100

main42610-60022-03iLJ70,RJ70..GEN,ME198411-199001

5.50F-16,#,5.50FX16,GRAY

sub42610-60022¥14,500

sub42610-60111¥15,100

main42610-60051-05iBJ70,73,75,FJ7#,HJ75..GEN198411-199001

5.50F-16,WHITE,5.50FX16,WHITE,WHITE

sub42610-60051¥15,300

main42610-60070iRJ70..GEN¥15,100198510-199001

5.50F-16,STYLEDWHITE,5.50FX16,STYLE STEEL WHITE

sub42610-60072¥15,100

main42610-60070-05iBJ70,73,74,FJ70,73..ARL,GEN198411-199001

5.50F-16,STYLEDWHITE,5.50FX16,STYLE STEEL WHITE,WHITE

sub42610-60070¥15,100

sub42610-60072¥15,100

main42610-60080iRJ70..GEN¥28,600198411-199001

5.50F-16,#,5.50FX16,STYLE STEEL PLATED

sub42610-60081¥28,600

main42610-60090iLJ70,RJ70..RHD..HT..4F¥13,800198411-199001

5.50F-15,WHITE,5.50FX16,WHITE

main42610-60090-05iBJ75,FJ75,HJ75..PIC..GEN198411-199001

5.50F-15,WHITE,5.50FX16,WHITE,WHITE

sub42610-60090¥13,800

main42610-60110-03iFJ7#,RJ70..ME198411-198603

5.50F-16,5.50FX16,GRAY

sub42610-60022¥14,500

main42610-60120-05iFJ70,73..ME198411-199001

5.50FX16,STYLE STEEL WHITE,WHITE

sub42610-60070¥15,100

main42610-60130iFJ70,73..ME¥29,500198411-198608

6JJ-15,#,5.50FX16,STYLE STEEL PLATED

sub42610-60080¥28,600

main42610-60140-05iFJ7#..ME198411-198708

5.50F-16,5.50FX16,WHITE,WHITE

sub42610-60051¥15,300

main42610-60150iBJ75,FJ75..PIC..ME¥13,200198411-199001

5.50F-15,#,5.50FX15

sub42610-60151¥14,100

main42610-60160-05iBJ75,FJ75..PIC..ME198411-199001

5.50F-15,WHITE,5.50FX16,WHITE,WHITE

42601CNUT, HUB (FOR AXLE)

main90942-01047iBJ7#,FJ7#,HJ75,LJ70,RJ70¥230198411-199001

CAP NUT

main90942-01051iBJ70,73,74;FJ70,73..LX,STD¥170198411-199001

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045iBJ7#,FJ7#,HJ75¥230198411-199001

20G,20G,5.50FX15,16 WHEEL

sub90942-03079¥370

main90942-03047iBJ7#,FJ7#,HJ75¥250198411-199001

40G,40G,5.50FX15,16 WHEEL

sub90942-03081¥430

main90942-03049iBJ7#,FJ7#,HJ75¥300198411-199001

60G,60G,5.50FX15,16 WHEEL

sub90942-03083¥480

main90942-03050iBJ7#,FJ7#,HJ75¥240198411-199001

30G,30G,5.50FX15,16 WHEEL

sub90942-03080¥380

main90942-03051iBJ7#,FJ7#,HJ75¥320198411-199001

80G,80G,5.50FX15,16 WHEEL

sub90942-03085¥540

main90942-03052iBJ7#,FJ7#,HJ75¥270198411-199001

50G,50G,5.50FX15,16 WHEEL

sub90942-03082¥450

main90942-03053iLJ70,RJ70..GEN,ME¥350198411-199001

100G,100G,5.50FX15,16 WHEEL

sub90942-03086

main90942-03064iBJ7#,FJ7#,HJ75¥310198411-199001

70G,70G,5.50FX15,16 WHEEL

sub90942-03084¥520

main90942-03079iBJ70,73,74,FJ70,73,LJ70,RJ70¥370198411-199001

20G,T=10,20G,6X16,6JJX15,7JJX15 WHEEL

sub90942-03362¥110

main90942-03080iBJ70,73,74,FJ70,73,LJ70,RJ70¥380198411-199001

30G,T=9.3,30G,6X16,6JJX15,7JJX15 WHEEL

sub90942-03364¥120

main90942-03081iBJ70,73,74,FJ70,73,LJ70,RJ70¥430198411-199001

40G,T=9.3,40G,6X16,6JJX15,7JJX15 WHEEL

sub90942-03366¥130

main90942-03082iBJ70,73,74,FJ70,73,LJ70,RJ70¥450198411-199001

50G,T=9.3,50G,6X16,6JJX15,7JJX15 WHEEL

sub90942-03368¥160

main90942-03083iBJ70,73,74,FJ70,73,LJ70,RJ70¥480198411-199001

60G,T=9.3,60G,6X16,6JJX15,7JJX15 WHEEL

main90942-03084iBJ70,73,74,FJ70,73,LJ70,RJ70¥520198411-199001

70G,T=9.3,70G,6X16,6JJX15,7JJX15 WHEEL

main90942-03085iBJ70,73,74,FJ70,73,LJ70,RJ70¥540198411-199001

80G,T=9.3,80G,6X16,6JJX15,7JJX15 WHEEL

main90942-03086iBJ70,73,74,FJ70,73,LJ70,RJ70198411-199001

100G,100G,6X16,6JJX15,7JJX15 WHEEL

sub90942-03081¥430

sub90942-03083¥480

main90942-03106iBJ7#,FJ7#,HJ75¥210198411-199001

10G,10G,5.50FX15,16 WHEEL

sub90942-03107¥360

main90942-03107iBJ70,73,74,FJ70,73,LJ70,RJ70¥360198411-199001

10G,T=8,10G,6X16,6JJX15,7JJX15 WHEEL

sub90942-03360¥100

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35080iBJ70,73,74,FJ70,73,LJ70,RJ70..ARL,GEN¥3,850198411-199001

*STE,FR,W/FREE WHEEL HUB

main42603-60012iBJ70,FJ70,RJ70..STD..ARL¥4,440198411-199001

FR

sub42603-60013¥4,410

main42603-60012iBJ70,73,FJ70,73¥4,440198411-199001

RR,FULL FLOATING AXLE

sub42603-60013¥4,410

main42603-60052iLJ70,RJ70¥3,540198411-199001

RR,SEMI FLOATING AXLE

sub42603-60053¥3,470

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iFJ70..LHD..HT..(4FC,5F)..GEN¥390198608-199001

VENEZUELA SPEC

42613ARING, DISC WHEEL SIDE

main42613-35010iBJ75,FJ75,HJ75..PIC..GEN¥2,320198411-199001

5.50FX15

main42613-36020iLJ70,RJ70..GEN¥4,130198411-199001

5.50FX16

sub42613-60080¥2,610

main42613-60020iBJ70,73,75,FJ7#,HJ75..GEN¥3,340198411-199001

5.50FX16,WHITE

sub42613-60021¥4,130

main42613-60040iFJ70,73..ME¥3,730198411-199001

5.50FX16,STYLE STEEL

sub42613-60041¥3,610

main42613-60050iBJ75,FJ7#..ME¥4,130198411-199001

5.50FX16,WHITE

sub42613-60051¥3,460

main42613-60060iBJ75,FJ75..PIC..ME198411-199001

5.50FX15,WHITE

sub42613-60100¥4,240

main42613-60070iBJ75,FJ75..PIC..ME198411-199001

5.50FX15

main42613-60080iFJ7#,RJ70..ME¥2,610198411-199001

5.50FX16

6 parts on this diagram · 1 diagram in section
