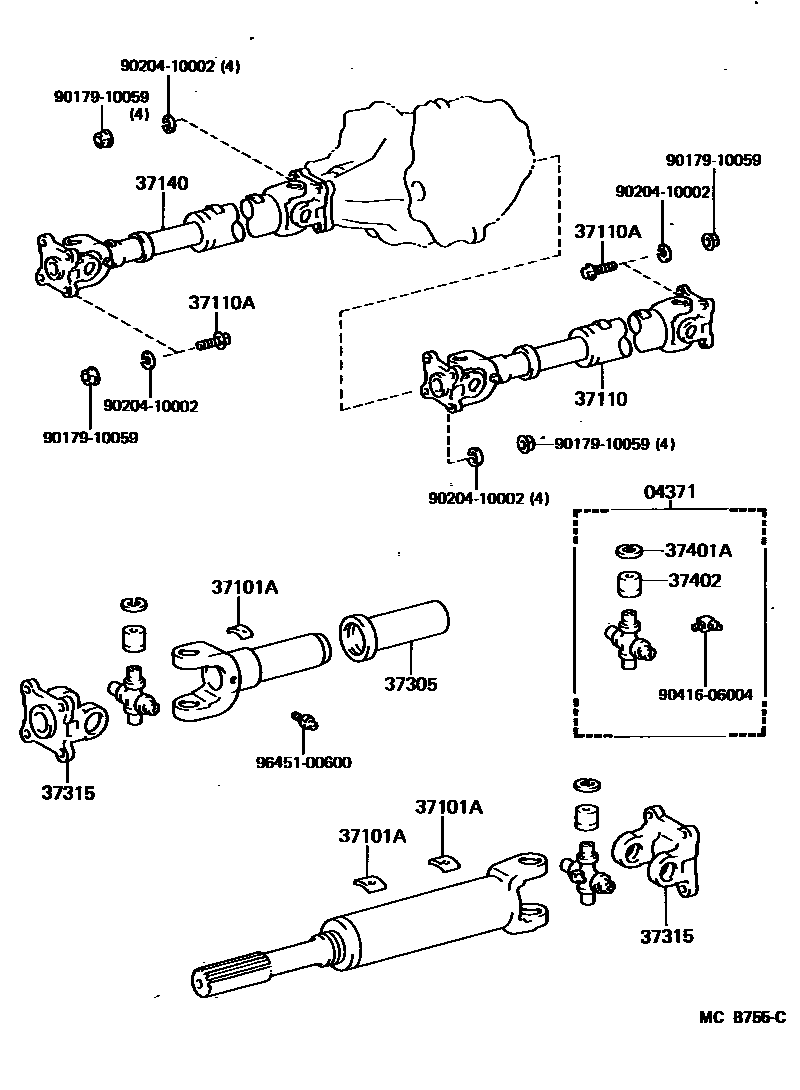

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,10G
20G,L=41.4,20G
30G,L=62.2,30G
2G,T=2.0,2G
4G,T=2.0,4G
6G,L=12.4,6G
8G,L=16.6,8G
12G,L=24.9,12G
14G,L=29.0,14G
16G,L=33.2,18G
18G,L=37.3,18G
22G,L=45.6,22G
24G,L=49.7,24G
26G,L=53.9,26G
28G,L=58.1,28G
4G,T=1.6,4G,FR SLEEVE YOKE
8G,T=1.6,8G,FR SLEEVE YOKE
12G,T=4.5,12G,FR SLEEVE YOKE
16G,T=4.5,16G,FR SLEEVE YOKE
20G,T=4.5,20G,FR SLEEVE YOKE
24G,T=4.5,L=25.1,24G,FR SLEEVE YOKE
28G,T=6,L=22.7,28G,FR SLEEVE YOKE
32G,T=6,L=24.3,32G,FR SLEEVE YOKE
36G,L=23.1,T=8.0,36G,FR SLEEVE YOKE
40G,L=25.6,40G,FR SLEEVE YOKE
37110ABOLT (FOR PROPELLER SHAFT)
*10-1.00PX27-13
*11-1.00PX28-16
37140SHAFT ASSY, PROPELLER, FRONT
37305COVER SUB-ASSY, SLIDING SHAFT DUST
RR
RR
FR
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.125,MARK 1,T=1.50
T=2.175,MARK 2,T=1.55
T=2.225,MARK 3,T=2.225
T=2.275,MARK 4,T=2.275
T=2.325,MARK 5,T=2.325
T=2.375,MARK 6,T=2.375
T=2.425,MARK 7,T=2.425
T=2.475,MARK 8,T=2.475
T=1.50,OD=32.4,T=1.50
T=1.55,T=1.55
T=1.60,T=1.60
T=2.00,NO MARK,T=2.00
T=2.03,BROWN,T=2.03
T=2.06,BLUE,T=2.06
T=2.09,NO MARK,T=2.09
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017910059
main90179-10059
9020410002
main90204-10002
9041606004
main90416-06004
9645100600
main96451-00600
13 parts on this diagram · 2 diagrams in section
