SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33105-35010iLJ70,RJ70..CBR,DSL198411-198705

sub33105-35040

main33105-35020iLJ70..TD198510-198705

main33105-60010iLJ70,RJ70198705-199001

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20062-01iLJ70,RJ70..HT..4F198411-199001

BLACK,URETHANE,BLACK

sub33504-20062

sub33504-14040

main33504-22101-01iLJ70,RJ70..4F..STD198411-199001

BLACK,BLACK

sub33504-14040

sub33504-22101

main33504-22111-01iRJ70..STD..ARL198411-199001

BLACK,BLACK

sub33504-14050

sub33504-22111

main33504-22111-01iFJ75..5F..(GEN,ME);BJ70,75,FJ70,73,HJ75,LJ70,RJ70..5F..STD..(GEN,ME)198608-199001

BLACK

sub33504-14050

sub33504-22111

main33504-60040iBJ70,73,75,FJ7#,HJ75..4F..STD198411-199001

main33504-60050iBJ70,75,FJ70,75,HJ75..HT..4F198411-199001

URETHANE

main33504-60060iBJ70,73,HJ75,LJ70,RJ70..(HT,PIC)..5F..CBU198411-199001

W/URETHANE STEERING WHEEL

sub33504-24010

main33542-12110-03iBJ74,FJ70,73..4FC198411-198603

GRAY,GRAY

sub33542-12110

main33542-12110-06iBJ74,FJ70,73..4FC198411-199001

BROWN,BROWN

sub33542-12110

main33542-12110-33iBJ74,FJ70,73..4FC198603-199001

GRAY,GRAY

sub33542-12110

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-35070iLJ70,RJ70..CBR,DSL198411-198705

main33506-35090iLJ70..TD198510-198705

sub33506-60030

sub33105-60010

sub90930-03075

main33506-60020iLJ70,RJ70..CBR,DSL198705-199001

sub33506-60030

main33506-60030iLJ70..TD198705-199001

33506WPLUG, BREATHER (FOR SHIFT LEVER RETAINER)

main90930-03075iLJ70,RJ70198705-199001

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60070iBJ70,73,75,FJ70,75,HJ75..RHD..4F198411-199001

main33530-60080iBJ70,75,FJ7#,HJ75..LHD..4F198411-199001

main33530-60090iBJ7#,FJ7#,HJ75..RHD..5F198411-199001

main33530-60100iBJ75..ME198411-199001

main33530-60110iLJ70,RJ70..RHD198411-198705

main33530-60111iLJ70,RJ70..RHD198705-199001

main33530-60120iLJ70,RJ70..LHD198411-198705

main33530-60121iLJ70,RJ70..LHD198705-199001

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26005iLJ70,RJ70198411-199001

main90502-29001iBJ7#,FJ7#,HJ75..MTM198411-199001

sub90502-29002

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iLJ70,RJ70198411-199001

main33548-60020iBJ7#,FJ7#,HJ75..5F198411-199001

33554CAP, SHIFT LEVER

main33554-30012iLJ70,RJ70198411-199001

main33554-60021iBJ7#,FJ7#,HJ75..MTM198411-199001

33555BOOT, SHIFT LEVER

main33555-35040iLJ70,RJ70198411-198705

main33555-55011iBJ7#,FJ7#,HJ75..MTM198411-199001

main33555-60020iBJ74,FJ70,73..4FC198411-199001

main33555-60030iLJ70,RJ70198705-199001

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-35050iLJ70,RJ70198510-198705

sub33584-60010

main33584-60010iLJ70,RJ70198705-199001

9161160830

main91611-60830

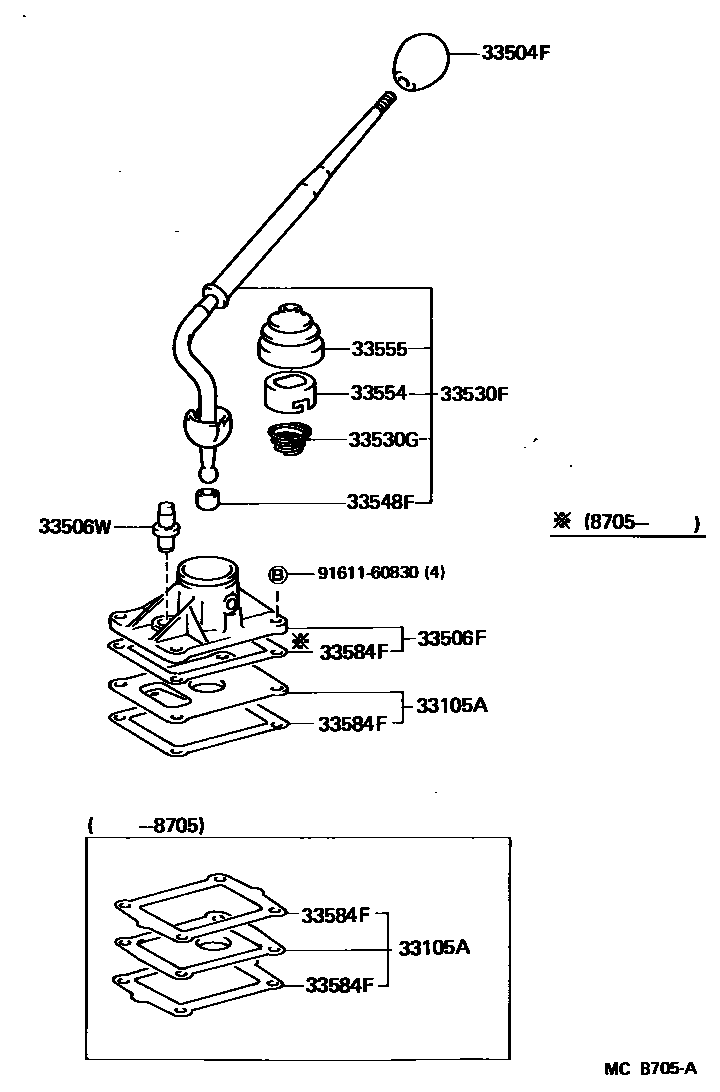

11 parts on this diagram · 6 diagrams in section
