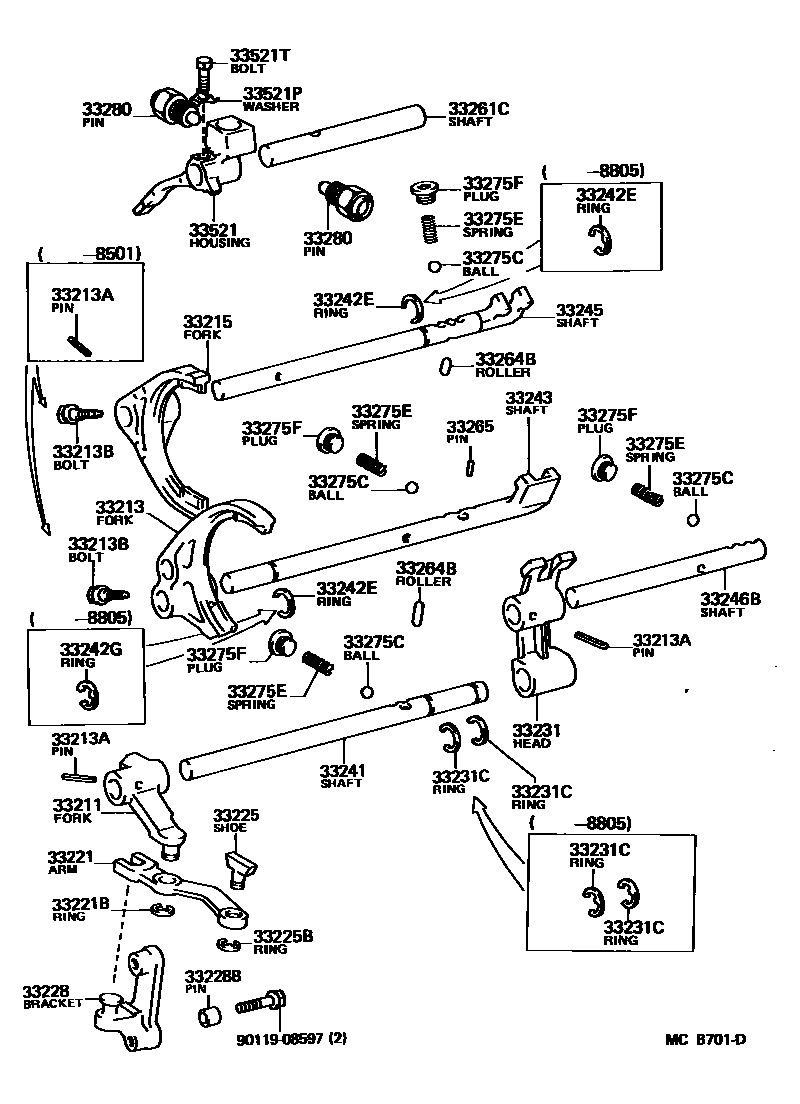

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
sub33213-60051
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231CRING(FOR REVERSE SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
sub33244-60040
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33242GRING, E (FOR SHIFT FORK SHAFT)
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33246BSHAFT, REVERSE SHIFT HEAD
33261CSHAFT, SHIFT & SELECT LEVER
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=21.6,PIN,PIN,L=21.6
L=13.6,OD=9.5,PIN,L=13.6
L=17.9
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
L=11.5,OD=4.8
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=22.1
L=34.5
L=31.3
L=33.6
33275FPLUG (FOR SHIFT DETENT BALL)
33280PIN ASSY, REVERSE RESTRICT
33521HOUSING, SHIFT LEVER
33521PWASHER, LOCK (FOR SHIFT LEVER HOUSING)
33521TBOLT (FOR SHIFT LEVER HOUSING)
9011908597
main90119-08597
30 parts on this diagram · 5 diagrams in section
