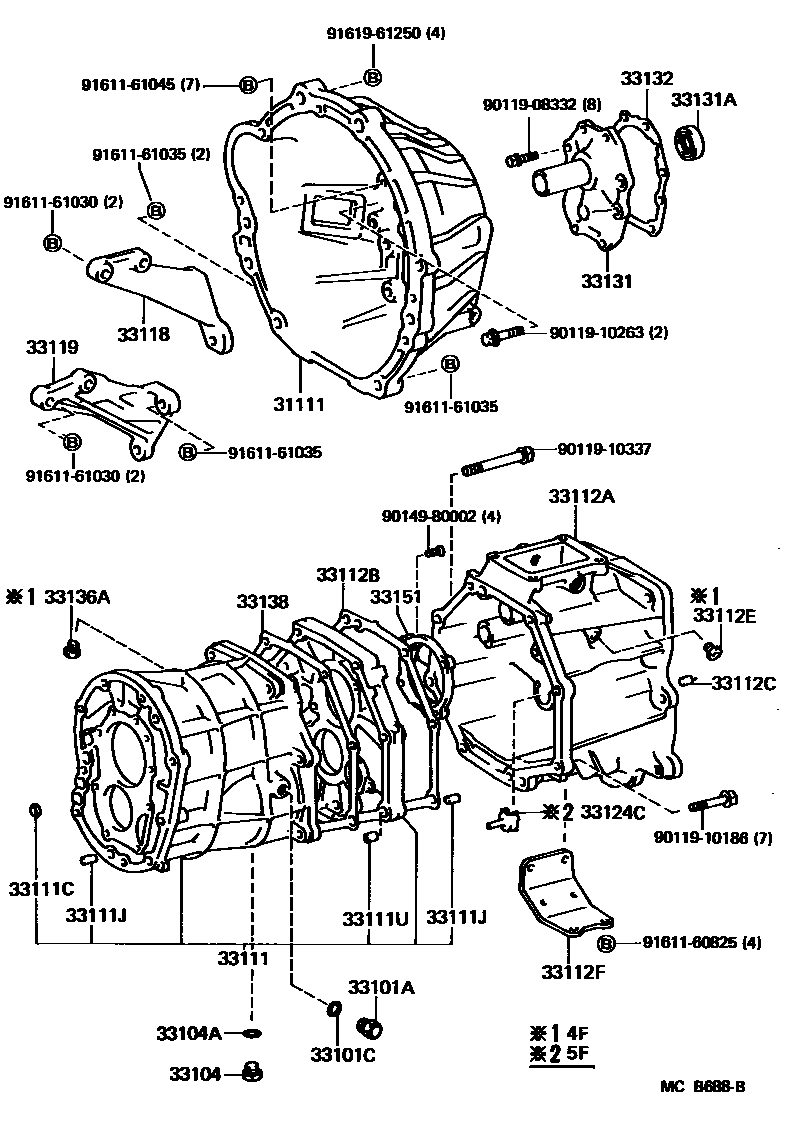

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31111HOUSING, CLUTCH

main31111-22111iLJ70..DSL198411-199001

sub31111-22112

main31111-25030iLJ70..TD198510-199001

main31111-35010iRJ70198411-198804

sub31111-35011

main31111-35011iRJ70198804-199001

main31111-60110iHJ75..GEN198411-198505

sub31111-60160

main31111-60120iHJ75198411-198505

W/TACHOMETER

sub31111-60170

main31111-60130iBJ70,75..GEN198411-198505

sub31111-60180

main31111-60140iBJ7#198411-198505

W/TACHOMETER

sub31111-60190

main31111-60160iHJ75..GEN,SA198505-199001

main31111-60170iHJ75..ARL,GEN198505-199001

W/TACHOMETER

main31111-60180iBJ70,73,75..STD..GEN198505-199001

main31111-60190iBJ75198505-199001

W/TACHOMETER

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLJ70..TD198510-199001

main90341-18057iBJ74..5F198411-199001

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

33111CASE, MANUAL TRANSMISSION

main33101-35010iLJ70,RJ70..CBR,DSL198411-198808

sub33101-35050

main33101-35030iLJ70..TD198510-199001

sub33101-35031

sub90341-16014

main33101-35050iLJ70,RJ70..CBR,DSL198808-199001

sub33101-35051

main33111-60070iBJ7#,FJ75,HJ75198411-198510

main33111-60080iBJ7#,FJ7#,HJ75..MTM198510-199001

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLJ70,RJ70198411-199001

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10214iBJ7#,FJ7#,HJ75..5F198411-199001

L=14,OD=10,L=14,OD=10

main90250-12002iLJ70,RJ70198411-199001

L=16,OD=12

main90250-12146iBJ7#,FJ7#,HJ75..MTM198411-199001

L=17,OD=12,L=17,OD=12

main90250-12216iBJ7#,FJ7#,HJ75..MTM198411-199001

L=14,OD=12,L=14,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iLJ70,RJ70198411-199001

L=14,OD=15

33112AADAPTER, TRANSFER

main36117-60010iFJ7#..5F..ME198411-198703

sub36117-60011

main36117-60011iFJ7#..5F..ME198703-199001

main36117-60020iBJ7#,FJ7#,HJ75..5F..(ARL,GEN,SA)198411-198703

sub36117-60021

main36117-60020iFJ7#..5F..ME198411-198510

*47

sub36117-60021

main36117-60021iBJ7#,FJ7#,HJ75..5F..(ARL,GEN,SA)198703-199001

main36117-60030iBJ70,73,75,FJ7#,HJ75..4F198411-199001

main36117-60040iLJ70,RJ70..CBR,DSL198411-198808

sub36117-60060

main36117-60050iLJ70..TD198510-199001

main36117-60060iLJ70,RJ70..CBR,DSL198808-199001

33112BGASKET, TRANSFER ADAPTER

main33138-28020iLJ70,RJ70..CBR,DSL198411-198808

main33142-60020iBJ7#,FJ7#,HJ75..MTM198411-199001

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-12216iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-12008iLJ70,RJ70..4F198411-199001

33112FBRACKET, TRANSFER ADAPTER

main36118-60010iLJ70,RJ70..CBR,DSL198411-199001

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLJ70198411-199001

main33118-35020iRJ70198411-199001

main33118-36020iBJ7#..MTM198411-198708

main33118-36021iBJ7#198708-199001

main33118-60010iHJ75..ARL,GEN198411-199001

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLJ70198411-199001

main33119-35020iRJ70198411-198804

sub33119-35021

main33119-35021iRJ70198804-199001

main33119-36020iBJ7#..MTM198411-198808

main33119-36040iBJ7#..MTM198808-199001

sub33119-36041

main33119-60010iHJ75..ARL,GEN198411-199001

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36010iLJ70,RJ70..5F198411-199001

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLJ70,RJ70..CBR,DSL198411-199001

main33131-35030iLJ70..TD198510-199001

sub33131-35031

main33131-60020iFJ7#,HJ75..MTM198411-198510

main33131-60030iBJ7#198411-198510

main33131-60040iFJ7#,HJ75..MTM198510-199001

main33131-60050iBJ7#..MTM198510-199001

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-28004iBJ7#,FJ7#,HJ75..MTM198411-198510

main90311-30010iLJ70,RJ70..CBR,DSL198808-199001

sub90311-30014

main90311-30115iLJ70,RJ70..CBR,DSL198411-198808

main90311-32012iLJ70..TD198510-199001

main90311-32013iBJ7#,FJ7#,HJ75..MTM198510-199001

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLJ70,RJ70..CBR,DSL198411-199001

main33132-36010iBJ7#,FJ7#,HJ75..MTM198411-198510

main33132-60020iBJ7#,FJ7#,HJ75..MTM198510-199001

33136APLUG(FOR TRANSMISSION INTERMEDIATE PLATE)

main90341-12008iLJ70,RJ70..4F198411-199001

33138GASKET, INTERMEDIATE PLATE

main33138-28010iLJ70,RJ70..CBR,DSL198411-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-28010iLJ70,RJ70..CBR,DSL198411-198808

main33151-35020iLJ70..TD198510-199001

main33151-35030iLJ70,RJ70..CBR,DSL198808-199001

main33151-60010iBJ7#,FJ7#,HJ75..5F198411-199001

9011910186

main90119-10186

9011910263

main90119-10263

9011910337

main90119-10337

9011988332

main90119-88332

9014980002

main90149-80002

9161160825

main91611-60825

9161161030

main91611-61030

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

33 parts on this diagram · 6 diagrams in section
