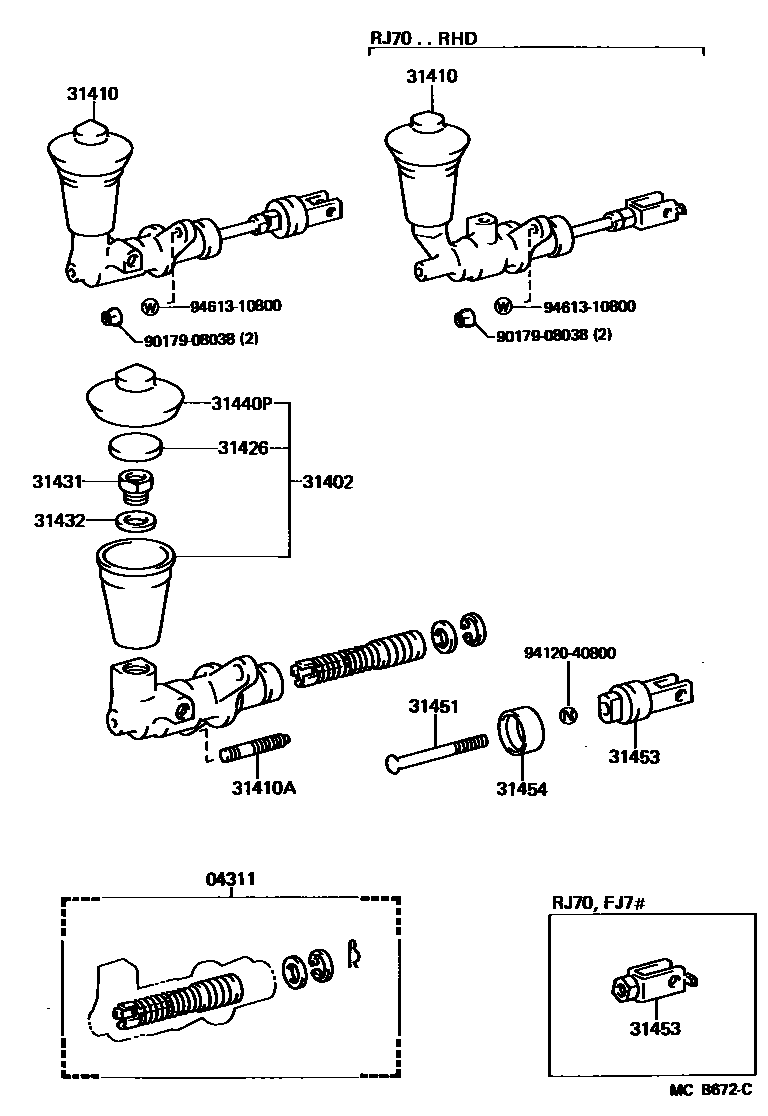

CLUTCH MASTER CYLINDER

0001 1 0004 1 0005 1 0006 1 0008 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12040iRJ70198610-198704

sub04311-12041

main04311-12041iRJ70198704-198708

sub04311-12050

main04311-12050iRJ70198708-199001

sub04311-12051

main04311-17020iLJ70198411-198703

sub04311-26040

main04311-22022iLJ70198710-199001

sub04311-22050

main04311-26041iLJ70198703-198710

main04311-60040iBJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME)198411-198703

W/CLUTCH BOOSTER

sub04311-60041

main04311-60041iBJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME)198703-198710

W/CLUTCH BOOSTER

sub04311-60042

main04311-60042iBJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME)198710-199001

W/CLUTCH BOOSTER

main04311-60050iBJ7#,FJ7#,HJ75..MTM198411-198710

sub04311-60051

main04311-60051iBJ7#,FJ7#,HJ75..MTM198710-199001

main04311-60070iRJ70198411-198610

sub04311-12020

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iBJ70,73,75,FJ7#,HJ75..MTM..(ARL,GEN,ME)198411-199001

W/CLUTCH BOOSTER

main31402-24010iBJ74..5F198510-199001

W/CLUTCH BOOSTER

main31402-30030iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..MTM..(CBR,DSL)198411-199001

main31402-60020iBJ74,LJ70..RHD..5F198510-199001

sub31402-30061

31410CYLINDER ASSY, CLUTCH MASTER

main31401-60020iBJ7#,FJ7#,HJ75..MTM198411-198703

W/CLUTCH BOOSTER

sub31401-60021

main31401-60021iBJ70,73,75,FJ7#,HJ75..LHD..MTM198703-198710

W/CLUTCH BOOSTER

sub31401-60022

main31401-60022iBJ70,73,75,FJ7#,HJ75..LHD..MTM198710-199001

W/CLUTCH BOOSTER

main31401-60030iBJ70,73,75,FJ7#,HJ75..RHD..MTM..(ARL,GEN)198510-198703

W/CLUTCH BOOSTER

sub31401-60031

main31401-60031iBJ70,73,75,FJ7#,HJ75..RHD..MTM..(ARL,GEN)198703-198710

W/CLUTCH BOOSTER

sub31401-60032

main31401-60032iBJ70,73,75,FJ7#,HJ75..RHD..MTM..(ARL,GEN)198710-199001

W/CLUTCH BOOSTER

main31401-60040iBJ74..5F198510-198703

W/CLUTCH BOOSTER

sub31401-60041

main31401-60041iBJ74..5F198703-198710

W/CLUTCH BOOSTER

sub31401-60042

main31401-60042iBJ74..5F198710-199001

W/CLUTCH BOOSTER

main31410-60120iFJ7#..MTM198411-198710

sub31410-60121

main31410-60121iFJ7#..MTM198710-199001

sub31410-60122

main31410-60190iLJ70..DSL198411-198703

sub31410-60191

main31410-60191iLJ70..DSL198703-198710

sub31410-60192

main31410-60192iLJ70..RHD..GEN198710-199001

main31410-60200iRJ70..RHD198411-198708

sub31410-60201

main31410-60201iRJ70..RHD198708-199001

sub31410-60202

main31410-60210iRJ70..LHD198411-198708

sub31410-60211

main31410-60211iRJ70..LHD198708-199001

sub31410-60212

main31410-60290iBJ70,73,75,HJ75198411-198710

sub31410-60291

main31410-60291iBJ70,73,75,HJ75198710-199001

sub31410-60292

main31410-60320iBJ74..5F198510-198710

sub31410-60321

main31410-60321iBJ74..5F198710-199001

sub31410-60322

main31410-60330iLJ70..RHD..TD198510-198703

sub31410-60331

main31410-60331iLJ70..ARL198703-198710

sub31410-60332

main31410-60332iLJ70..ARL198710-199001

main31410-60340iLJ70..TD..GEN198712-199001

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME)198411-199001

W/CLUTCH BOOSTER

main47231-20010iBJ74,LJ70..RHD..5F198510-199001

main47231-30010iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..MTM..(CBR,DSL)198411-199001

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLJ70..LHD..TD198411-199001

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iRJ70198411-198609

main31451-22070iLJ70198609-199001

main31451-30060iLJ70198411-198609

main31451-30120iRJ70198609-199001

main31451-60060iFJ7#..MTM198411-199001

sub31410-60292

main31451-60070iBJ7#,HJ75..MTM198411-199001

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30041iLJ70..LHD..DSL198411-199001

main31404-36020iBJ7#,HJ75..MTM198411-199001

sub31404-36021

main31404-36030iLJ70..TD..GEN198712-199001

sub31404-36031

main31453-22010iBJ70,73,75,HJ75..LHD198411-198610

W/CLUTCH BOOSTER

sub31453-35010

main31453-22010iFJ7#,RJ70..MTM198411-198610

sub31453-35010

main31453-35010iBJ70,73,75,HJ75..LHD198610-199001

W/CLUTCH BOOSTER

main31453-60020iBJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN)198510-199001

W/CLUTCH BOOSTER

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLJ70,RJ70198411-199001

main31454-30030iBJ7#,FJ7#,HJ75..MTM198411-199001

main47265-20050iBJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME)198411-199001

W/CLUTCH BOOSTER

9017908038

main90179-08038

9412040800

main94120-40800

9461310800

main94613-10800

14 parts on this diagram · 5 diagrams in section
