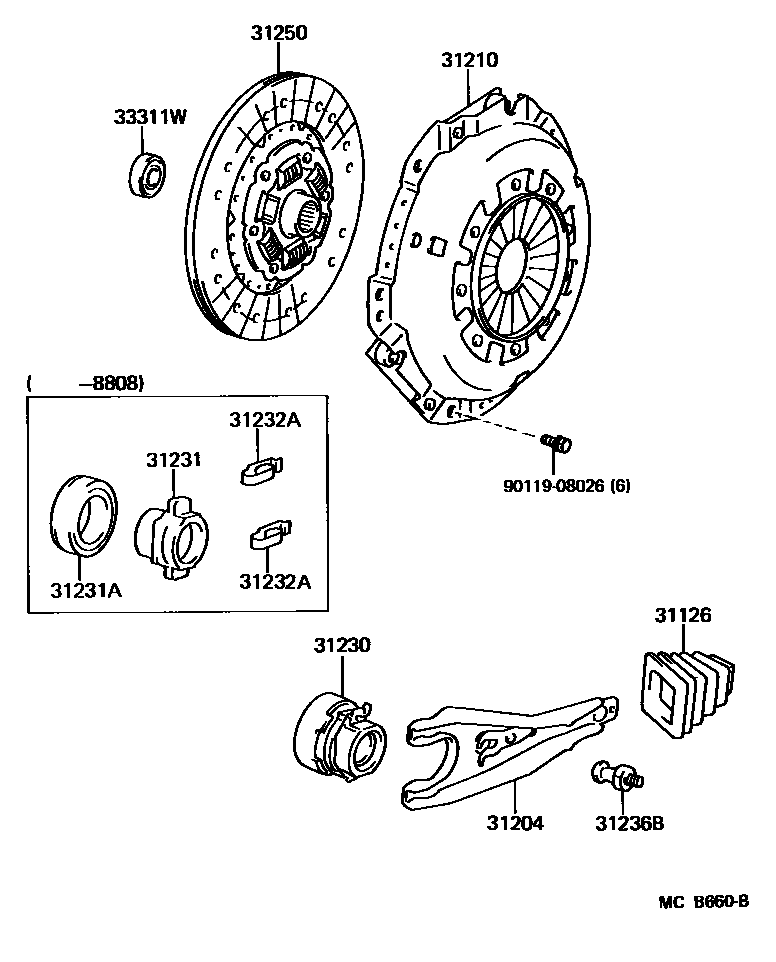

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLJ70,RJ70..CBR,TD198411-199001

main31126-20070iLJ70..DSL198411-199001

main31126-60021iFJ7#,HJ75..MTM198411-199001

main31126-60030iBJ7#..MTM198411-199001

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20070iRJ70198411-198508

sub31204-20072

main31204-20071iRJ70198508-199001

main31204-20090iLJ70..DSL198411-198808

main31204-35030iLJ70..TD198510-199001

sub31204-35031

main31204-35050iLJ70..DSL198808-199001

main31204-60060iFJ7#..MTM198411-199001

main31204-60070iHJ75198411-199001

main31204-60080iBJ7#..MTM198411-199001

31210COVER ASSY, CLUTCH

main31210-14130iLJ70..DSL198411-198808

main31210-24020iLJ70..TD198801-198808

main31210-35090iLJ70..DSL198808-199001

sub31210-22100

main31210-35110iLJ70..TD198808-199001

sub31210-53040

main31210-35130iRJ70198801-199001

sub31210-53040

main31210-36100iBJ70,73,75198411-198910

sub31210-36101

main31210-36140iBJ74..5F198809-198910

main31210-36160iBJ74..5F198910-199001

sub31210-36161

main31210-60070iBJ74..5F198510-198712

main31210-60071iBJ74..5F198712-198809

main31210-60080iFJ7#..ARL198411-198709

main31210-60081iFJ7#..ARL198709-198712

main31210-60082iFJ7#..ARL198712-198910

main31210-60100iFJ7#..ARL198910-199001

sub31210-60101

main31210-60130iBJ70,73,75198910-199001

sub31210-60190

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLJ70..TD198803-198808

sub31230-35071

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLJ70,RJ70..CBR,DSL198411-198808

main31231-35030iLJ70..TD198510-198803

main31231-60050iHJ75198411-198709

main31231-60051iHJ75198709-199001

main31231-60070iFJ7#..MTM198411-198709

main31231-60071iFJ7#..MTM198709-199001

main31231-60080iBJ70,73,75198411-198808

main31231-60100iBJ74..5F198510-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLJ70,RJ70..CBR,DSL198803-198808

main90363-45002iBJ70,73,75198411-199001

main90363-45009iBJ74..5F198510-198709

main90363-45013iBJ74..5F198709-199001

main90363-52001iFJ7#,HJ75..MTM198411-198709

31232ACLIP, RELEASE BEARING HUB

main31232-22010×2iLJ70,RJ70..CBR,DSL198411-198808

main31232-35010iLJ70..TD198510-198803

main31232-60020×2iBJ7#,FJ7#,HJ75..MTM198411-199001

31236BSUPPORT, RELEASE FORK

main31236-30060iLJ70,RJ70..CBR,DSL198411-199001

main31236-35030iLJ70..TD198510-199001

main31236-60020iFJ7#..MTM198411-199001

main31236-60030iBJ7#,HJ75..MTM198411-199001

31250DISC ASSY, CLUTCH

main31250-22290iRJ70198910

sub31250-22320

main31250-26140iRJ70198712-198910

sub31250-14171

main31250-30350iLJ70198411-198605

sub31250-30351

main31250-35101iRJ70198411-198506

main31250-36280iBJ70,73,75198512-198610

main31250-36281iBJ70,73,75198610-198705

main31250-36301iBJ70,73,75198705-198708

sub31250-36302

main31250-60080iFJ7#..MTM198411-199001

sub31250-36340

main31250-60090iBJ70,73,75198411-198512

main31250-60100iHJ75198411-198601

main31250-60110iRJ70198506-198712

sub31250-60111

main31250-60120iBJ74..5F198510-198610

main31250-60121iBJ74..5F198610-198708

sub31250-36401

main31250-60140iHJ75198601-198708

sub31250-60170

main31250-60150iLJ70198605-198712

main31250-60151iLJ70198712-199001

sub31250-60152

main31250-60180iBJ70,73,75198708-199001

sub31250-60181

main31250-60190iBJ74..5F198708-199001

sub31250-60220

main31250-60200iHJ75198708-199001

sub31250-60170

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBJ7#,LJ70,RJ70198411-199001

sub90363-12024

main90363-15004iFJ7#,HJ75..MTM198411-199001

9011908026

main90119-08026

11 parts on this diagram · 6 diagrams in section
