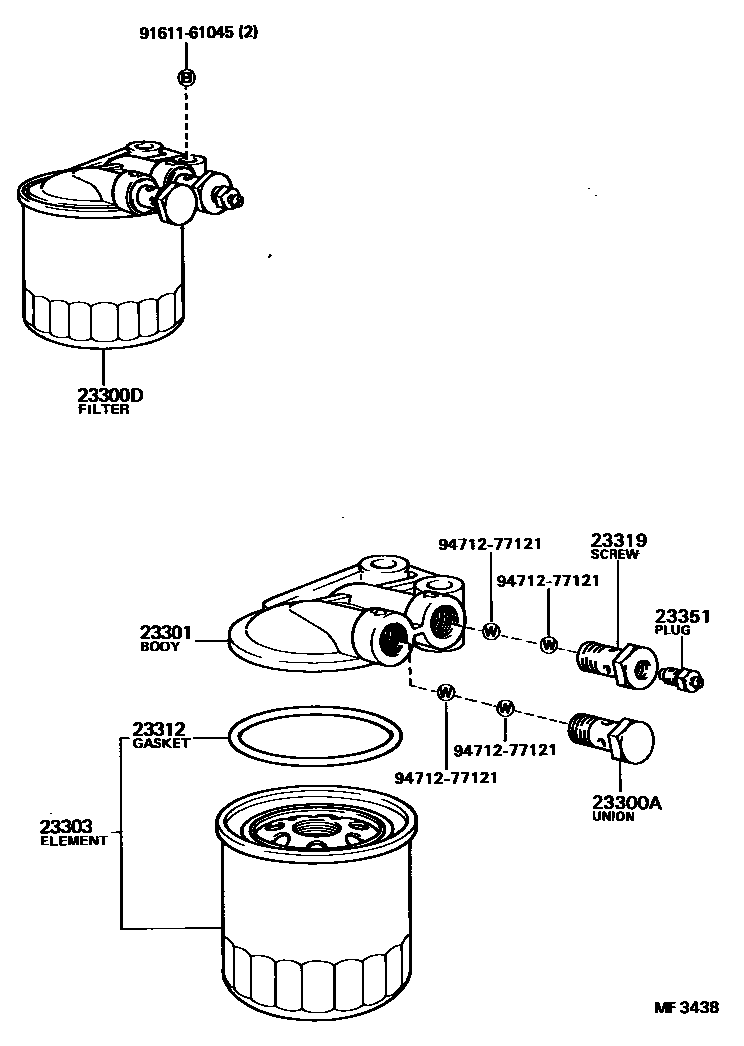

FUEL FILTER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0011 1 0012 1 0013 1

23300FILTER ASSY, FUEL

main23300-35060i22R..RJ70198510-199001

main23300-38010i3F..FJ7#198411-198704

main23300-44060i22R..RJ70198411-198510

main23300-61060i3F..FJ7#198704-199001

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90099-18010i2H..HJ75198512-199001

main90401-14060i2H..HJ75198411-198808

sub90099-18010

main90405-08016i2L..LJ70198411-198510

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-56040i3B..BJ70,73,75198411-198808

main23300-56080i13BT..BJ74198510-199001

main23300-58080i3B..BJ70,73,75..LHD198808-199001

sub23303-64010

sub23301-58060

sub84461-35030

main23300-64091i3B..BJ70,73,75..RHD198808-199001

main23300-68030i2H..HJ75198411-199001

23301BODY SUB-ASSY, FUEL FILTER

main23311-56040i3B..BJ70,73,75198411-198808

main23311-56070i13BT..BJ74198510-199001

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071i13BT..BJ74198411-199001

sub23303-54072

main23303-56031i3B..BJ70,73,75198411-198808

main23303-64010i2L#..LJ70198411-199001

23312GASKET, FILTER BOWL

main23312-56021i3B..BJ70,73,75198411-198808

23319SCREW, FUEL PIPE FOLLOW

main23319-48010i13BT,3B..BJ7#198411-199001

main90099-18011i2L..LJ70198411-198510

23351PLUG, AIR VENT

main23323-56010i2H..HJ75..LHD198411-199001

W/SEDIMENTER,NO.2

main23351-54010i2H..HJ75198411-199001

W/SEDIMENTER,NO.1

main47547-12030i13BT,3B..BJ7#198411-199001

FILTER

9161161045

main91611-61045

9471277121

main94712-77121

10 parts on this diagram · 10 diagrams in section
