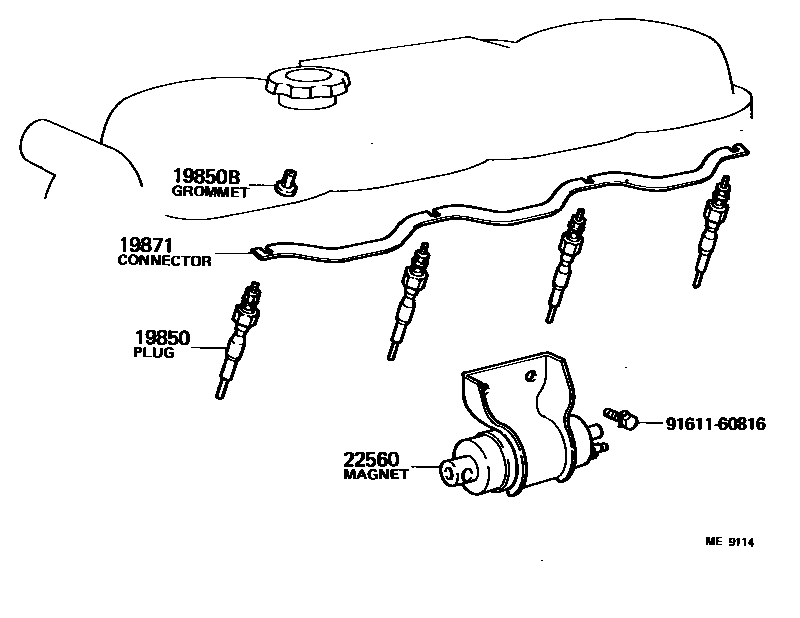

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

19850PLUG ASSY, GLOW

main19850-54031×4i2L..LJ70..4F;2L..LJ70..LHD..5F198411-199001

*BV-GV=12V-11V,*12V-11V

main19850-54050×4i2L..LJ70..RHD..5F198411-198510

*BV-GV=12V-7V,*12V-7V

main19850-54071×4i2LT..LJ70198510-199001

*BV-GV=12V-6V,*12V-6V

main19850-58010×4i3B..BJ70..SOT198808-199001

*BV-GV=24V-23V,*24V-23V

main19850-64031×6i2H..HJ75198808-199001

*BV-GV=12V-11V,*12V-11V

main19850-68010×6i3B..BJ70,73,75..GEN,ME198411-198808

*BV-GV=12V-10.5V,*12V-10.5V

main19850-68050×6i3B..BJ70,73..ARL198411-198609

*BV-GV=12V-6V,*12V-6V

main19850-68051×6i3B..BJ70,73..ARL198609-198808

*BV-GV=12V-6V,*12V-6V

main19850-68060×4i3B..BJ70..RHD..SOT198411-198808

*BV-GV=24V-14V,*24V-14V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×5i2L#..LJ70198411-199001

19871CONNECTOR, GLOW PLUG NO.1

main19871-54010i2L..LJ70198411-198509

main19871-54011i2L#..LJ70198509-199001

main19871-56020i3B..BJ70,73,75198411-199001

main19871-68011i2H..HJ75198411-199001

22560MAGNET ASSY, OVER INJECTION

main22560-48010i2H..HJ75..GEN198411-199001

main22560-56030i3B..BJ70..RHD..SOT198411-198608

24V

main22560-56040i3B..BJ70,73,75..GEN,ME198411-198808

9161160816

main91611-60816

5 parts on this diagram · 6 diagrams in section
