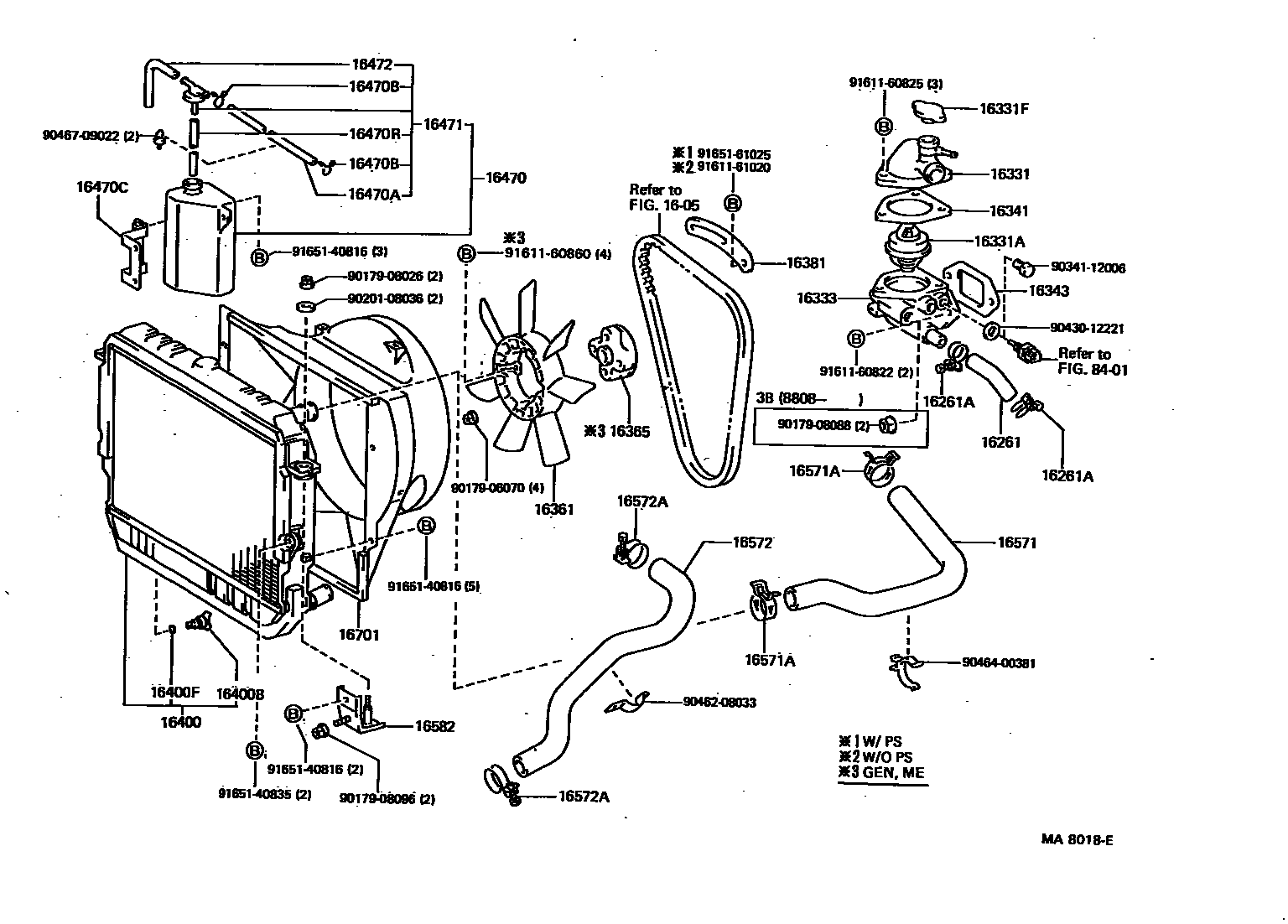

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

1605

16261HOSE, WATER BY-PASS

main16261-35040i22R..RJ70198411-198510

main16261-35060i22R..RJ70198510-199001

sub16261-35061

main16261-54030i2LT..LJ70198510-199001

main16261-56012i13BT,3B..BJ7#198411-199001

main16261-61010i3F..FJ7#198411-198708

main16261-61020i3F..FJ7#198708-199001

main99555-40090i2H..HJ75198411-199001

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053×2i13BT,3B..BJ7#198411-198609

main90044-67103×2i13BT,3B..BJ7#198609-198808

main90467-15004×2i2LT..LJ70198510-198909

main90467-15022×2i2LT..LJ70198909

main90467-20005×2i22R..RJ70198411-199001

sub96134-41900

main90467-28004×2i13BT,3B..BJ7#198808-199001

sub90467-28007

main96111-10330×2i2H..HJ75198411-199001

main96112-10250×2i3F..FJ7#198411-199001

16331OUTLET, WATER

main16303-61010i3F..FJ7#198411-199001

main16331-35050i22R..RJ70198411-199001

sub16331-35051

main16331-54030i2L..LJ70198411-199001

main16331-54080i2LT..LJ70198510-198511

main16331-54081i2LT..LJ70198511-199001

main16331-58010i3B..BJ70,73,75198411-199001

main16331-58030i13BT..BJ74198510-199001

main16331-68011i2H..HJ75198411-199001

main16331-68020i2H..HJ75..HT198510-199001

W/COOLER

16331ATHERMOSTAT

main90916-03026i2H..HJ75198411-199001

*WAX 82-95

main90916-03052i3F..FJ7#198805-199001

*WAX 88-100

main90916-03055i22R..RJ70198411-198701

*WAX 88-100

main90916-03059i3B..BJ70..RHD..5F..GEN198411-198608

*WAX 88-100,IRELAND SPEC

sub90916-03080

main90916-03062i2L#..LJ70198411-198805

*WAX 88-100

main90916-03066i13BT,3B..BJ7#198411-198808

*WAX 82-95

main90916-03071i3F..FJ7#198411-198805

*WAX 88-100

main90916-03072i2L#..LJ70198805-199001

*WAX 88-100

sub90916-03099

main90916-03077i13BT,3B..BJ7#198808-199001

*WAX 82-95

sub90916-03102

main90916-03078i22R..RJ70198701-199001

*WAX 88-100

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-71010i2LT..LJ70198411-199001

sub16401-54750

16333HOUSING, WATER OUTLET

main16304-61010i3F..FJ7#..ARL,SA198411-199001

W/HEATER

main16304-61020i3F..FJ7#..5F..ME198411-199001

main16331-61060i3F..FJ70,73..4FC..ME198510-199001

main16333-54050i2L..LJ70198411-199001

main16333-54060i2LT..LJ70198510-198511

main16333-54061i2LT..LJ70198511-198708

main16333-54100i2LT..LJ70198708-199001

main16333-56060i13BT,3B..BJ7#198411-198808

sub16333-58080

sub16343-56023

sub90341-12006

sub90430-12221

sub92122-60832

sub94185-60800

main16333-56070i13BT,3B..BJ7#198808-198904

sub92112-60835

main16333-56071i13BT,3B..BJ7#198904-198908

main16333-56072i13BT,3B..BJ7#198908

sub16333-58050

main16333-68010i2H..HJ75198411-199001

16341GASKET, WATER OUTLET

main16341-35010i2LT..LJ70198411-199001

main16341-54011i2L..LJ70198411-198808

main16341-54030i2L..LJ70198808-199001

sub16341-54040

main16341-56020i13BT,3B..BJ7#198411-198808

sub16341-56021

main16341-56030i13BT,3B..BJ7#198808-199001

main16341-61020i3F..FJ7#198411-199001

sub16341-61030

main16341-68010i2H..HJ75198411-199001

sub16341-68020

16343GASKET, WATER OUTLET HOUSING

main16343-54011i2L..LJ70198411-198912

main16343-54020i2LT..LJ70198510-198511

main16343-54021i2LT..LJ70198511-199001

main16343-56020i13BT,3B..BJ7#198411-198808

sub16343-56022

main16343-56021i13BT,3B..BJ7#198908-199001

sub16343-56022

main16343-61010i3F..FJ7#198411-199001

sub16343-61020

main16343-68010i2H..HJ75198411-199001

sub16343-68020

16361FAN

main16361-38010i3B..BJ70..RHD..5F..GEN198411-198608

IRELAND SPEC

main16361-41070i2H..HJ75..SA198510-199001

sub16361-41071

main16361-47010i3B..BJ70,73,75..GEN,ME198411-199001

main16361-54010i2L..LJ70198411-198510

main16361-54020i2L#..LJ70198510-199001

main16361-60090i3F..FJ7#..MTM..GEN198411-199001

OD=410,6BLADES

main16361-60101i3F..FJ7#..MTM..(GEN,ME,SA)198411-199001

OD=430,8BLADES,W/COOLER

main16361-61020i3F..FJ70..4FC..GEN198411-199001

OD=450,7BLADES

main16361-68010i2H..HJ75..ARL198411-199001

main16361-68040i2H..HJ75..GEN198411-199001

16365SPACER, FAN

main16365-57011i3B..BJ70,73,75..GEN,ME198411-199001

main16365-60020i2H..HJ75..GEN198411-199001

16381BAR, FAN BELT ADJUSTING

main16381-35010i22R..RJ70198411-199001

main16381-54011i2L#..LJ70198411-199001

main16381-56030i13BT,3B..BJ7#198411-198608

main16381-56060i3B..BJ70..SOT198808-199001

24V

sub16381-58120

main16381-56070i3B..BJ70,73,75198808-199001

sub16381-58110

main16381-58020i13BT..BJ74198808-199001

W/PS

main16381-58060i3B..BJ70,73,75198808-199001

W/PS

main16381-61020i3F..FJ7#198411-199001

main16381-68010i2H..HJ75..GEN198510-199001

main16381-68030i2H..HJ75198510-199001

12V 80A

16400RADIATOR ASSY

main16400-35230i22R..RJ70198411-198510

main16400-35231i22R..RJ70198510-198804

main16400-35232i22R..RJ70198804-199001

main16400-54330i2L..LJ70198411-198510

main16400-54331i2L..LJ70198510-198802

main16400-54332i2L..LJ70198802-199001

main16400-54490i2LT..LJ70198510-198802

main16400-54491i2LT..LJ70198802-199001

main16400-58160i3B..BJ70..RHD..5F..GEN198411-198608

IRELAND SPEC

sub16400-58310

main16400-58170i13BT,3B..BJ7#..MTM198411-199001

main16400-58220i13BT..BJ74..4FC198510-199001

main16400-61060i3F..FJ70,73..MTM..GEN198411-199001

main16400-61070i3F..FJ70..LHD..HT..5F..GEN198411-198703

VENEZUELA SPEC

main16400-61080i3F..FJ70,73..4FC198411-199001

main16400-68070i2H..HJ75..ARL,GEN198510-199001

main16400-68120i2H..HJ75..SA198510-198601

main16400-68121i2H..HJ75..SA198601-199001

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i3F..FJ7#198411-199001

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i3F..FJ7#198411-199001

16470TANK ASSY, RADIATOR RESERVE

main16470-54070i2LT..LJ70198510-199001

main16470-54100i2L..LJ70198411-199001

main16470-58040i13BT,3B..BJ7#198411-199001

main16470-61020i3F..FJ7#198411-199001

main16470-68030i2H..HJ75..ARL,GEN198411-199001

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i13BT,3B..BJ7#198411-199001

L=1800(*H,L=960)

main90445-12078i2H..HJ75..ARL,GEN198411-199001

L=1800(*H,L=480),NO.1,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3F..FJ7#198411-199001

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-54100i2LT..LJ70198510-199001

main16611-61010i3F..FJ7#198411-199001

main16611-68020i13BT,3B..BJ7#198411-199001

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i13BT,3B..BJ7#198411-199001

L=1450(*H,L=220)

16471CAP SUB-ASSY, RESERVE TANK

main16401-42010i2H..HJ75..5F..GEN198503-198510

SOUTH AFRICA SPEC

main16405-54100i2L..LJ70198411-199001

main16405-54130i2LT..LJ70198510-199001

main16405-58020i13BT,3B..BJ7#198411-199001

main16405-61010i3F..FJ7#198411-199001

sub16405-17010

main16405-68020i2H..HJ75..ARL,GEN198411-199001

16472HOSE, BREATHER

main16472-56110i3F..FJ7#198411-198609

main85338-30010i13BT,3B..BJ7#198411-198609

main85338-71030i2L#..LJ70198411-199001

main85338-74040i13BT,3B..BJ7#198609-199001

16571HOSE, RADIATOR, INLET

main16571-35100i22R..RJ70198411-199001

main16571-54140i2LT..LJ70198510-199001

main16571-54200i2L..LJ70198411-199001

main16571-58040i13BT,3B..BJ7#198411-199001

main16571-61081i3F..FJ7#198411-199001

main16571-68050i2H..HJ75198411-199001

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016×2i2H..HJ75..SA198510-199001

main90467-37001×2i2L#..LJ70198411-198812

sub90467-37003

main90467-37002×2i2L#..LJ70198812-199001

sub90467-37005

main90467-42001×2i3F..FJ7#198609-199001

sub90467-41002

main96111-10490×2i13BT,3B..BJ7#198609-198702

16572HOSE, RADIATOR, OUTLET

main16572-35090i22R..RJ70198411-199001

main16572-54110i2LT..LJ70198510-199001

main16572-54210i2L..LJ70198411-199001

main16572-58040i13BT,3B..BJ7#..MTM198411-199001

main16572-58050i13BT..BJ74..4FC198510-199001

main16572-61020i3F..FJ7#198411-199001

WATER PUMP SIDE

main16572-68050i2H..HJ75198411-199001

main16573-61020i3F..FJ7#..MTM198411-199001

RADIATOR SIDE

main16573-61030i3F..FJ70,73..4FC198411-199001

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016i13BT,3B..BJ7#198411-198609

RADIATOR SIDE

main90467-42001i2H..HJ75..5F..GEN198503-198510

SOUTH AFRICA,RADIATOR SIDE

sub90467-41002

main96111-10460×2i2L#..LJ70198411-199001

PIPE SIDE

main96111-10500i2L#..LJ70198411-199001

WATER PUMP SIDE

main96111-10510×2i3F..FJ7#198411-198803

main96111-10560i13BT,3B..BJ7#198411-198609

WATER PUMP SIDE

main96111-10570i13BT,3B..BJ7#198609-199001

WATER PUMP SIDE

16582BRACKET, RADIATOR, NO.1

main16582-68010×2i13BT,3B..BJ7#198411-199001

16701SHROUD SUB-ASSY, FAN

main16711-35040i22R..RJ70198411-199001

main16711-54190i2L..LJ70198411-199001

main16711-54200i2LT..LJ70198510-198708

sub91651-40820

main16711-54250i2LT..LJ70198708-199001

main16711-58020i3B..BJ70..RHD..5F..GEN198411-198608

IRELAND SPEC

main16711-58030i13BT,3B..BJ7#..MTM198411-199001

main16711-58050i13BT..BJ74..4FC198510-199001

main16711-61160i3F..FJ7#..MTM..GEN198411-199001

main16711-61170i3F..FJ7#..MTM..(GEN,ME,SA)198411-199001

OD=430,8BLADES,W/COOLER

main16711-61180i3F..FJ70,73..4FC198411-199001

main16711-61190i3F..FJ7#..5F..(ARL,ME)198411-199001

OD=450,7BLADES

main16711-68040i2H..HJ75198411-199001

8401

9017906070

main90179-06070

9017908026

main90179-08026

9017908088

main90179-08088

9017908096

main90179-08096

9020108036

main90201-08036

9034112006

main90341-12006

9043012221

main90430-12221

9046208033

main90462-08033

9046400381

main90464-00381

9046709022

main90467-09022

9161160822

main91611-60822

9161160825

main91611-60825

9161160860

main91611-60860

9161161020

main91611-61020

9165140816

main91651-40816

9165140835

main91651-40835

9165161025

main91651-61025
