STANDARD TOOL

09110JACK ASSY

main09111-60050iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

sub09110-60060

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60030iBJ75,FJ75,HJ75198411-199001

sub09114-60032

main09114-60040iBJ70,73,FJ70,73,LJ70,RJ70198411-198510

sub09114-60050

main09114-60050iBJ70,73,74,FJ70,73,LJ70,RJ70198510-199001

sub09114-28010

09115ROD SUB-ASSY, JACK HANDLE

main09115-35040iBJ75,FJ75,HJ75198411-199001

main09115-60030iBJ70,73,74,FJ70,73,LJ70,RJ70198411-199001

09116LEVER, JACK HANDLE

main09116-35041iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

09120BAG, TOOL

main09120-60050iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198703

sub09120-60100

main09120-60100iBJ7#,FJ7#,HJ75,LJ70,RJ70198703-199001

sub09120-60102

09130PLIERS

main99913-11500iBJ7#,FJ7#,HJ75,LJ70,RJ70198703-199001

main99913-12000iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198703

09135DRIVER, SCREW

main99915-10700iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

09135ABIT, SCREW DRIVER

main09135-00012iBJ70,FJ70,LJ70,RJ70..HT198411-199001

W/SUN ROOF

09140SPANNER SET

main09140-27010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198608

09141SPANNER

main99914-10810iBJ7#,FJ7#,HJ75,LJ70,RJ70198703-199001

8 X 10,8X10

main99914-11012iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198703

10 X 12,10X12

main99914-11214iBJ7#,FJ7#,HJ75,LJ70,RJ70198703-199001

12 X 14,12X14

main99914-11417iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198703

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10250iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198608

sub99911-20250

main99911-11200iBJ7#,FJ7#,HJ75,LJ70,RJ70198703-199001

main99911-20250iBJ7#,FJ7#,HJ75,LJ70,RJ70198608-198703

sub09029-10250

09150WRENCH, HUB NUT BOX

main09150-60010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198706

main09150-60020iBJ7#,FJ7#,HJ75,LJ70,RJ70198706-199001

09155WRENCH, SPARK PLUG

main09155-26010iRJ70198411-199001

main09155-44010iFJ7#198411-199001

09158WRENCH, DOOR FRAME

main09158-60020iBJ73,74,FJ73;BJ70,FJ70,LJ70,RJ70..SOT198411-199001

09183WRENCH, WHEEL CAP

main09183-00030iBJ70,73,74,FJ70,73198411-199001

W/FREE WHEEL HUB

09183AREPLACER, WHEEL CAP

main09183-60010iBJ70,73,74,FJ70,73198411-199001

W/FREE WHEEL HUB

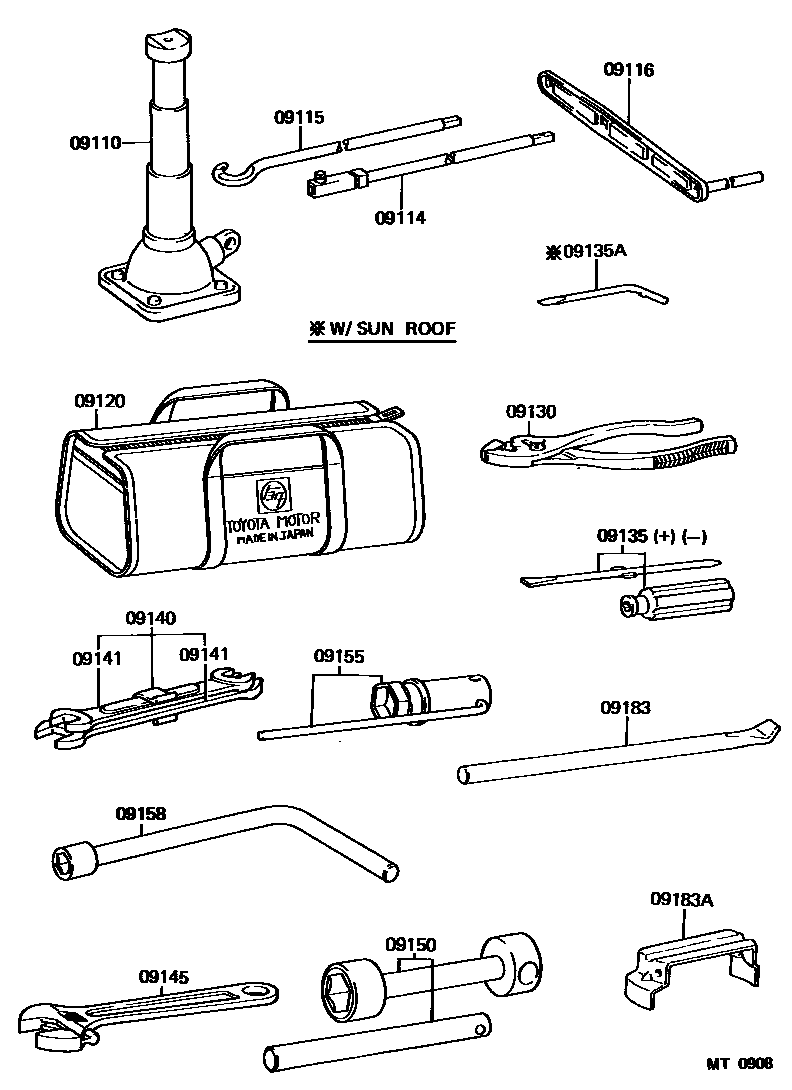

16 parts on this diagram · 1 diagram in section
