SPEAKER
86150ASPEAKER ASSY, W/BRACKET, NO.2
86150HSPEAKER ASSY, W/BRACKET
86160SPEAKER ASSY, FRONT NO.1
AUDIO(FOR OVERSEAS MARKET)-*DA(9INCH) & 6SPEAKER
main86160-30F70iGDJ250..A..GCC;GDJ250..LHD..(R,U);TJA250,TRJ250..R,U;TJA250..A..(GCC,GEN);GDJ250..RHD..(A,R,U)..(GEN,SA)202401
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
HIGH GRADE PACKAGE FOR ADV
86160BSPEAKER ASSY, REAR
AUDIO(FOR OVERSEAS MARKET)-*DA(9INCH) & 6SPEAKER
main86160-1A210iGDJ250..A..GCC;GDJ250..LHD..(R,U);TJA250,TRJ250..R,U;TJA250..A..(GCC,GEN);GDJ250..RHD..(A,R,U)..(GEN,SA)202401
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
HIGH GRADE PACKAGE FOR ADV
86160JSPEAKER ASSY, FRONT NO.3
main86160-33A50iGDJ251..R,U;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)202401
HIGH GRADE PACKAGE FOR ADV
main86160-33A50iGDJ251..R,U;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)202401-202509
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
86160LSPEAKER ASSY, FRONT NO.4
86160PSPEAKER ASSY, FRONT NO.2
AUDIO(FOR OVERSEAS MARKET)-*DA(9INCH) & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
main86160-78070iGDJ251..R,U;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)202401
HIGH GRADE PACKAGE FOR ADV
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
86160YSPEAKER ASSY, REAR NO.2
86160ZSPEAKER ASSY, REAR NO.3
MIDDLE GRADE PACKAGE FOR AR&FUEL TANK-110L&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS& 6SPEAKER
HIGH GRADE PACKAGE FOR AR
HIGH GRADE PACKAGE FOR AR&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
MIDDLE GRADE PACKAGE FOR AR
HIGH GRADE PACKAGE FOR ADV
FUEL TANK-110L
FUEL TANK-110L&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-*DA(9INCH) & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
MIDDLE GRADE PACKAGE FOR AR&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
HIGH GRADE PACKAGE FOR AR&FUEL TANK-110L
HIGH GRADE PACKAGE FOR AR&FUEL TANK-110L&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS &6SPEAKER
MIDDLE GRADE PACKAGE FOR AR&FUEL TANK-110L
86240AEQUALIZER ASSY,STEREO COMPONENT
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
HIGH GRADE PACKAGE FOR AR&FUEL TANK-110L&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH)& 10SPEAKER,TYPE B:REFER ILLUST.
HIGH GRADE PACKAGE FOR AR&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,TYPE B:REFER ILLUST.
MIDDLE GRADE PACKAGE FOR AR&FUEL TANK-110L&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,TYPE B:REFER ILLUST.
MIDDLE GRADE PACKAGE FOR AR&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,TYPE B:REFER ILLUST.
HIGH GRADE PACKAGE FOR ADV&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER(JBL),TYPE B:REFER ILLUST.
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,TYPE B:REFER ILLUST.
86244ABRACKET, EQUALIZER STEREO COMPONENT, NO.1
TYPE A:REFER ILLUST.
86244BBRACKET, EQUALIZER STEREO COMPONENT, NO.2
TYPE A:REFER ILLUST.
86734DMICROPHONE, ACTIVE NOISE CONTROL
9011906A06
main90119-06A06
9015350015
main90153-50015
9015950311
main90159-50311
9015960303
main90159-60303
9018906227
main90189-06227
9046709206
main90467-09206
91631J0612
main91631-J0612
9167380616
main91673-80616

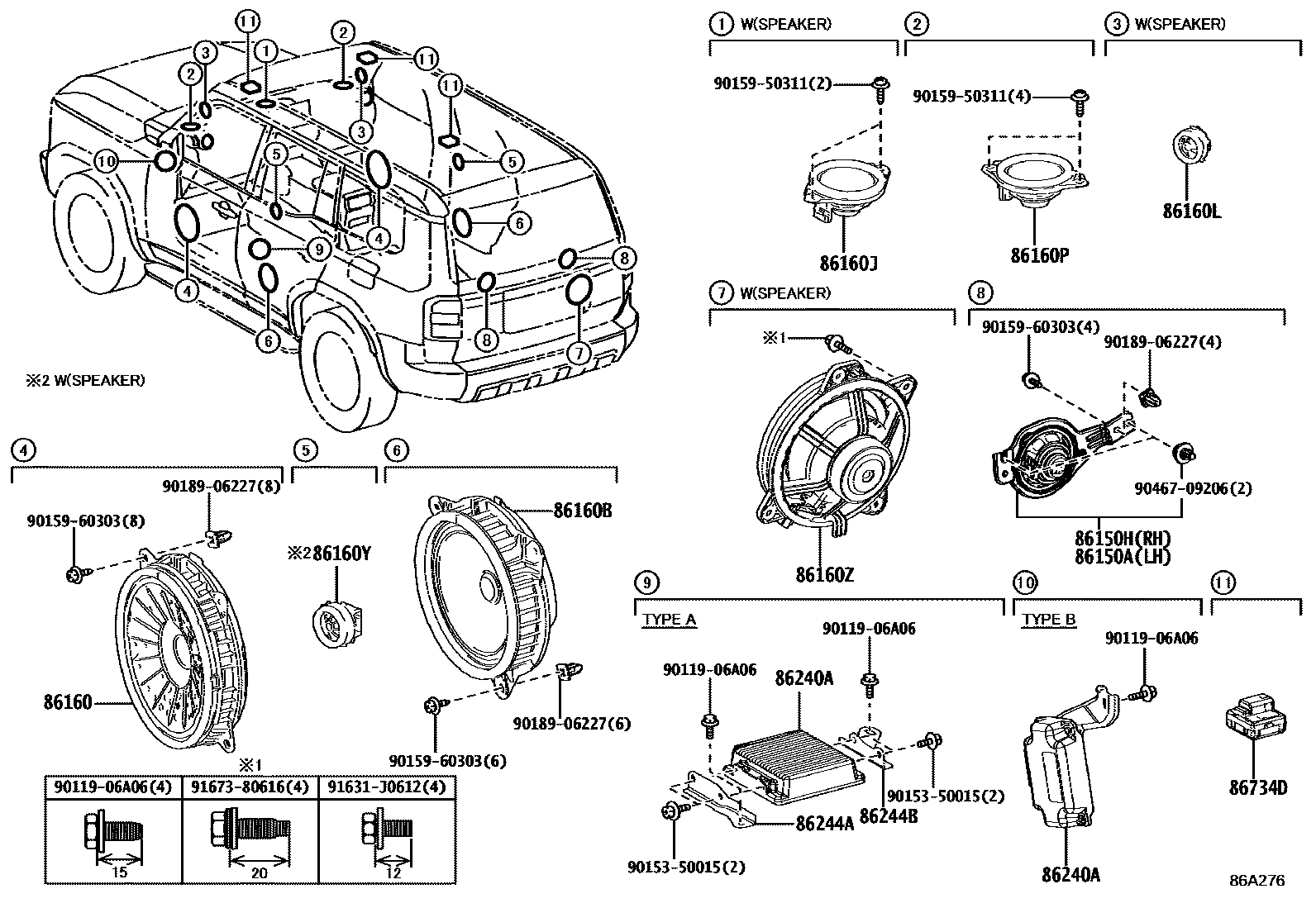

21 parts on this diagram · 1 diagram in section
