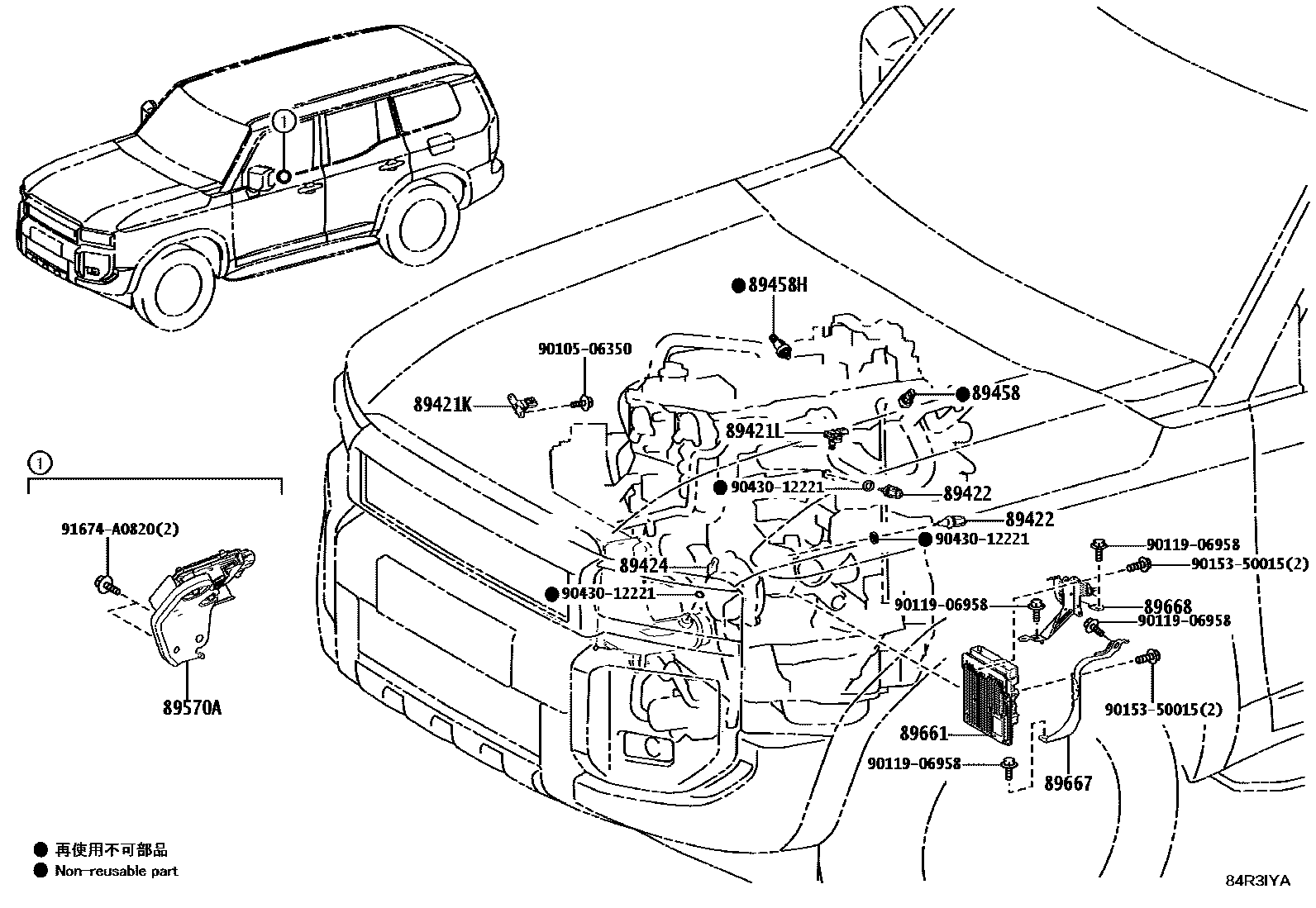

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78030iTJA250202401

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78040iTJA250202401

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTRJ250202401

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-60020iTJA250202401

89458SENSOR, FUEL PRESSURE

main89458-33042iTJA250202401

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-78030iTJA250202401

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60210iTJA250202401

89661COMPUTER, ENGINE CONTROL

main89666-60X00iTRJ250202401

DENSO

main89666-60X10iTJA250202401

DENSO

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60310iTJA250202401

main89667-60320iTRJ250202401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60330iTJA250202401

main89668-60340iTRJ250202401

9010506350

main90105-06350

9011906958

main90119-06958

9015350015

main90153-50015

9043012221

main90430-12221

91674A0820

main91674-A0820

15 parts on this diagram · 2 diagrams in section
