SWITCH & RELAY & COMPUTER
83520GAGE ASSY,OIL PRESSURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
89424GSENSOR, INLET AIR TEMPERATURE
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
89425SENSOR, EXHAUST GAS TEMPERATURE
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
89439DBRACKET, SENSOR, NO.1
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV&EXHAUST EMISSION CONTROL-EURO6-RDE
89439JBRACKET, SENSOR, NO.2
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV&EXHAUST EMISSION CONTROL-EURO6-RDE
89463ASENSOR, NITROGEN OXIDES
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
89463CSENSOR, NITROGEN OXIDES, NO.1
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV&EXHAUST EMISSION CONTROL-EURO6-RDE
89481BSENSOR, DIFFERENTIAL PRESSURE
894A0SENSOR ASSY, PARTICULATE MATTER
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
8946A60240BRACKET, EXHAUST SENSOR CLAMP
main8946A-60240
8946A60260BRACKET, EXHAUST SENSOR CLAMP
main8946A-60260
8946A60280BRACKET, EXHAUST SENSOR CLAMP
main8946A-60280
9043012221
main90430-12221
9167180616
main91671-80616
9167380820
main91673-80820
91674A0820
main91674-A0820
9415180600
main94151-80600

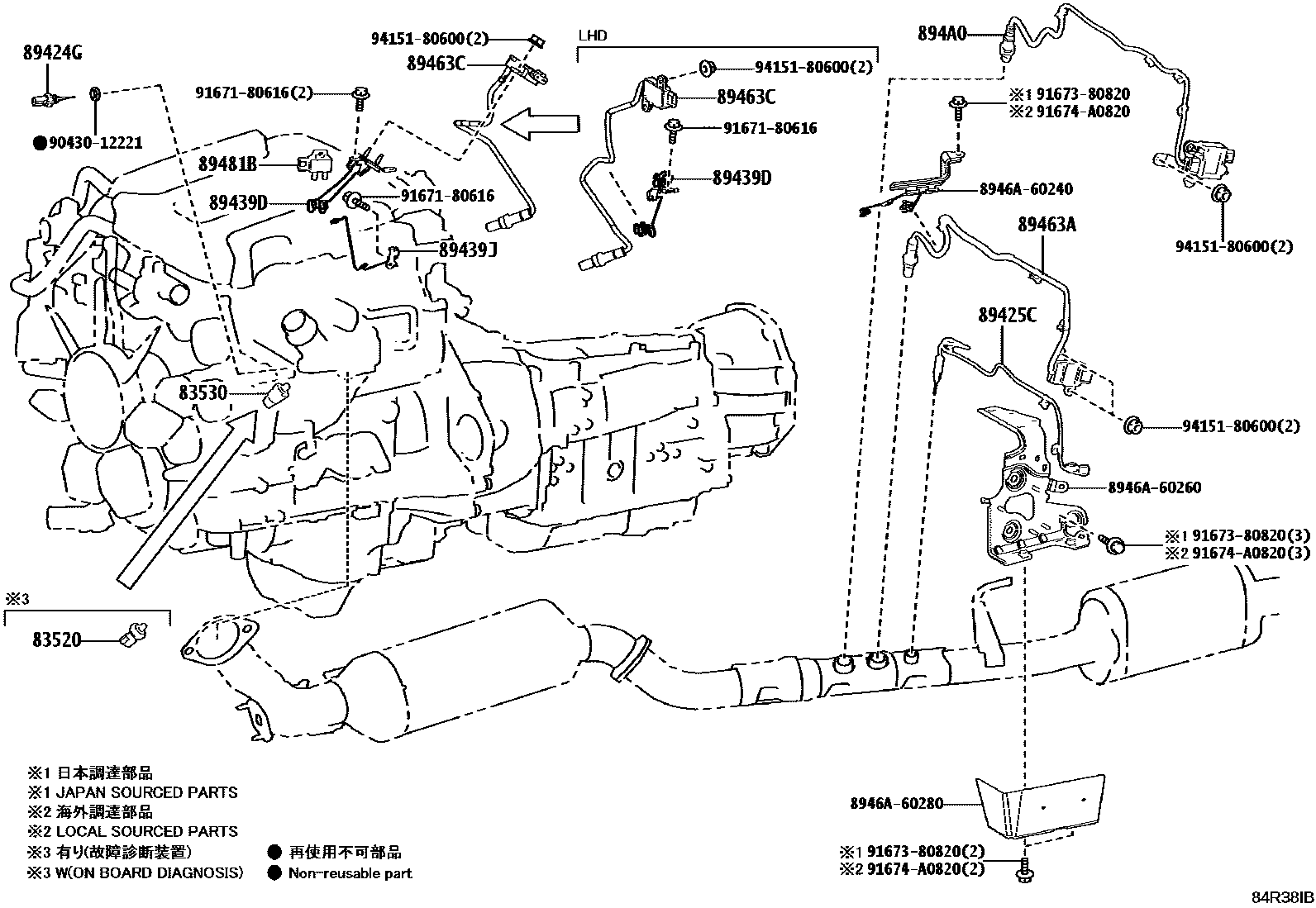

19 parts on this diagram · 22 diagrams in section
