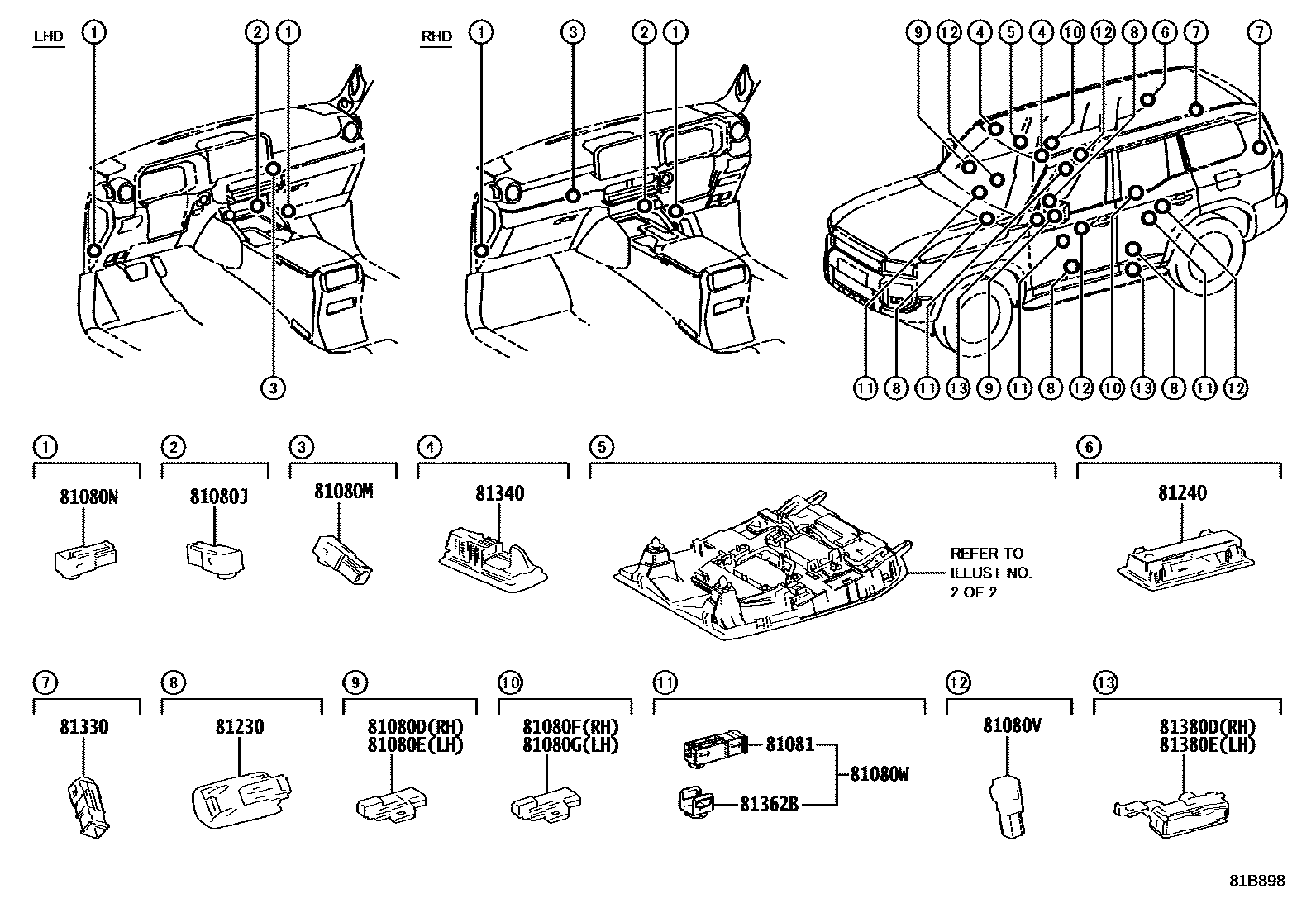

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
main81090-F4060supersedes 81090-F4060iGDJ250..LHD..L..EUR;GDJ25#,TJA250..L..(ARL,GCC,GEN,RUS,SA)202404
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
HIGH GRADE PACKAGE FOR AR&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
HIGH GRADE PACKAGE FOR AR
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81230LAMP ASSY, COURTESY
81240LAMP ASSY, ROOM, NO.1
main81240-28090-A0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401
FROMAGE,TRIM1#,4#
main81240-28090-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R,U;TJA250..(L,R,U)..RUS;GDJ250..LHD..(L,U)..EUR;TJA250..(L,U)..(GCC,GEN);GDJ250..(L,U)..(GCC,GEN,RUS,SA)202401
BLACK,TRIM2#,41
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81362BLENS, INTERIOR ILLUMINATION LAMP
81380DLAMP ASSY, STEP
HIGH GRADE PACKAGE FOR LUX
81380EBULB (FOR STEP LAMP)
HIGH GRADE PACKAGE FOR LUX
17 parts on this diagram · 2 diagrams in section
