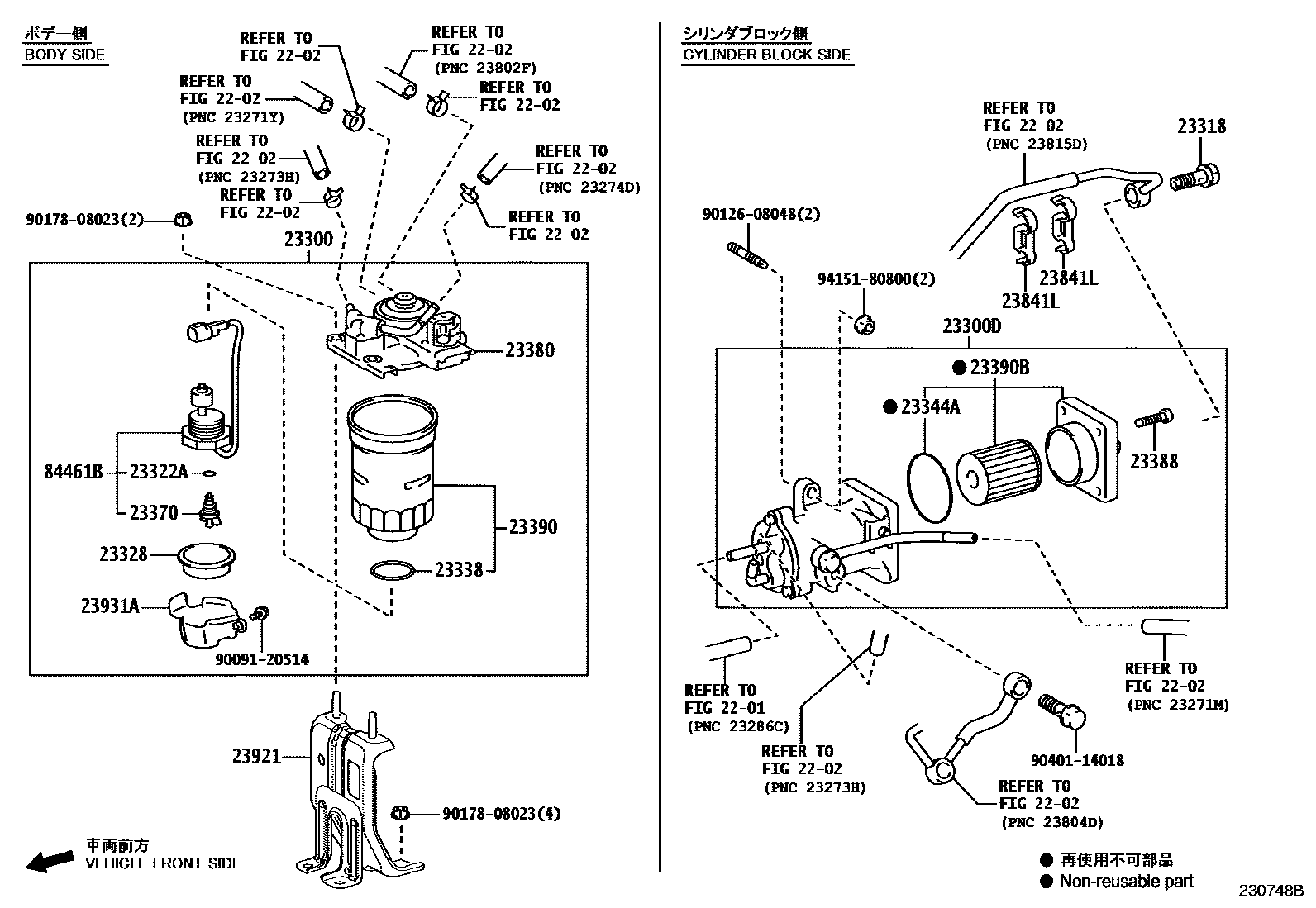

FUEL FILTER

2201

2202

23300FILTER ASSY, FUEL

main23300-11280i1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401

main23300-11320i1GDFTV..GDJ250..EUR,RUS202401

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-11231i1GDFTV..GDJ25#202401

23318BOLT, UNION

main90401-T0009i1GDFTV..GDJ25#202401

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401

main23385-30340i1GDFTV..GDJ250..EUR,RUS202401

23328GASKET(FOR FUEL FILTER)

main23385-30160i1GDFTV..GDJ25#202401

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401

main23385-11320i1GDFTV..GDJ250..EUR,RUS202401

23344AGASKET, FUEL FILTER ELEMENT

main23385-11230i1GDFTV..GDJ25#202401

23370COCK ASSY, FUEL FILTER DRAIN

main23370-30010i1GDFTV..GDJ25#202401

23380CAP ASSY, FUEL FILTER

main23380-11280i1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401

main23380-11320i1GDFTV..GDJ250..EUR,RUS202401

23388PLUG, FUEL FILTER DRAIN

main23388-11230i1GDFTV..GDJ25#202401

23390ELEMENT ASSY, FUEL FILTER

main23390-30341i1GDFTV..GDJ250..EUR,RUS202401

main23390-36760i1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401

23390BELEMENT ASSY, FUEL FILTER, NO.2

main23390-11231i1GDFTV..GDJ25#202401

23841LCLAMP, FUEL PIPE

main23841-11050i1GDFTV..GDJ25#202401

23921SUPPORT, FUEL FILTER

main23921-11050i1GDFTV..GDJ25#202401

23931ACOVER, FUEL FILTER

main23931-26031i1GDFTV..GDJ25#202401

84461BSWITCH, LEVEL WARNING

main84461-60102iGDJ25#..ARL,GCC,GEN,SA202401

main84461-60120iGDJ250..EUR,RUS202401

9009120514

main90091-20514

9012608048

main90126-08048

9017808023

main90178-08023

9040114018

main90401-14018

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
