INJECTION NOZZLE
11176SEAT, INJECTION NOZZLE
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
23257BRING, FUEL INJECTOR BACK-UP, NO.2
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
23258BRING, FUEL INJECTOR BACK-UP, NO.3
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
23282HHOSE, FUEL, NO.4
23284CHOSE, FUEL, NO.5
23286CHOSE, FUEL, NO.6
23295CHOLDER, INJECTOR
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
23600CGASKET(FOR HOLDER & NOZZLE SET)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
23670ARING, O(FOR INJECTOR ASSY)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
23679SCREW, INJECTOR FOLLOW
(J)
(L)
23695CLAMP, NOZZLE HOLDER, NO.1
23695BCLAMP, NOZZLE HOLDER, NO.2
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
23699ASEAT, NOZZLE HOLDER CLAMP
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
23760PIPE ASSY, NOZZLE LEAKAGE
23760AGASKET
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23811HPIPE, FUEL, NO.1
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO6-RDE
9020910021
main90209-10021
9030106020
main90301-06020
9052305007
main90523-05007
9090430012
main90904-30012
9155180635
main91551-80635
91551F0870
main91551-F0870
9167180612
main91671-80612
9167180616
main91671-80616
9613341001
main96133-41001
9613341101
main96133-41101
9634111200
main96341-11200

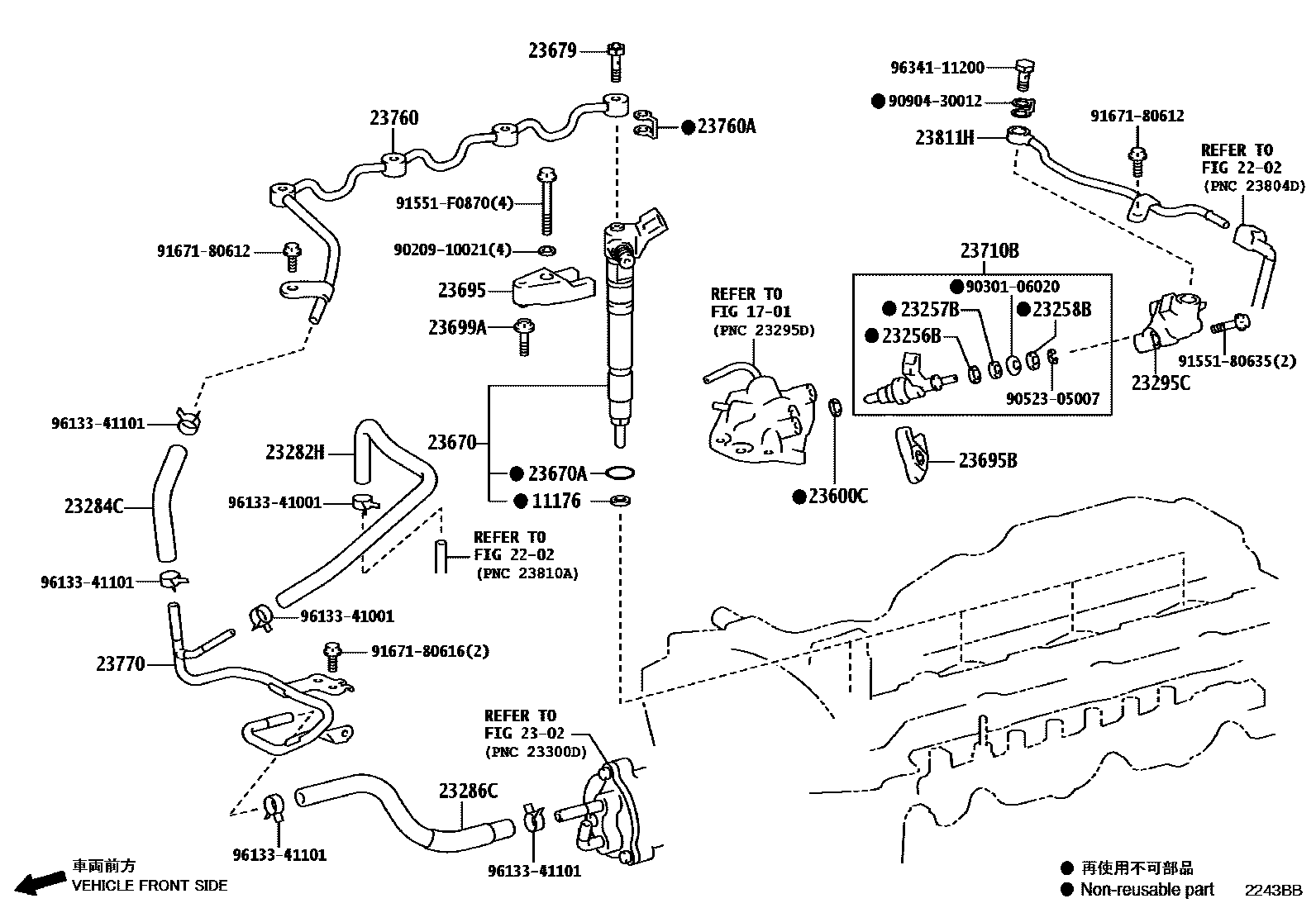

34 parts on this diagram · 1 diagram in section
