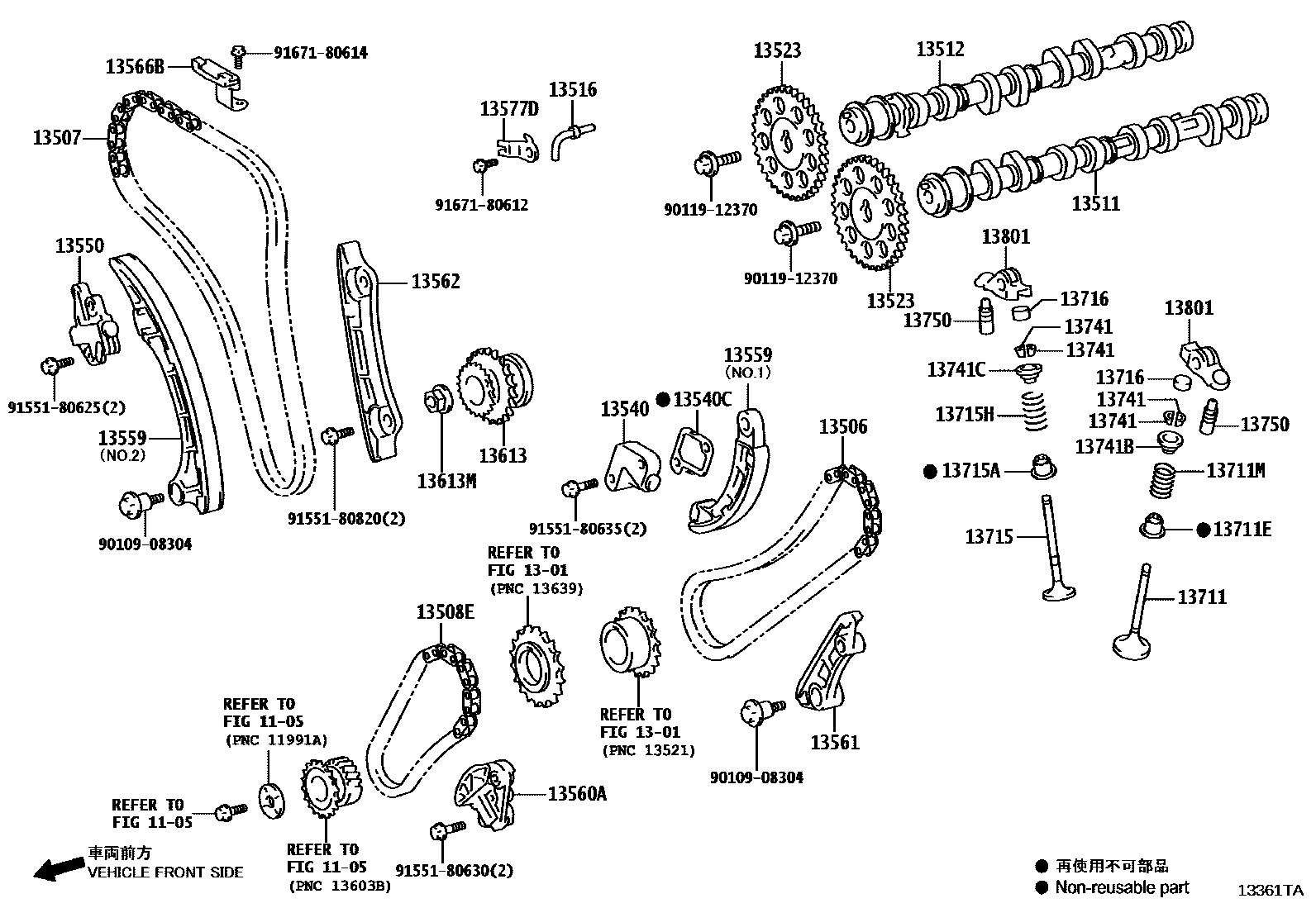

CAMSHAFT & VALVE
1105
1301
13506CHAIN SUB-ASSY
13508ECHAIN SUB-ASSY, NO.3
13516JET, OIL
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
NO.2
NO.1
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13577DPLATE, LOCK
13613GEAR, INJECTION PUMP DRIVE
THA SOURCED PARTS
JAPAN SOURCED PARTS
13613MNUT(FOR INJECTION PUMP DRIVE GEAR)
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13741RETAINER, VALVE SPRING
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010908304
main90109-08304
9011912370
main90119-12370
9155180625
main91551-80625
9155180630
main91551-80630
9155180635
main91551-80635
9155180820
main91551-80820
9167180612
main91671-80612
9167180614
main91671-80614
40 parts on this diagram · 3 diagrams in section
