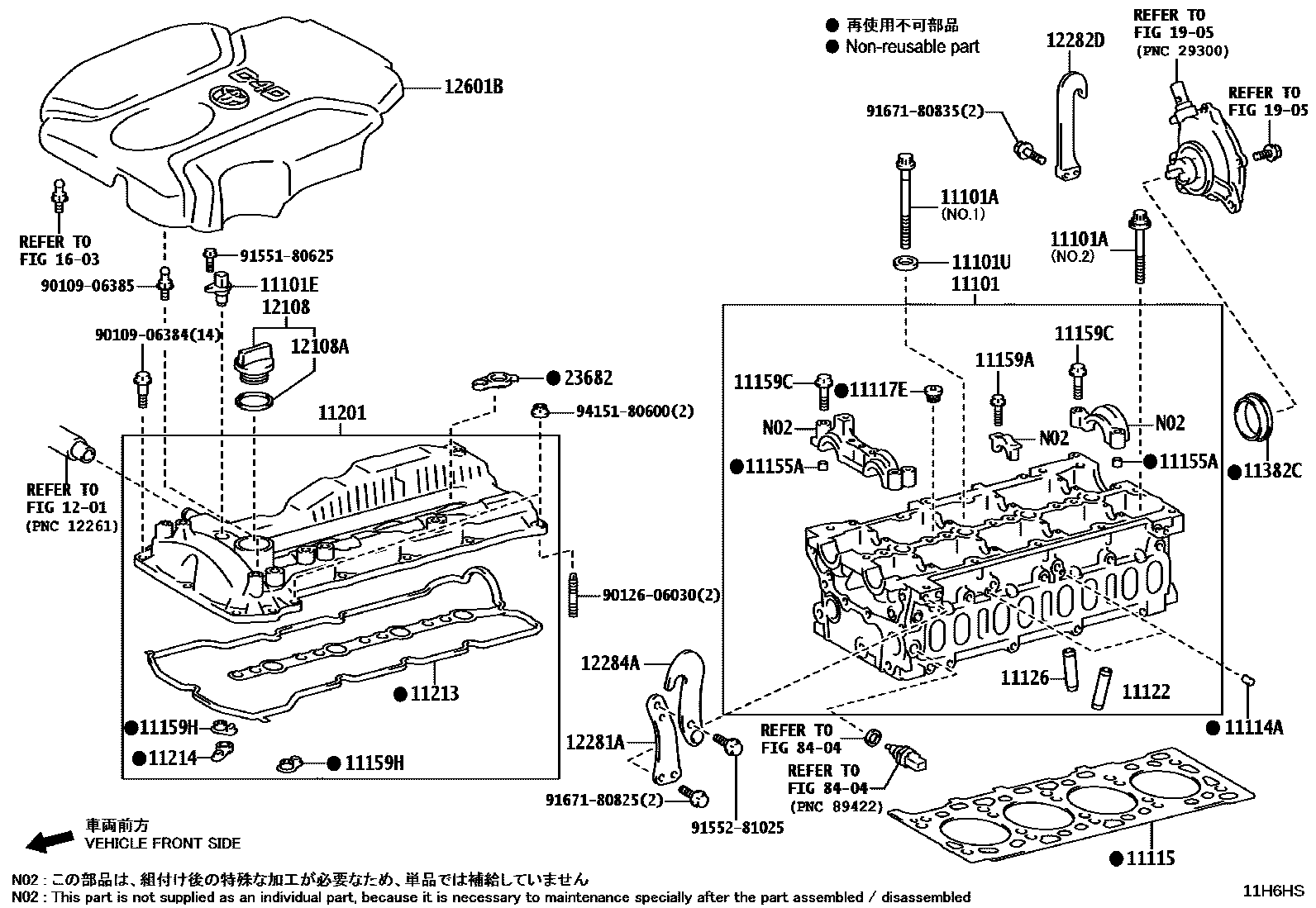

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
NO.2
NO.1
NO.1
NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
11114APIN, STRAIGHT
L=8,OD=5
11115GASKET, CYLINDER HEAD
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD
O/S 0.05
STD
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11382CRETAINER, CAMSHAFT OIL SEAL
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12282DHANGER, ENGINE, NO.2
12284AHANGER, ENGINE, NO.1 UPPER
12601BCOVER SUB-ASSY, ENGINE, NO.1
main12601-35020i1GDFTV..GDJ250..8FC..(L,R)..(GCC,GEN);1GDFTV..GDJ250..LHD..8FC..(A,U)..(GCC,GEN)202401
EXHAUST EMISSION CONTROL-EURO6-RDE
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV&EXHAUST EMISSION CONTROL-EURO6-RDE
1603
1905
23682GASKET, NOZZLE HOLDER
8404
9010906384
main90109-06384
9010906385
main90109-06385
9012606030
main90126-06030
9155180625
main91551-80625
9155281025
main91552-81025
9167180825
main91671-80825
9167180835
main91671-80835
9415180600
main94151-80600
36 parts on this diagram · 4 diagrams in section
