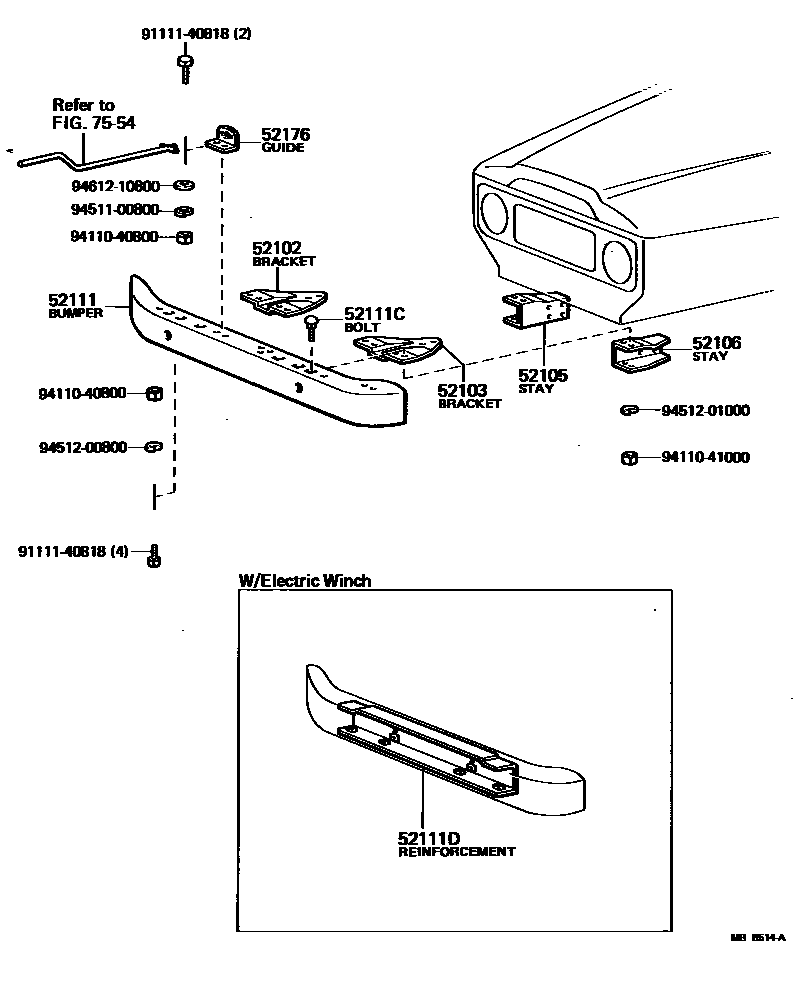

FRONT BUMPER & BUMPER STAY

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52116-60010iBJ4#,FJ4#,HJ47198008-198604

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52116-60010iBJ4#,FJ4#,HJ47198008-198604

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-60011iBJ4#,FJ4#,HJ47198008-198604

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-60011iBJ4#,FJ4#,HJ47198008-198604

52111BUMPER ASSY, FRONT

main52111-60030iBJ4#,FJ4#,HJ47198008-198604

main52111-60060iBJ4#,FJ4#,HJ47..GEN198008-198604

CHROME PLATED

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-10004iBJ4#,FJ4#,HJ47198008-198211

sub90112-10016

main90112-10016iBJ4#,FJ4#,HJ47..GEN198008-198604

CHROME PLATED

52111DREINFORCEMENT, FRONT BUMPER

main52131-60010iBJ4#,FJ4#,HJ47198008-198604

W/ELECTRIC WINCH

52176GUIDE, STARTING HANDLE

main52171-69020iFJ4#..ARL,GEN198008-198604

7554

9111140818

main91111-40818

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451200800

main94512-00800

9451201000

main94512-01000

9461210800

main94612-10800

16 parts on this diagram · 1 diagram in section
