FRAME

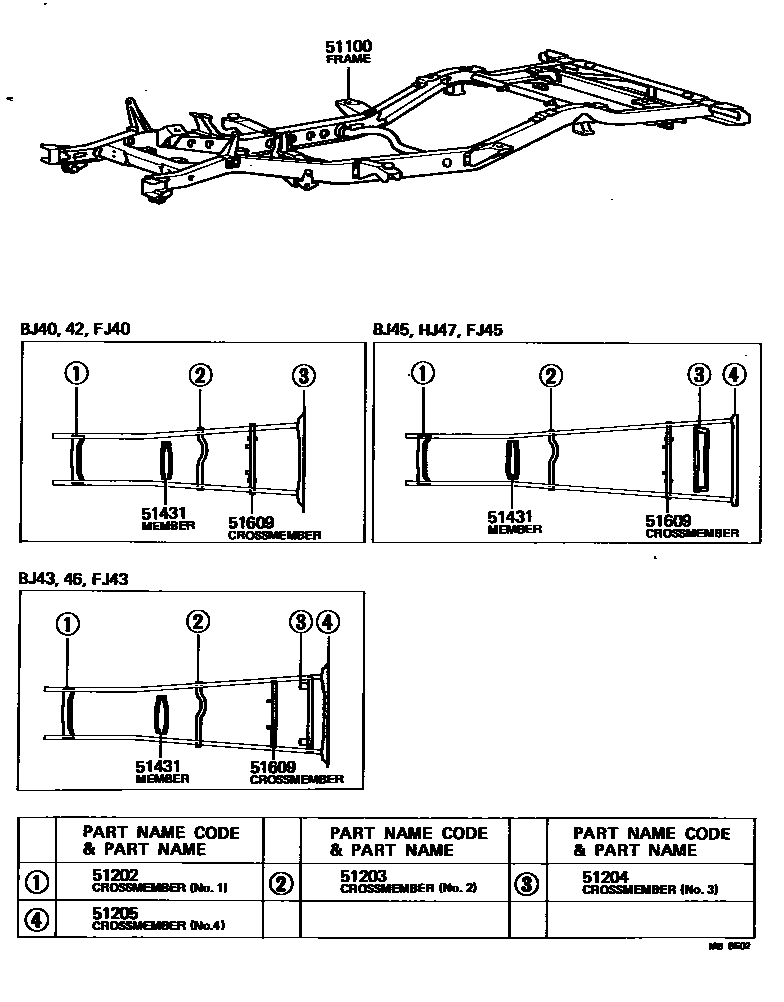

Parts diagram
51100FRAME ASSY
main51001-60079i198008-198210
main51001-60099i198008-198210
main51001-60236i198008-198203
sub51001-60237
main51001-60237i198203-198410
main51001-60246i198008-198203
sub51001-60247
main51001-60247i198203-198410
main51001-60264i198008-198210
main51001-60265i198210-198410
main51001-60274i198008-198210
main51001-60275i198210-198410
main51001-60283i198008-198210
main51001-60284i198210-198410
main51001-60293i198008-198210
main51001-60294i198210-198410
main51001-60305i198008-198410
main51001-60345i198008-198510
main51001-60521i198008-198203
POSITION OF LICENSE PLATE LH
sub51001-60522
main51001-60522i198203-198510
POSITION OF LICENSE PLATE LH
main51001-60531i198008-198203
POSITION OF LICENSE PLATE LH
sub51001-60532
main51001-60532i198203-198410
POSITION OF LICENSE PLATE LH
main51001-60541i198008-198410
main51001-60551i198008-198410
main51001-60690i198008-198203
sub51001-60691
main51001-60691i198203-198410
main51001-60700i198008-198203
sub51001-60701
main51001-60701i198203-198604
main51001-60710i198008-198010
main51001-60711i198010-198203
sub51001-60712
main51001-60712i198203-198410
main51001-60720i198008-198010
main51001-60721i198010-198203
sub51001-60722
main51001-60722i198203-198410
main51001-60731i198008-198203
POSITION OF LICENSE PLATE LH
sub51001-60732
main51001-60732i198203-198410
POSITION OF LICENSE PLATE LH
main51001-60740i198008-198010
main51001-60741i198010-198410
main51001-60750i198008-198010
main51001-60751i198010-198410
main51001-60760i198008-198210
main51001-60761i198210-198410
main51001-60770i198008-198210
main51001-60771i198210-198510
main51001-60840i198210-198410
main51001-60850i198210-198410
main51001-60860i198210-198506
SOUTH AFRICA SPEC
main51001-60870i198210-198506
SOUTH AFRICA SPEC
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
main51201-60014i198008-198310
sub51201-60015
main51201-60015i198310-198604
main51201-60024i198008-198310
sub51201-60025
main51201-60025i198310-198506
main51201-60061i198008-198310
sub51201-60062
main51201-60062i198310-198410
main51201-60071i198008-198310
sub51201-60072
main51201-60072i198310-198410
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
main51202-60042i198008-198210
main51202-60042i198210-198510
VENEZUELA SPEC,INDONESIA SPEC
main51202-60043i198210-198410
main51202-60080i198008-198604
main51202-60090i198008-198010
main51202-60091i198010-198410
main51202-60100i198210-198506
SOUTH AFRICA SPEC
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51203-60090i198008-198410
main51204-60010i198008-198112
sub51204-60011
main51204-60011i198112-198604
main51209-60031i198008-198510
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
main51209-60031i198008-198410
main51209-60050i198008-198510
main51209-60060i198106-198604
main51291-60021i198008-198106
51431MEMBER, ENGINE REAR MOUNTING
main51403-60010i198008-198210
main51403-60011i198210-198604
51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
main51203-60015i198008-198410
main51203-60043i198008-198410
main51203-60053i198008-198604
main51203-60064i198008-198510
main51203-60081i198008-198410
main51203-60110i198210-198506
SOUTH AFRICA SPEC

7 parts on this diagram · 2 diagrams in section
