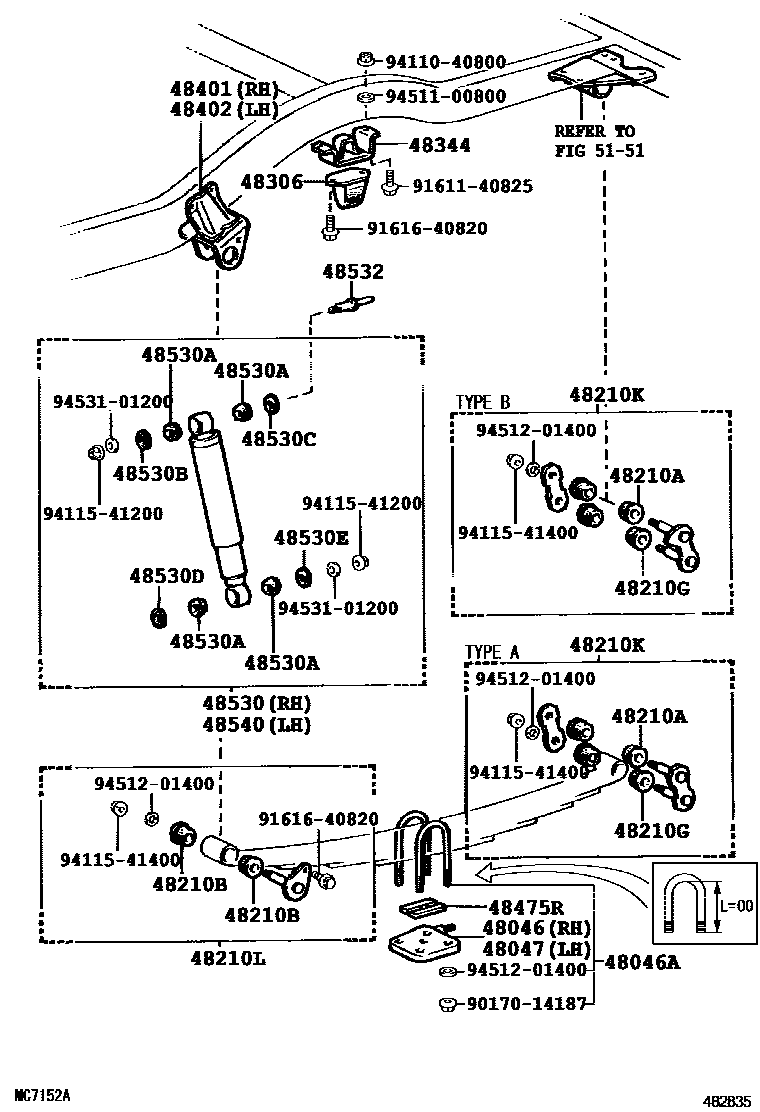

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-60023iBJ45,FJ45,HJ47198008-198604

main48046-60032iFJ45,HJ47..RHD..GEN..IV198210-198506

W/REAR WHEEL PARKING BRAKE

main48046-60032iBJ40,42,43,46,FJ40,43198008-198510

48046ABOLT, U(FOR REAR SPRING)

main90118-14107iBJ40,42,FJ40198008-198510

L=175,D=14,W/*DIP

sub90117-14177

main90118-14108iBJ46198210-198410

L=185,D=14

main90118-14109iBJ46198210-198410

L=195,D=14,W/*DIP

sub90117-14179

main90118-14110iBJ43,45,46,FJ43,45,HJ47198008-198401

L=205,D=14

sub90117-14180

main90118-14111iBJ43,45,46,FJ43,45,HJ47198008-198401

L=215,L=215,D=14,W/*DIP

sub90117-14181

main90118-14111iBJ45,FJ45,HJ47..GEN198008-198401

L=215,L=215,D=14,HEAVY DUTY

sub90117-14181

main90118-14158iBJ40,42,FJ40198008-198510

L=170,D=14

sub90117-14001

main90118-14161iBJ45,FJ45,HJ47..GEN198401-198604

L=210,D=14,HEAVY DUTY

sub90117-14002

main90118-14161iBJ45,FJ45,HJ47..GEN198401-198604

L=210,D=14,W/*DIP

sub90117-14002

main90118-14162iBJ45,FJ45,HJ47..GEN198401-198604

L=220,D=14,HEAVY DUTY,W/*DIP

sub90117-14022

main90118-14193iBJ45,FJ45,HJ47..GEN198008-198401

L=225,L=225,D=14,HEAVY DUTY,W/*DIP

sub90117-14022

main90118-14210iBJ43,45,FJ43,45,HJ47198401-198604

L=200,L=200,D=14

sub90117-14032

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-60023iBJ45,FJ45,HJ47198008-198604

main48047-60032iFJ45,HJ47..RHD..GEN..IV198210-198506

W/REAR WHEEL PARKING BRAKE

main48047-60032iBJ40,42,43,46,FJ40,43198008-198510

48210SPRING ASSY, REAR RH

main48210-60101iBJ46198210-198410

main48210-60121iBJ40,42..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198008-198401

sub48210-60310

main48210-60141iBJ45,FJ45,HJ47..LHD198008-198401

main48210-60142iBJ45,FJ45,HJ47..LHD198401-198604

main48210-60201iFJ40..TPC..5F;BJ40,42,FJ40..RHD198008-198410

main48210-60211iBJ45,FJ45,HJ47..RHD198008-198401

main48210-60212iBJ45,FJ45,HJ47..RHD198401-198506

main48210-60290iBJ43,FJ43..RHD198008-198401

main48210-60291iBJ43,FJ43..RHD198401-198410

main48210-60300iBJ45,FJ45,HJ47..GEN198008-198401

HEAVY DUTY

main48210-60301iBJ45,FJ45,HJ47..GEN198401-198604

HEAVY DUTY

main48210-60310iBJ40,42..LHD;FJ40..LHD..GEN;FJ40..VKC..EUR198401-198510

main48210-60320iBJ43,FJ43..LHD198008-198401

main48210-60321iBJ43,FJ43..LHD198401-198410

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90389-18002iBJ4#,FJ4#,HJ47198008-198604

48210BBUSH(FOR REAR SPRING PIN)

main90389-18002iBJ4#,FJ4#,HJ47198008-198604

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90389-18002iBJ4#,FJ4#,HJ47198008-198604

48210KSHACKLE KIT, REAR SPRING

main04481-60020iBJ40,42,FJ40..ARL,GEN198008-198510

TYPE A

main04483-60011iBJ40,42,FJ40198008-198604

RH,TYPE B

main04483-60021iBJ40,42,FJ40198008-198510

LH,TYPE B

main04483-60031iBJ45,FJ45,HJ47198008-198604

RH

main04483-60041iBJ45,FJ45,HJ47198008-198604

LH

main04483-60050iBJ43,46,FJ43198008-198410

sub04483-60101

48210LPIN KIT, REAR SPRING

main04482-60040iBJ4#,FJ4#,HJ47198008-198604

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60010iBJ43,45,46,FJ43,45,HJ47198008-198604

main48306-60040iBJ40,42,FJ40198008-198510

48344STOPPER, BUMPER, REAR

main48035-60010iBJ40,42,FJ40198008-198510

main48344-60030iBJ43,46,FJ43198008-198410

RH

main48344-60040iBJ45,FJ45,HJ47198008-198604

RH

main48354-60030iBJ43,46,FJ43198008-198410

LH

main48354-60040iBJ45,FJ45,HJ47198008-198604

LH

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-60021iBJ4#,FJ4#,HJ47198008-198604

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48415-60021iBJ4#,FJ4#,HJ47198008-198604

48475RPLATE, DISTANCE(FOR REAR)

main48475-60020iBJ4#,FJ4#,HJ47198008-198604

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-69047iBJ40,42,FJ40198008-198510

MARK 48531-60061

sub48531-69049

main48531-69057iBJ43,45,46,FJ43,45,HJ47198008-198604

MARK 48531-60071

sub48531-69059

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iBJ4#,FJ4#,HJ47198008-198604

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBJ4#,FJ4#,HJ47198008-198604

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBJ4#,FJ4#,HJ47198008-198604

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBJ4#,FJ4#,HJ47198008-198604

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBJ4#,FJ4#,HJ47198008-198604

48532PIN, REAR SHOCK ABSORBER PIVOT

main48532-60010iBJ4#,FJ4#,HJ47198008-198604

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-69047iBJ40,42,FJ40198008-198510

MARK 48531-60061

sub48531-69049

main48531-69057iBJ43,45,46,FJ43,45,HJ47198008-198604

MARK 48531-60071

sub48531-69059

5151

9017014187

main90170-14187

9161140825

main91611-40825

9161640820

main91616-40820

9411040800

main94110-40800

9411541200

main94115-41200

9411541400

main94115-41400

9451100800

main94511-00800

9451201400

main94512-01400

9453101200

main94531-01200

32 parts on this diagram · 6 diagrams in section
