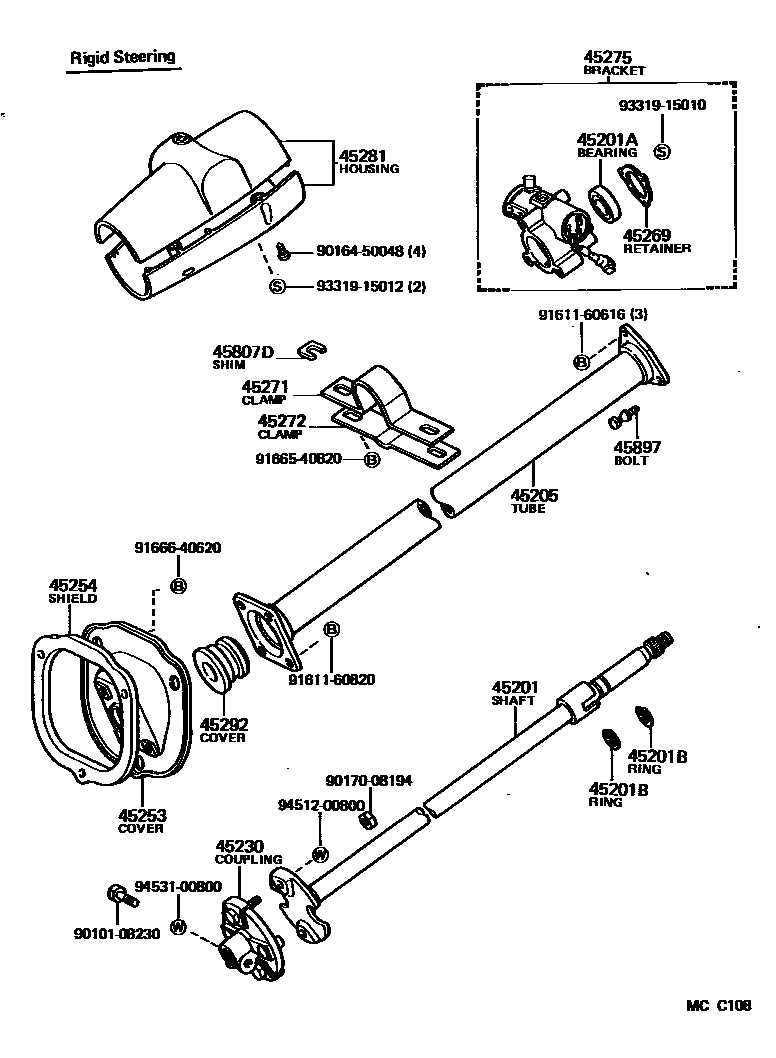

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0011 1 0013 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-60034iBJ4#,FJ4#,HJ47198008-198604

RIGID STEERING

main45201-60071iFJ4#198008-198604

RIGID STRG,W/POWER STEERING

main45210-60050iFJ45..TPC;FJ45..LHD..(PIC,V)..GEN..CBU198008-198604

COLLAPSIBLE STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBJ4#,FJ4#,HJ47198008-198604

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBJ4#,FJ4#,HJ47198008-198604

T=1.20,FLAT TYPE

main90520-17269iBJ4#,FJ4#,HJ47198008-198604

T=1.20,CURVED TYPE

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-60041iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

RIGID STEERING

main45205-60090iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

RIGID STEERING

main45870-60040iFJ45..TPC;FJ45..LHD..(PIC,V)..GEN..CBU198008-198604

COLLAPSIBLE STEERING

45230COUPLING ASSY, FLEXIBLE

main45230-36010iBJ4#,FJ4#,HJ47198008-198604

45253COVER, STEERING COLUMN HOLE

main45025-60030iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

RIGID STEERING

main45025-60040iFJ45..TPC;FJ45..LHD..(PIC,V)..GEN..CBU198008-198604

COLLAPSIBLE STEERING

main45253-60050iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

RIGID STEERING

45254SHIELD, STEERING COLUMN HOLE

main45254-60020iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

main45254-60040iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBJ4#,FJ4#,HJ47198008-198604

45271CLAMP, STEERING COLUMN, UPPER

main55661-90800iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

RIGID STEERING

45272CLAMP, STEERING COLUMN, LOWER

main55662-90800iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

RIGID STEERING

45275BRACKET, STEERING COLUMN, UPPER

main45280-60032iBJ4#,HJ47..GEN198008-198209

W/O STEERING LOCK

sub45280-60033

main45280-60033iBJ4#,HJ47..GEN198209-198506

W/O STEERING LOCK

main45280-60042iBJ4#,HJ47198008-198210

W/STEERING LOCK

sub45280-60043

main45280-60043iBJ40,42,43,45,HJ47..GEN198210-198506

W/STEERING LOCK

main45280-60052iFJ43,45;FJ40..TPC,TPS,VLS;FJ40..VKC..(3F,4F)..(EUR,GEN)198008-198209

W/O STEERING LOCK

sub45280-60053

main45280-60053iFJ4#..GEN198209-198604

W/O STEERING LOCK

main45280-60062iFJ4#..3F,4F198008-198209

W/STEERING LOCK

sub45280-60063

main45280-60063iBJ42,45,46,HJ47..ARL,EUR198209-198604

W/STEERING LOCK

45281HOUSING, STEERING COLUMN

main45286-60906iBJ40,42,43,45,FJ4#,HJ47..RHD..GEN198008-198506

W/O STEERING LOCK

sub45286-60908

main45286-60907iBJ4#,FJ4#,HJ47..LHD198008-198604

W/O STEERING LOCK

sub45286-60909

main45286-60908iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

W/STEERING LOCK

main45286-60909iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

W/STEERING LOCK

45292SEAL, MAIN SHAFT LOWER DUST

main45292-60011iBJ4#,FJ4#,HJ47198008-198604

RIGID STEERING

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-60050iBJ42,46,FJ40..EUR198008-198604

COLLAPSIBLE STEERING

45807DSHIM, STEERING COLUMN CLAMP

main55614-60010iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

45897BOLT, STEERING LOCK SET

main45897-12030iBJ4#,FJ4#,HJ47198210-198604

9010108230

main90101-08230

9016450048

main90164-50048

9017008194

main90170-08194

9161160616

main91611-60616

9161160820

main91611-60820

9166540820

main91665-40820

9166640620

main91666-40620

9331915010

main93319-15010

9331915012

main93319-15012

9451200800

main94512-00800

9453100800

main94531-00800

27 parts on this diagram · 8 diagrams in section
