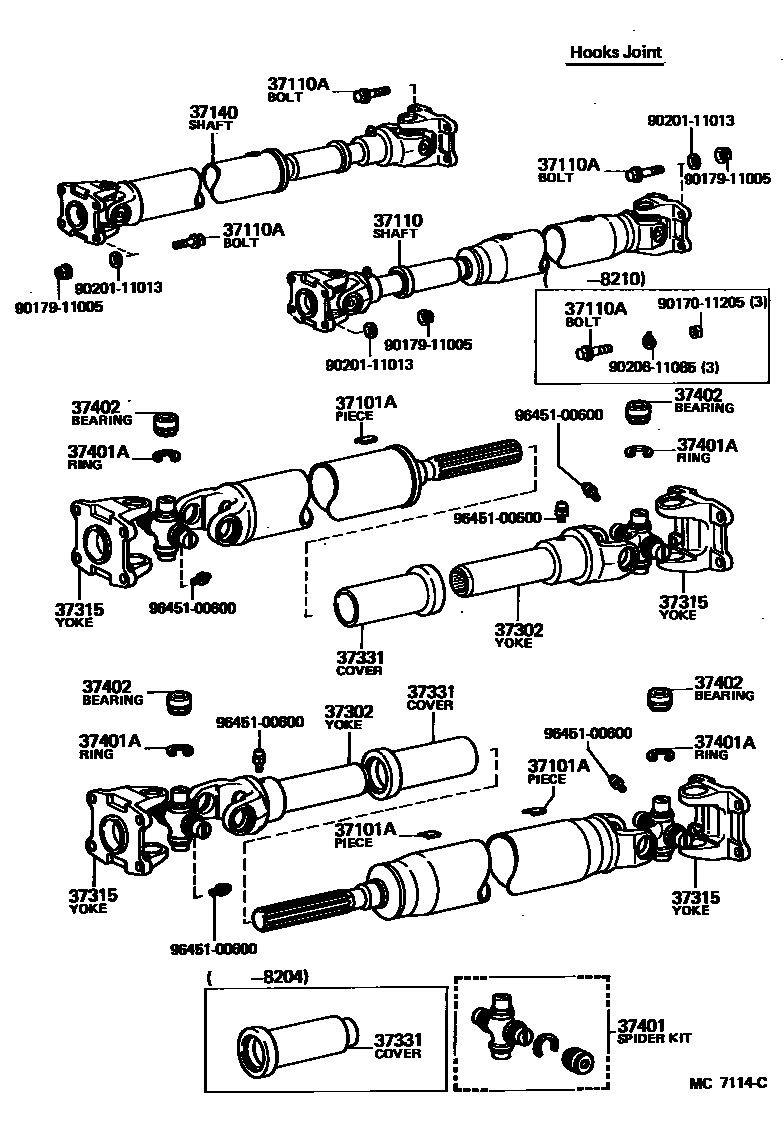

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,10G
20G,L=41.4,20G
30G,L=62.2,30G
2G,T=2.0,2G
4G,T=2.0,4G
6G,L=12.4,6G
8G,L=16.6,8G
12G,L=24.9,12G
14G,L=29.0,14G
16G,L=33.2,16G
18G,L=37.3,18G
22G,L=45.6,22G
24G,L=49.7,24G
26G,L=53.9,26G
28G,L=58.1,28G
4G,T=1.6,4G,RR SLEEVE YOKE
4G,T=1.6,4G,FR SLEEVE YOKE,*CVJ
8G,T=1.6,8G,FR SLEEVE YOKE,*CVJ
8G,T=1.6,8G,RR SLEEVE YOKE
12G,T=4.5,12G,FR SLEEVE YOKE,*CVJ
12G,T=4.5,12G,RR SLEEVE YOKE
16G,T=4.5,16G,RR SLEEVE YOKE
16G,T=4.5,16G,FR SLEEVE YOKE,*CVJ
20G,T=4.5,20G,RR SLEEVE YOKE
20G,T=4.5,20G,FR SLEEVE YOKE,*CVJ
24G,T=4.5,L=25.1,24G,FR SLEEVE YOKE,*CVJ
24G,T=4.5,L=25.1,24G,RR SLEEVE YOKE
28G,T=6,L=22.7,28G,FR SLEEVE YOKE,*CVJ
28G,T=6,L=22.7,28G,RR SLEEVE YOKE
32G,T=6,L=24.3,32G,RR SLEEVE YOKE
32G,T=6,L=24.3,32G,FR SLEEVE YOKE,*CVJ
37110SHAFT ASSY, PROPELLER
37140SHAFT ASSY, PROPELLER, FRONT
HOOKS JOINT
HOOKS JOINT
CONSTANT VELOCITY JOINT
CONSTANT VELOCITY JOINT
CONSTANT VELOCITY JOINT
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
FR,HOOKS JOINT
FR,CONSTANT VELOCITY JOINT
RR,HOOKS JOINT
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=1.53,T=1.53
T=2.00,NO MARK,T=2.00
T=2.03,BROWN,T=2.03
T=2.06,BLUE,T=2.06
T=2.09,NO MARK,T=2.09
T=1.50,T=1.50
T=1.56,T=1.56
T=1.59,T=1.59
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017011205
main90170-11205
9017911005
main90179-11005
9020111013
main90201-11013
9020611085
main90206-11085
9645100600
main96451-00600
15 parts on this diagram · 3 diagrams in section
