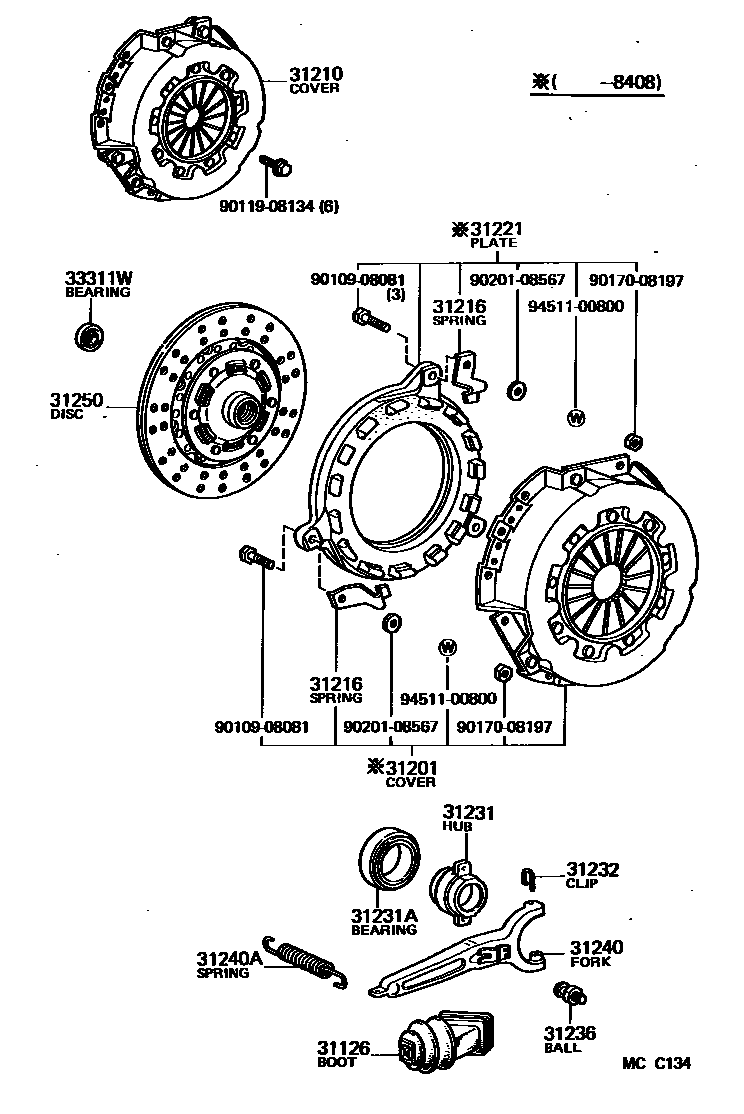

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36030iBJ4#198008-198410

main31126-60021iFJ4#,HJ47198008-198604

31201COVER SUB-ASSY, CLUTCH

main31201-39097iBJ40,43198210-198408

main31201-39115iBJ42..ARL198210-198410

sub31210-36100

main31201-69026iHJ47;FJ4#..(3F,4F)..(EUR,GEN)198008-198101

main31201-69027iHJ47;FJ4#..EUR,GEN198101-198408

main31201-69047iFJ40,45..ARL198008-198101

main31201-69048iFJ40,45..ARL198101-198410

31210COVER ASSY, CLUTCH

main31210-36072iBJ40,43198210-198410

sub31210-36073

main31210-36090iBJ42..ARL198210-198410

sub31210-36100

main31210-60041iHJ47;FJ4#..(3F,4F)..(EUR,GEN)198008-198101

main31210-60042iHJ47;FJ4#..EUR,GEN198101-198408

main31210-60062iFJ40,45..ARL198008-198101

main31210-60063iFJ40,45..ARL198101-198408

main31210-60070iHJ47;FJ4#..EUR,GEN198408-198604

sub31210-60071

main31210-60080iFJ40,45..ARL198408-198410

sub31210-60100

31216SPRING, CLUTCH RETRACTING

main31216-36010×3iBJ4#198008-198410

main31216-60010×3iFJ4#,HJ47198008-198408

31221PLATE, CLUTCH PRESSURE

main31221-39085iBJ40,43198210-198408

sub31221-39145

main31221-39125iBJ42..ARL198210-198408

sub31221-36090

main31221-69025iHJ47;FJ4#..EUR,GEN198008-198408

sub31221-60020

main31221-69035iFJ40,45..ARL198008-198408

sub31221-60030

31231HUB, CLUTCH RELEASE BEARING

main31231-60040iFJ4#198008-198411

main31231-60050iHJ47198008-198506

main31231-60060iBJ4#198008-198410

main31231-60070iFJ4#198411-198604

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45001iBJ4#198008-198202

main90363-45002iBJ4#198202-198410

main90363-52001iFJ4#,HJ47198106-198604

main90363-52086iFJ4#,HJ47..3F,4F198008-198106

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-60020×2iBJ4#,FJ4#,HJ47198008-198604

31236BALL, RELEASE FORK

main31236-36010iBJ4#198008-198410

main31236-60020iFJ4#198008-198604

main31236-60030iHJ47198008-198506

31240FORK ASSY, CLUTCH RELEASE

main31204-60030iFJ4#198008-198604

main31204-60040iHJ47198008-198303

main31204-60041iHJ47198303-198506

main31204-60050iBJ4#198008-198410

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16297iBJ4#198008-198410

main90506-16475iFJ4#,HJ47198008-198604

31250DISC ASSY, CLUTCH

main31250-36113iBJ4#198110-198405

main31250-36150iHJ47198205-198405

sub31250-36210

main31250-60020iFJ4#198008-198411

main31250-60030iHJ47198008-198010

main31250-60031iHJ47198010-198205

main31250-60040iBJ4#198008-198110

main31250-60080iFJ4#198411-198604

sub31250-36340

main31250-60090iBJ4#198405-198410

sub31250-36280

main31250-60100iHJ47198405-198506

sub31250-60140

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBJ4#198008-198410

sub90363-12024

main90363-15004iFJ4#,HJ47198008-198604

9010908081

main90109-08081

9011908134

main90119-08134

9017008197

main90170-08197

9020108567

main90201-08567

9451100800

main94511-00800

18 parts on this diagram · 2 diagrams in section
