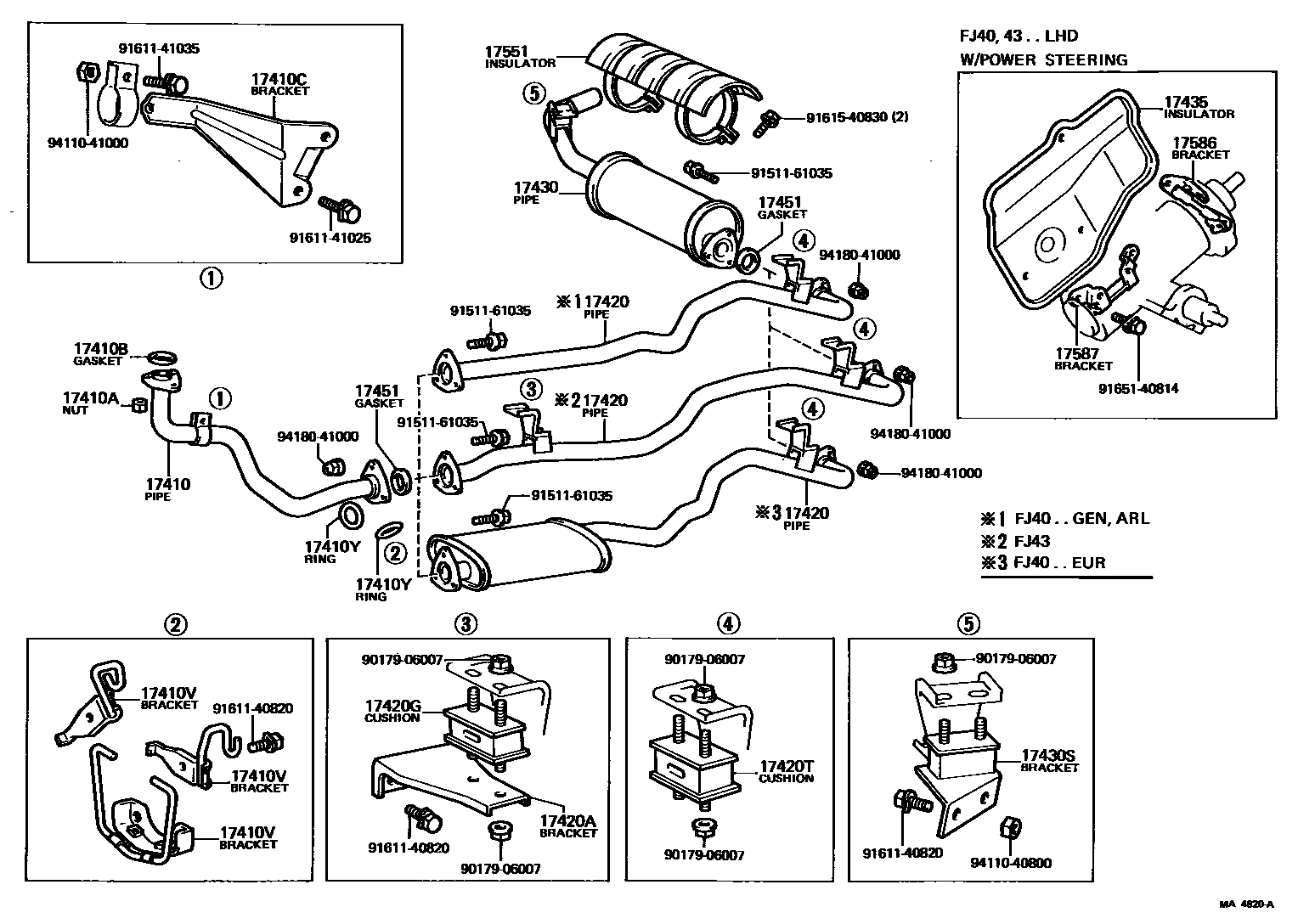

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-47090i2H..HJ47198008-198506

main17401-56100iB,3B..BJ4#..ARL,GEN198008-198410

main17401-56110i3B..BJ42,45,46..EUR198008-198410

main17401-61090i2F..FJ4#198008-198604

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010iB,3B,2F,2H..BJ4#,FJ4#,HJ47198008-198604

17410BGASKET, EXHAUST PIPE

main90917-06003i2F..FJ4#198008-198604

sub90917-06056

main90917-06005i2H..HJ47198008-198506

sub90917-06042

main90917-06012iB,3B..BJ4#198008-198410

sub90917-06045

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-47050i2H..HJ47198008-198506

main17571-56060iB,3B..BJ4#198008-198410

main17571-61100i2F..FJ4#198008-198604

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17506-61011i2F..FJ40..EUR198008-198410

UPR,LH

main17507-61010i2F..FJ40..EUR198008-198410

UPR,RH

main17580-61010i2F..FJ40..EUR198008-198410

LWR

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main90301-33001i2F..FJ40..EUR198008-198410

17420PIPE ASSY, EXHAUST, CENTER

main17420-56060iB,3B..BJ40,42..ARL,GEN198008-198410

sub17420-56080

main17420-56070i3B..BJ42..EUR198008-198107

main17420-56071i3B..BJ42..EUR198107-198210

main17420-56090iB,3B..BJ43,46198008-198410

main17420-56100i3B..BJ46..EUR198008-198107

main17420-56101i3B..BJ46..EUR198107-198210

main17420-56110i3B..BJ45198008-198307

sub17420-56111

main17420-56111i3B..BJ45198307-198410

main17420-61040i2F,2H..FJ45,HJ47198008-198604

sub17420-61050

main17420-61060i2F..FJ40..ARL,GEN198008-198604

sub17420-61070

main17420-61070i2F..FJ40..ARL198401-198410

VICTORIA SPEC

main17420-61070i2F..FJ40..ARL198008-198309

*NSW

main17420-61081i2F..FJ43198008-198410

main17420-61090i2F..FJ40..EUR198008-198410

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17566-61010i2F..FJ43198008-198410

17420GCUSHION, EXHAUST PIPE CENTER, CENTER

main17567-61030i3B..BJ42,46..EUR198008-198410

17420TCUSHION, EXHAUST PIPE CENTER, REAR

main17567-61030iB,3B,2F,2H..BJ4#,FJ4#,HJ47198008-198604

17430PIPE ASSY, EXHAUST, TAIL

main17430-56290iB,3B..BJ40,42,43,46198008-198410

sub17430-56310

main17430-56320i3B..BJ45198008-198410

main17430-61030i2F..FJ40,43..ARL,GEN198008-198604

sub17430-61040

main17430-61040i2F..FJ40..ARL198008-198309

*NSW

sub17430-61120

main17430-61040i2F..FJ40..ARL198401-198410

VICTORIA SPEC

sub17430-61120

main17430-61061i2F,2H..FJ45,HJ47198008-198604

main17430-61070i2F..FJ40..EUR198008-198410

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17509-56020iB,3B..BJ40,42,43,46198008-198410

main17509-61020i2F..FJ40,43198008-198604

main17574-61040i3B,2F,2H..BJ45,FJ45,HJ47198008-198604

17435INSULATOR, EXHAUST PIPE HEAT

main17435-61030i2F..FJ43,45..LHD;2F..FJ40..LHD..(3F,4F);2F..FJ40..LHD..VKC..5F198008-198604

W/POWER STEERING

17451GASKET, EXHAUST PIPE

main90917-06012iB,3B..BJ4#198008-198410

sub90917-06045

main90917-06024i2F,2H..FJ4#,HJ47198008-198604

sub90917-06073

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-61010i3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47198008-198604

17586BRACKET, HEAT INSULATOR, NO.1

main17586-61030iB,3B..BJ4#..LHD198008-198604

W/POWER STEERING

17587BRACKET, HEAT INSULATOR, NO.2

main17587-61020iB,3B..BJ4#..LHD198008-198604

W/POWER STEERING

9017906007

main90179-06007

9151161035

main91511-61035

9161140820

main91611-40820

9161141025

main91611-41025

9161141035

main91611-41035

9161540830

main91615-40830

9165140814

main91651-40814

9411040800

main94110-40800

9411041000

main94110-41000

9418041000

main94180-41000

27 parts on this diagram · 4 diagrams in section
