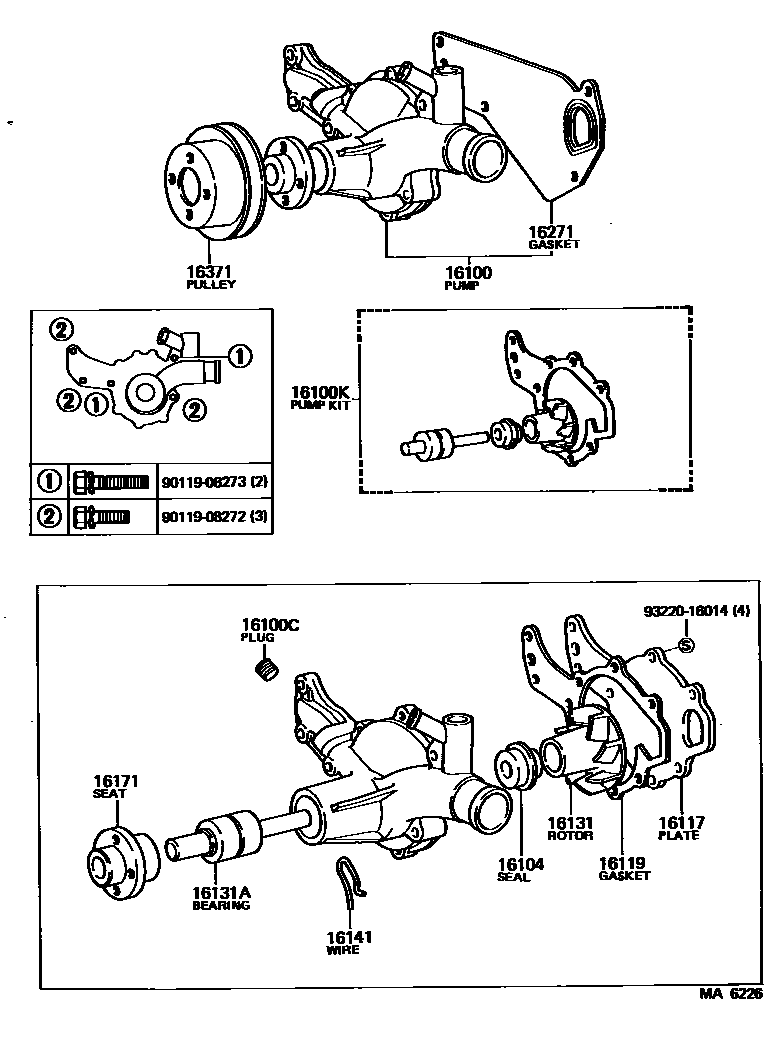

WATER PUMP

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

16100PUMP ASSY, ENGINE WATER

main16100-59075iB,3B..BJ4#..ARL,GEN198008-198410

sub16100-59076

main16100-59095i3B..BJ42,45,46..EUR198008-198110

sub16100-59096

main16100-59105i3B..BJ42..ARL198404-198410

TEMPATO FAN

main16100-61012i2F..FJ4#..ARL,GEN198008-198604

DIRECT

main16100-61041i2F..FJ4#..GEN198008-198604

W/OIL COOLER

main16100-61071i2F..FJ40..RHD..VKC..4F..WORB..GEN198008-198202

HONG KONG SPEC

main16100-61120i2F..FJ40,45..ARL198008-198410

TEMPERED,OD=450,7BLADES FAN

main16100-61140i2F..FJ4#..GEN198008-198604

CAST IRON BODY

main16100-61150i2F..FJ4#..GEN198008-198604

CAST IRON BODY,W/OIL COOLER

main16100-69035i2H..HJ47..ARL198008-198410

sub16100-69036

main16100-69055i2H..HJ47..GEN198008-198506

sub16100-69056

main16100-69065i2H..HJ47..GEN198008-198411

W/O THERMOSTAT

sub16100-69066

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010iB,3B..BJ4#198008-198410

16100KPUMP KIT, WATER

main04161-56040iB,3B..BJ4#..ARL,GEN198008-198410

sub04161-56041

main04161-56050i3B..BJ42,45,46..EUR198008-198110

sub04161-56051

main04161-56080i3B..BJ42..ARL198404-198410

TEMPATO FAN

sub04161-56081

main04161-68010i2H..HJ47..ARL198008-198410

main04161-68020i2H..HJ47..GEN198008-198506

16104SEAL SET, WATER PUMP

main16104-41111iB,3B..BJ4#198008-198110

sub16104-15020

main16104-52011i3B..BJ42..ARL198404-198410

TEMPATO FAN

sub16104-52012

16117PLATE, WATER PUMP

main16117-56040iB,3B..BJ4#198008-198410

main16117-61012i2F..FJ4#198008-198604

16119GASKET, WATER PUMP BODY

main16119-56040iB,3B..BJ4#198008-198410

sub16119-56041

16131ROTOR, WATER PUMP

main16131-56020i3B..BJ42,45,46..EUR198008-198110

main16131-56030iB,3B..BJ4#..ARL,GEN198008-198410

main16131-56040i3B..BJ42,45,46..EUR198110-198410

main16131-61011i2F..FJ4#..ARL,GEN198008-198604

DIRECT

main16131-61071i2F..FJ40,45..ARL,EUR198008-198410

TEMPERED

main16131-68010i2H..HJ47198008-198506

16131ABEARING, WATER PUMP

main90369-30028iB,3B..BJ4#..ARL,GEN198110-198410

main90369-30035i2F..FJ4#..ARL,GEN198008-198604

DIRECT

main90369-35007i2F..FJ40,45..ARL,EUR198008-198410

TEMPERED

sub90029-36839

main90369-35015i2H..HJ47..GEN198008-198506

sub90029-36840

main90369-35016i2H..HJ47..ARL198008-198410

sub90029-36842

main90369-38001i3B..BJ42..ARL198404-198410

TEMPATO FAN

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010iB,3B..BJ4#198008-198110

main16141-68010i2H..HJ47198008-198506

main16141-76010i3B..BJ42..ARL198404-198410

TEMPATO FAN

16171SEAT, WATER PUMP PULLEY

main16171-38022i3B..BJ42,45,46..EUR198008-198110

main16171-41170i2H..HJ47..ARL198008-198410

main16171-56010iB,3B..BJ4#..ARL,GEN198008-198410

main16171-61071i3B..BJ42,45,46..EUR198110-198410

16271GASKET, WATER PUMP

main16271-56020iB,3B..BJ4#198008-198410

sub16271-56030

main16271-60011i2F..FJ4#198008-198604

sub16271-60012

main16271-68010i2H..HJ47198008-198506

sub16271-68020

16371PULLEY, FAN

main16173-61070i2F..FJ40..RHD..VKC..4F..WORB..GEN198008-198202

HONG KONG SPEC

main16371-56020iB,3B..BJ4#..ARL,GEN198008-198211

main16371-56021iB,3B..BJ40,42,43,45..ARL,GEN198211-198410

main16371-56030i3B..BJ42,45,46..EUR198008-198110

main16371-56040i3B..BJ42,45,46..EUR198110-198410

main16371-60090i2F..FJ4#..ARL,GEN198008-198604

DIRECT,W/POWER STEERING

main16371-61010i2F..FJ4#..ARL,GEN198008-198604

DIRECT

main16371-68010i2H..HJ47..ARL198008-198410

main16371-68020i2H..HJ47..GEN198008-198506

main88452-60010i2H..HJ47..ARL198008-198410

W/COOLER

main88452-60020i2H..HJ47..RHD..GEN198008-198506

W/COOLER

9011908272

main90119-08272

9011908273

main90119-08273

9322016014

main93220-16014

15 parts on this diagram · 6 diagrams in section
