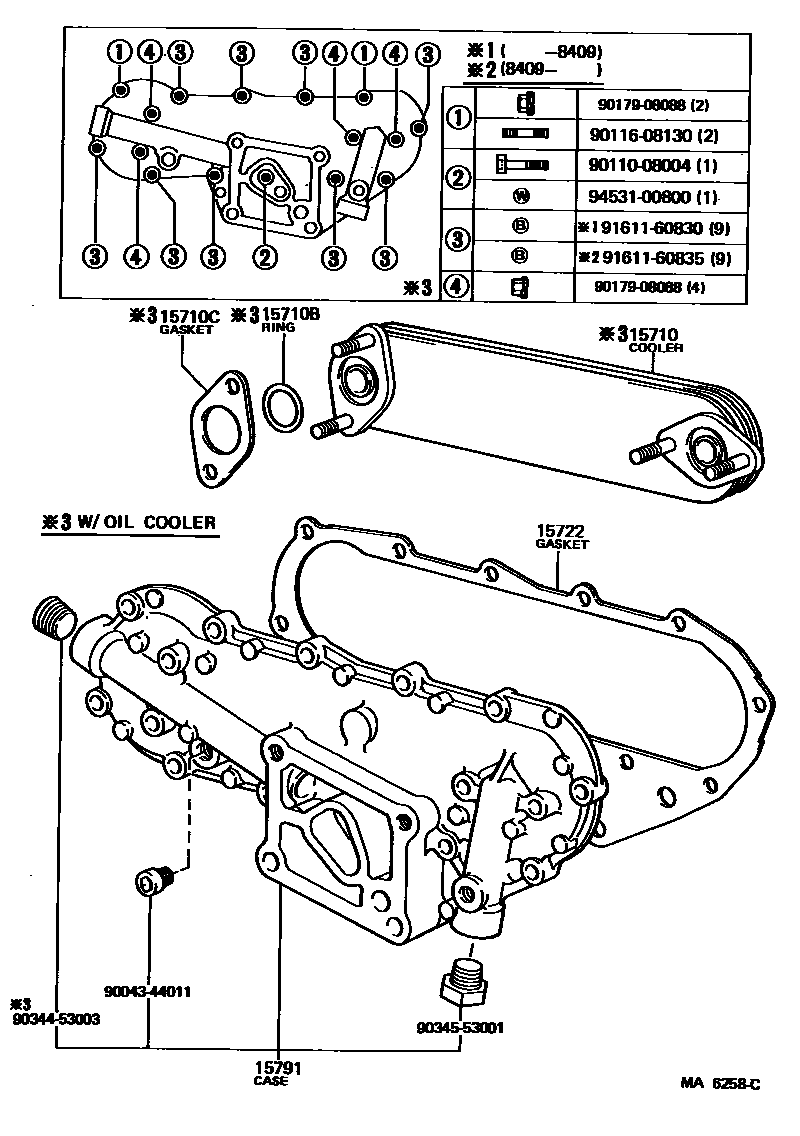

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-56030iB..BJ40,43198008-198408

sub15710-56031

main15710-56031iB..BJ40,43198408-198410

main15710-56040i3B..BJ42,45,46198008-198408

sub15710-56041

main15710-56041i3B..BJ42,45,46198408-198410

main15710-61010i2F..FJ4#..GEN198008-198604

main15710-68010i2H..HJ47198008-198506

W/TWO CORES

main15710-68020i2H..HJ47..GEN198008-198411

W/THREE CORES

15710BRING, O(FOR OIL COOLER)

main90301-20001iB,3B..BJ4#198008-198410

main90301-21176i2H..HJ47198008-198506

15710CGASKET(FOR OIL COOLER)

main90430-18012i2F..FJ4#..GEN198008-198604

main90923-05014iB,3B..BJ4#198008-198410

sub90923-05018

15722GASKET, OIL COOLER

main15725-56010iB,3B..BJ4#198008-198403

sub15725-56011

main15725-56011iB,3B..BJ4#198403-198410

sub15725-56020

main90923-05013i2H..HJ47198008-198506

sub90923-05023

15791CASE, OIL COOLER

main15701-56010iB,3B..BJ4#198008-198403

sub15701-56011

main15701-56011iB,3B..BJ4#198403-198410

main15701-56020iB..BJ40,43198008-198403

W/O OIL COOLER

sub15701-56021

main15701-56021iB..BJ40,43198403-198410

W/O OIL COOLER

9004344011

main90043-44011

9011008004

main90110-08004

9011608130

main90116-08130

9017908088

main90179-08088

9034453003

main90344-53003

9034553001

main90345-53001

9161160830

main91611-60830

9161160835

main91611-60835

9453100800

main94531-00800

14 parts on this diagram · 3 diagrams in section
