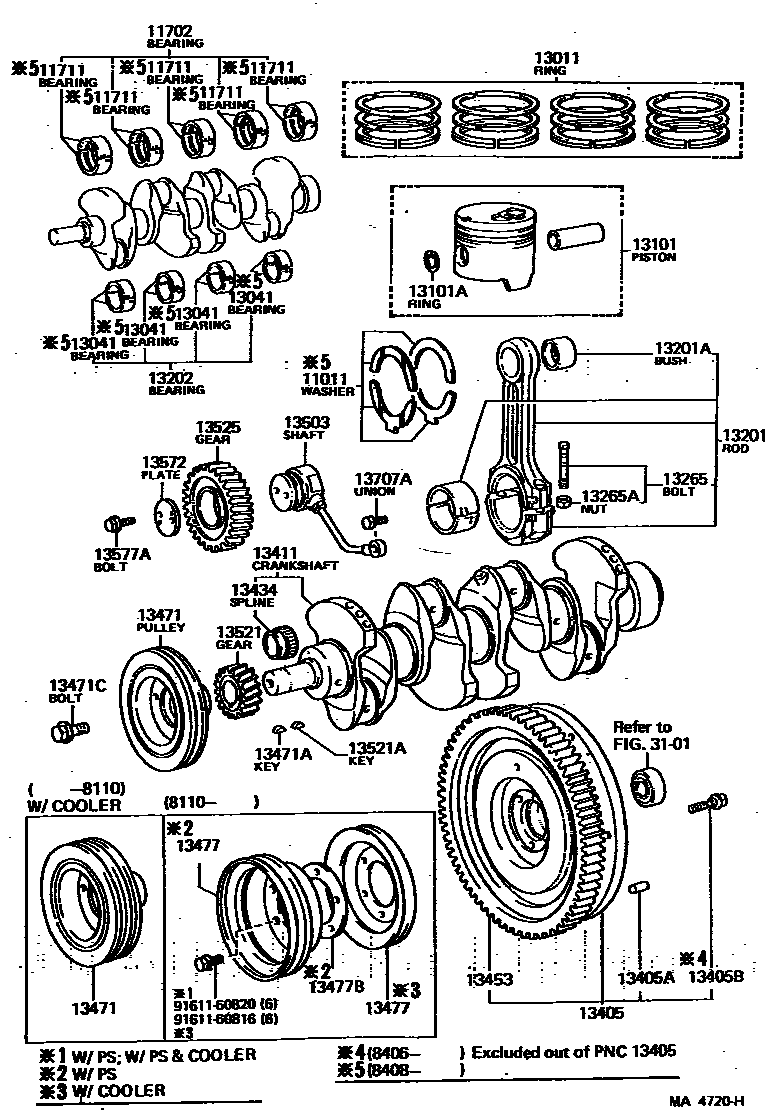

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
STD,STD
STD
REP,STD #1
U/S 0.05
REP,STD #2
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.75
U/S 0.75,U/S 0.75
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00
U/S 1.00,U/S 1.00
11711BEARING, CRANKSHAFT
MARK"1",MARK 1
MARK"2",MARK 2
13011RING SET, PISTON
STD
STD,STD
STD,STD
STD,STD
STD,STD
STD,VICTORIA SPEC
O/S 0.50,O/S 0.50
O/S 0.50,VICTORIA SPEC
O/S 0.50,O/S 0.50
O/S 1.00
O/S 1.00,O/S 1.00
O/S 1.00,*NSW
O/S 1.50,O/S 1.50
O/S 1.50,*NSW
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"1",MARK 1
MARK"2",MARK 2
13101PISTON SUB-ASSY, W/PIN
STD
STD,STD
STD,STD
STD,STD
STD,STD
STD,HONG KONG SPEC
STD
STD,STD
O/S 0.50,O/S 0.50
O/S 0.50,VICTORIA SPEC
O/S 0.50
O/S 0.50,O/S 0.50
O/S 1.00
O/S 1.00,O/S 1.00
O/S 1.00,*NSW
O/S 1.50,O/S 1.50
O/S 1.50,*NSW
13101ARING, HOLE SNAP(FOR PISTON PIN)
13202BEARING SET, CONNECTING ROD
REP,STD #1
STD
STD,STD
STD,STD
REP,STD #2
U/S 0.05,U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00
13265BOLT, CONNECTING ROD
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=22,OD=10
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
N=108
13471PULLEY, CRANKSHAFT
OD=155
*NSW
TRIPLE,OD=155&227,W/PS&COOLER
W PULLEY,OD=155&227,W/COOLER
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
W/PS
W/COOLER
W/COOLER
13477BPLATE, CRANKSHAFT PULLEY, NO.2
W/PS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=22
N=32
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=51
13572PLATE, IDLE GEAR THRUST
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
3101
9161160816
main91611-60816
9161160820
main91611-60820
33 parts on this diagram · 4 diagrams in section
