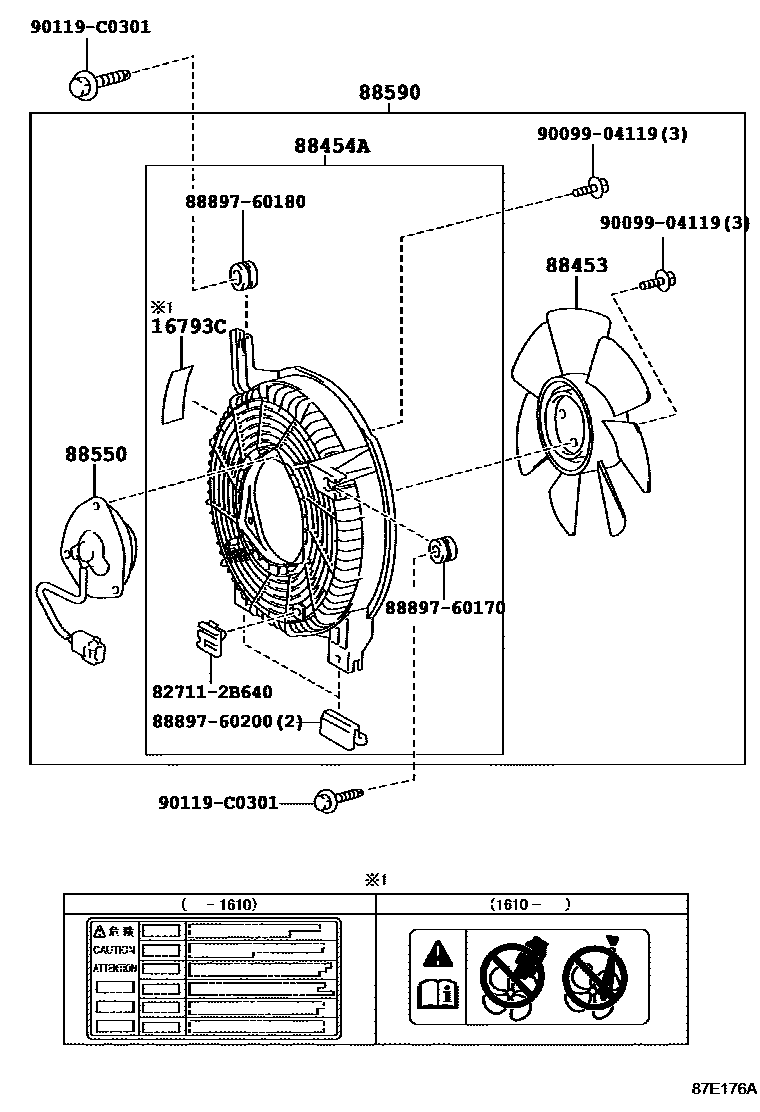

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W(CONDENSER FAN) 0003 1W(CONDENSER FAN) 0004 1W(CONDENSER FAN) 0005 1FRONT,W/O(REAR AIR CONDITIONE0006 1FRONT,W/O(REAR AIR CONDITIONE0007 1FRONT,W(REAR AIR CONDITIONER)0008 1FRONT,W(REAR AIR CONDITIONER)0009 1FRONT,W/O(REAR AIR CONDITIONE0010 1FRONT,W(REAR AIR CONDITIONER)0011 1FRONT,W/O(REAR AIR CONDITIONE0012 1FRONT,W(REAR AIR CONDITIONER)0013 1W/O(REAR AIR CONDITIONER) 0015 1W(REAR AIR CONDITIONER & COOL0018 1W(REAR *AIC) & W/O(COOL BOX) 0019 1O-RING

16793CLABEL, COOLING FAN CAUTION

main16793-31070i7GRFKS..GRJ152..VX201610-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main16793-31070i7GRFKS..GRJ152201711-202006

main88596-0G010i7GRFKS..GRJ152..VX201311-201610

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main88596-0G010i1GRFE..GRJ150201005-201311

88453FAN, COOLING (FOR CONDENSER)

main88453-0G010iGRJ150..VX201311-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main88453-0G010iGRJ150201005-202006

88454ASHROUD, FAN

main88454-0G010iGRJ152..VX201311-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main88454-0G010iGRJ150201005-202006

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-34010iGRJ150201005-202006

main88550-34010iGRJ150..VX201311-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

88590BLOWER ASSY, W/SHROUD

main88590-0G020iGRJ152..VX201311-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main88590-0G020iGRJ152201005-202006

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8889760170VALVE, COOLER MAGNET

main88897-60170

8889760180VALVE, COOLER MAGNET

main88897-60180

8889760200VALVE, COOLER MAGNET

main88897-60200

9009904119

main90099-04119

90119C0301

main90119-C0301

11 parts on this diagram · 15 diagrams in section
