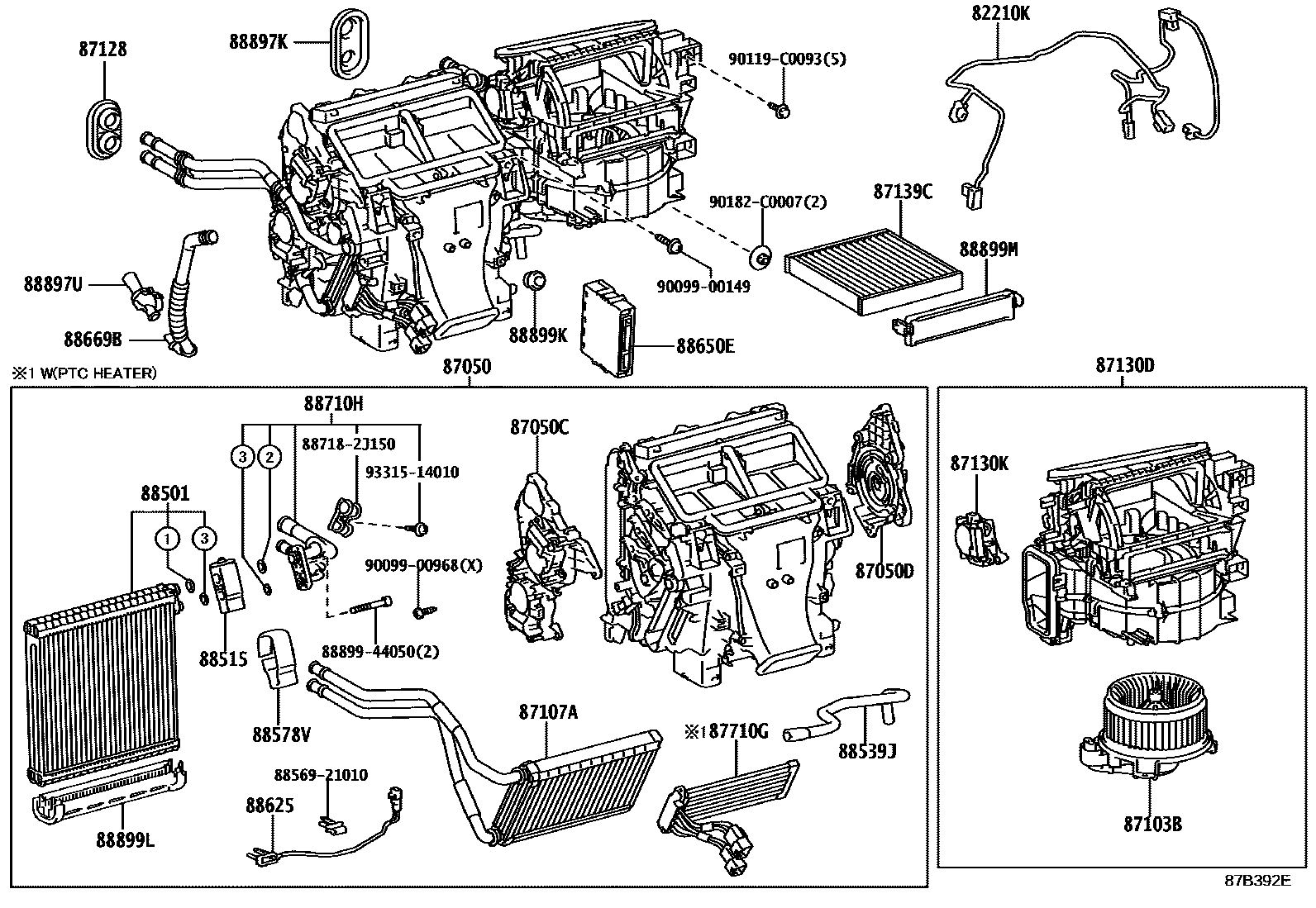

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0003 1FRONT AUTO AIR CONDITIONER 0004 1FRONT MANUAL AIR CONDITIONER 0005 1REAR 0008 1COOL BOX 0011 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0G010iGRJ15#,TRJ15#201005-201511

sub82212-0G011

main82212-0G011iGRJ152,TRJ152201512-202006

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0G020iGRJ150201005-201311

main87050-0G020iGRJ150..VX201311-201509

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main87050-0G030iGRJ150..TX201311-201509

main87050-0G040iTRJ152201509-201711

main87050-0G060iGRJ152201509-202006

main87050-60570iTRJ150201503-201509

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-60220iGRJ152201005-202006

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-60230iGRJ152201005-202006

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0G010iGRJ150201005-202006

main87103-60400iTRJ150201503-201509

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0G010iGRJ152,TRJ152201005-202006

main87107-60430iTRJ150201503-201509

87128GROMMET, HEATER

main87128-0N010iGRJ150201209-202006

main87128-35020iGRJ150201005-201208

87130DBLOWER ASSY

main87130-0G020iGRJ150201005-201203

sub87130-0G021

main87130-0G021iGRJ150201204-202006

main87130-60611iTRJ150201503-201509

sub87130-60680

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-33270iGRJ150201005-202006

87139CFILTER, CLEAN AIR

main87139-0G040iGRJ150201005-201311

MICRO DUST FILTER

sub87139-0R020

main87139-0R020iGRJ15#,TRJ15#201311-202006

MICRO DUST FILTER

87710GQUICK HEATER ASSY

main87710-60030iGRJ150..VX201311-201509

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main87710-60030iGRJ150201005-201311

main87710-60050iGRJ152201509-202006

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0G020iGRJ150201005-201206

sub88501-0G021

main88501-0G021iGRJ152,TRJ152201207-202006

main88501-60421iTRJ150201503-201509

88515VALVE, COOLER EXPANSION

main88515-0G010iGRJ150201005-202006

main88515-60230iTRJ152201509-201711

main88515-60240iTRJ150201503-201509

sub88515-60290

88539JHOSE, DRAIN COOLER

main88539-0G020iGRJ150201005-202006

(L)

88578VPACKING, COOLING UNIT, NO.3

main88578-0G080iGRJ152,TRJ152201005-202006

main88578-60500iTRJ150201503-201509

88625THERMISTOR, COOLER, NO.1

main88620-0G040iGRJ150201005-202006

main88620-50020iTRJ150201503-201509

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-0G010iGRJ150,TRJ150..TX201311-201509

main88650-0G020iGRJ150..VX201311-201509

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main88650-0G030iTRJ152201509-201711

main88650-0G040iTRJ152..6FC201509-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL

main88650-0G070iGRJ152201711-202006

main88650-60F31iGRJ150201005-201006

sub88650-60F32

main88650-60F32iGRJ150201007-201208

main88650-60L00iGRJ150201208-201311

88669BHOSE, COOLER AIR

main88669-60050iGRJ150201005-202006

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0G140iGRJ150201005-201509

main88710-0G660iGRJ152,TRJ152201509-202006

main88710-60B70iTRJ150201503-201509

88897KGROMMET, (FOR COOLER PIPE)

main88897-0G190iGRJ150201209-202006

main88897-35020iGRJ150201005-201208

88897UPIPE, ASPIRATOR

main88897-32090iGRJ152201005-202006

88899KPLATE, COVER

main88899-3A010iGRJ150,TRJ150201005-202006

88899LPARTS, COOLING UNIT

main88899-0G040iGRJ150201005-201509

main88899-60440iTRJ150201503-201509

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06070iGRJ150201005-202006

8856921010CLAMP (FOR COOLER RELAY)

main88569-21010

887182J150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J150

8889944050COVER, EVAPORATOR

main88899-44050

9009900149

main90099-00149

9009900968

main90099-00968

90119C0093

main90119-C0093

90182C0007

main90182-C0007

9331514010

main93315-14010

32 parts on this diagram · 6 diagrams in section
